51 11 792 Replacing shock absorber for front left bumper

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

(bumper removed)

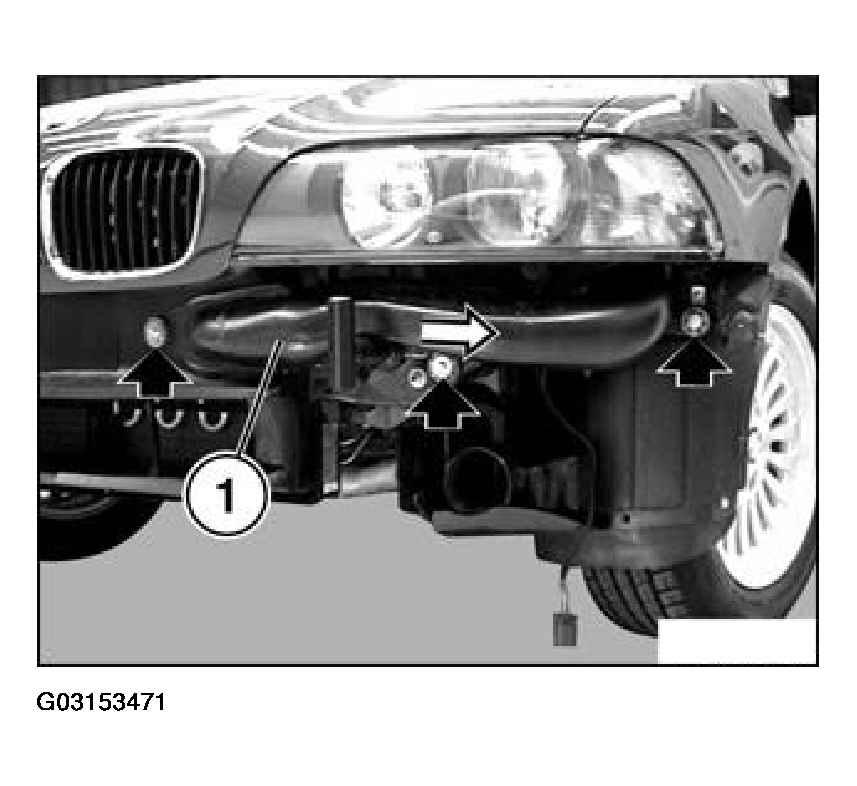

Unfasten screws and pull air guide (1) for intake filter housing outwards to remove.

Fig 1: Unfastening Screws And Pulling Air Guide For Intake Filter Housing Outwards To Remove

Courtesy of BMW OF NORTH AMERICA, INC.

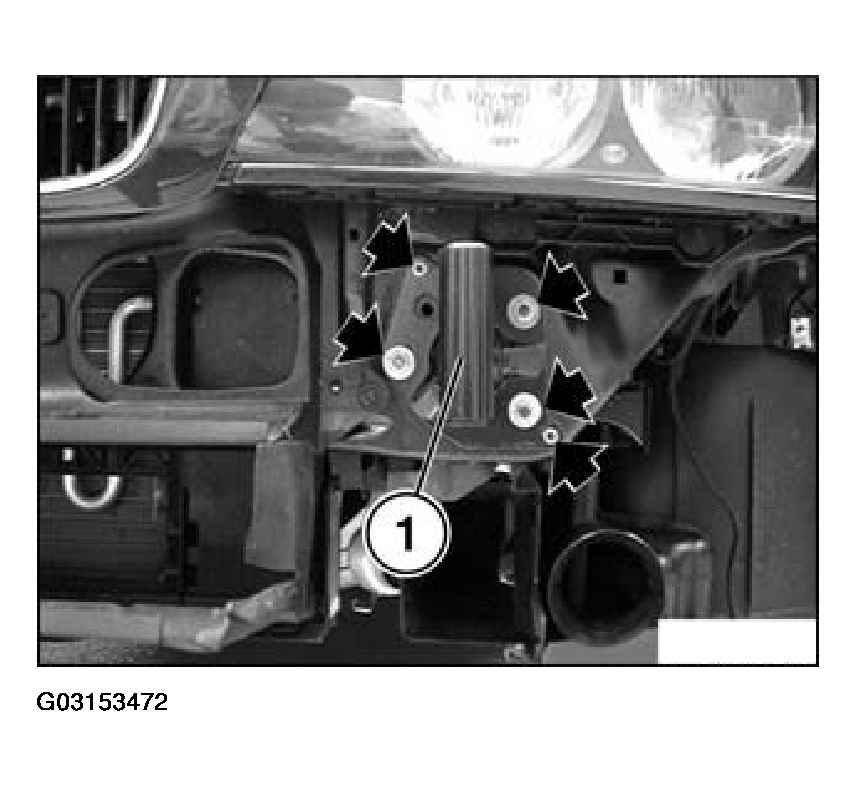

Unfasten screws and remove shock absorber (1).

Fig 2: Unfastening Screws And Removing Shock Absorber

Courtesy of BMW OF NORTH AMERICA, INC.
