51 11 701 Replacing left or right bracket for front bumper

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

(bumper removed)

Installation:

If necessary, mark position of bracket on body.

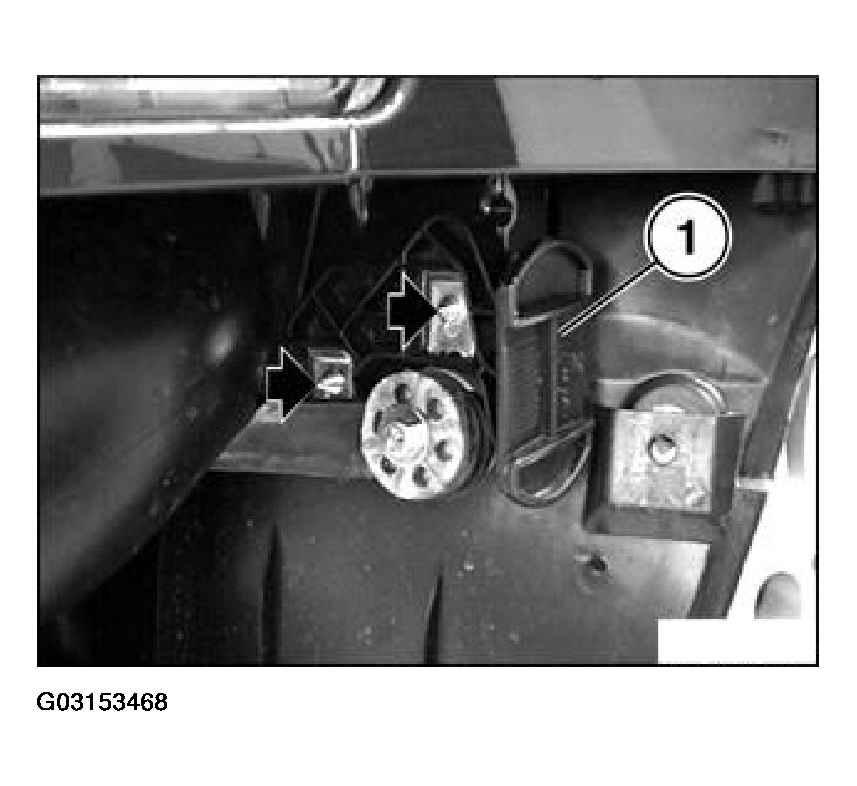

Unfasten screws from wheel arch and remove bracket (1).

Fig 1: Unfastening Screws From Wheel Arch And Remove Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

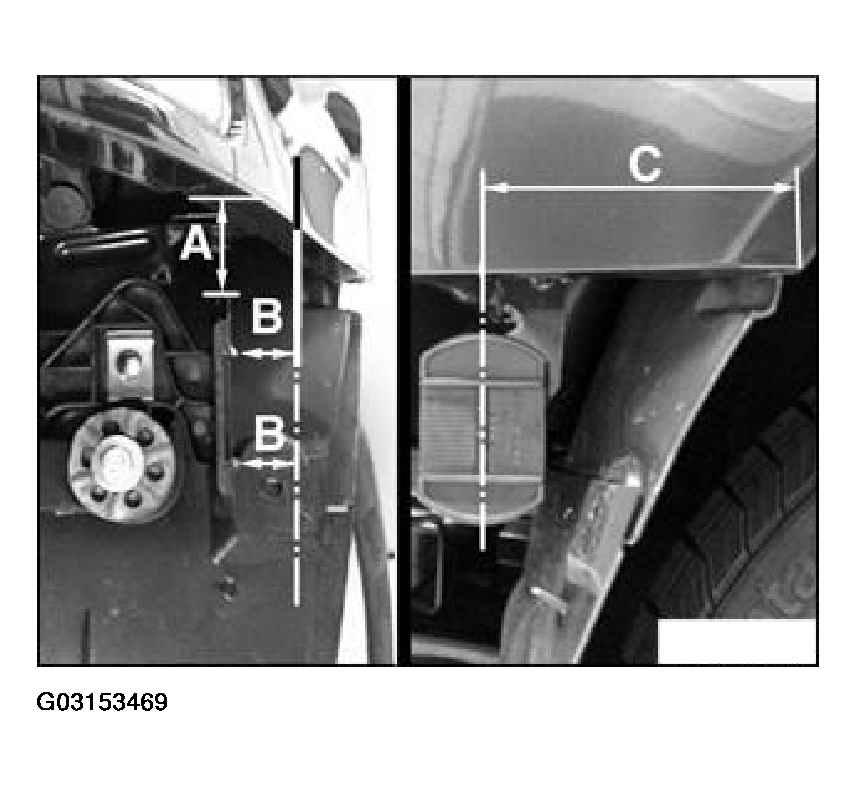

When exchanging bracket, adjust dimensions (A) and (B).

Dimension (B) is measured vertically downwards at distance (C) from side panel.

approx. 18 mm
approx. 32 mm
approx. 115 mm

Fig 2: Adjusting Dimensions
Courtesy of BMW OF NORTH AMERICA, INC.

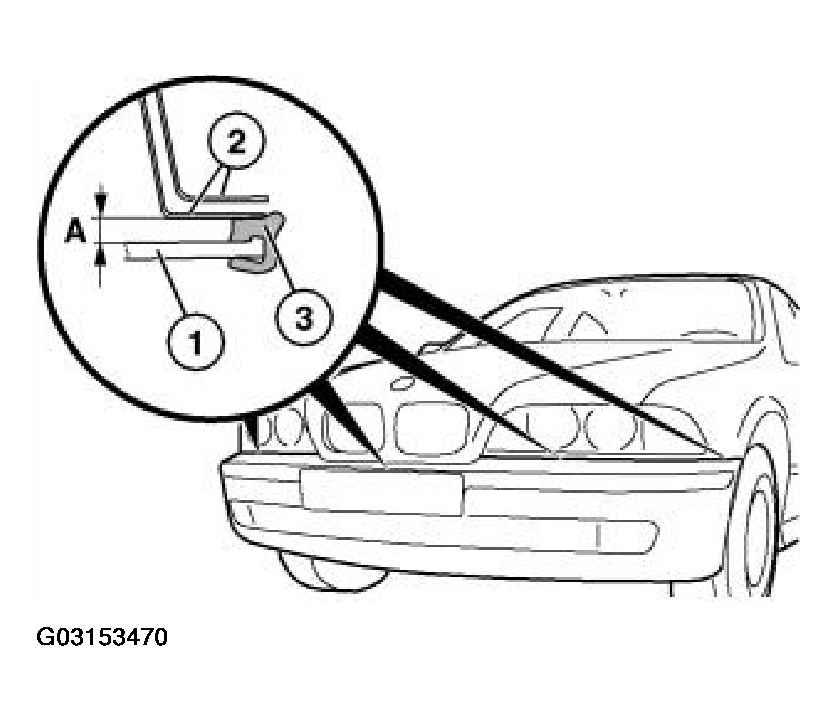

Ideal adjustment:

Gap (A) should be uniform down full length between bumper and aperture in body.

Dimension (A) = 5 +/- 1 mm

Fig 3: Measuring Dimension

Courtesy of BMW OF NORTH AMERICA, INC.
