51 11 170 Replacing body molding for left or right bumper

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Lever out body molding with special tool 00 9 321 (fishbone) first at front and then at side.

Version without Park Distance Control (PDC):

Remove body molding.

Version with Park Distance Control (PDC):

Disconnect plug connections on ultrasonic sensors and remove body molding.

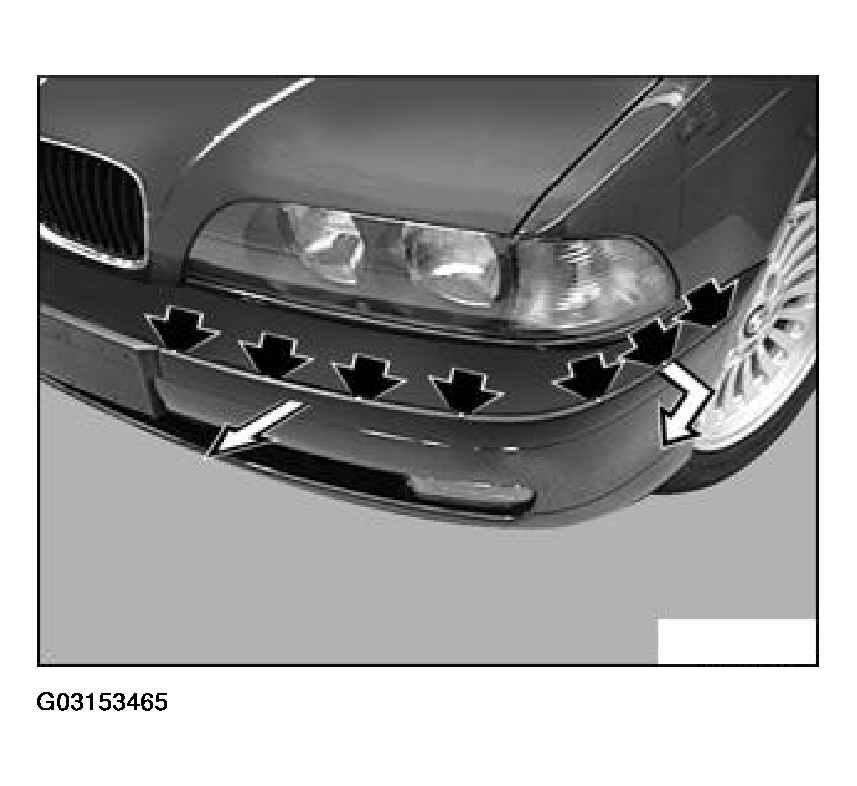

Fig 1: Removing Body Molding

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, lever chrome strip (1) out of clips (2) of body molding and remove.

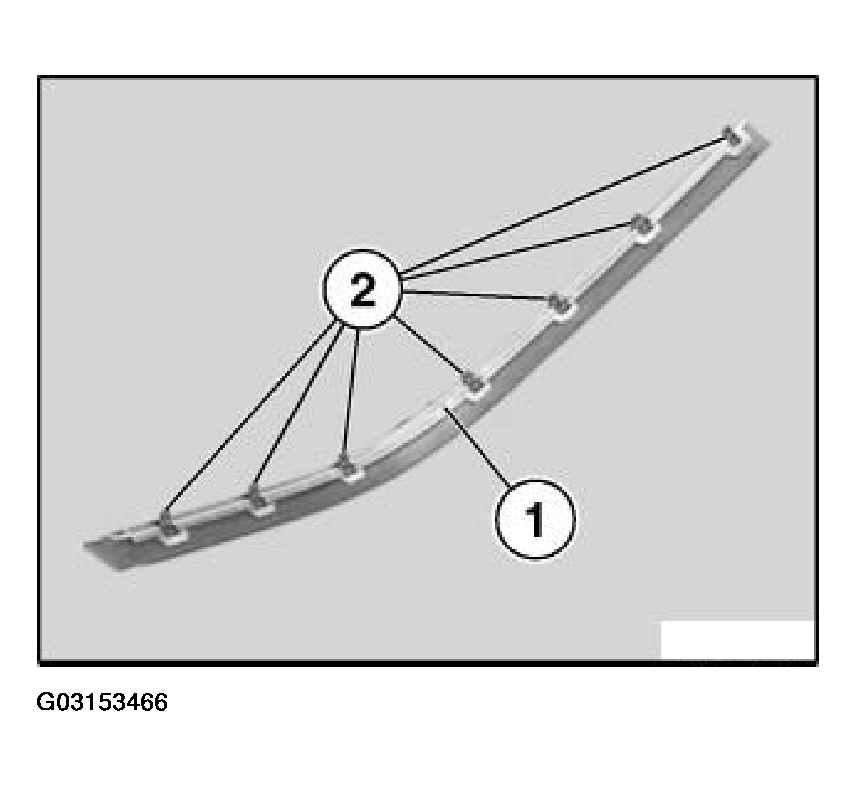

Fig 2: Removing Lever Chrome Strip Out Of Clips Of Body Molding

Courtesy of BMW OF NORTH AMERICA, INC.

Version with PDC:

Lever out catches (1) and remove ultrasonic sensors (2).

Remove catches (3) and mounts (4) from body molding (5).

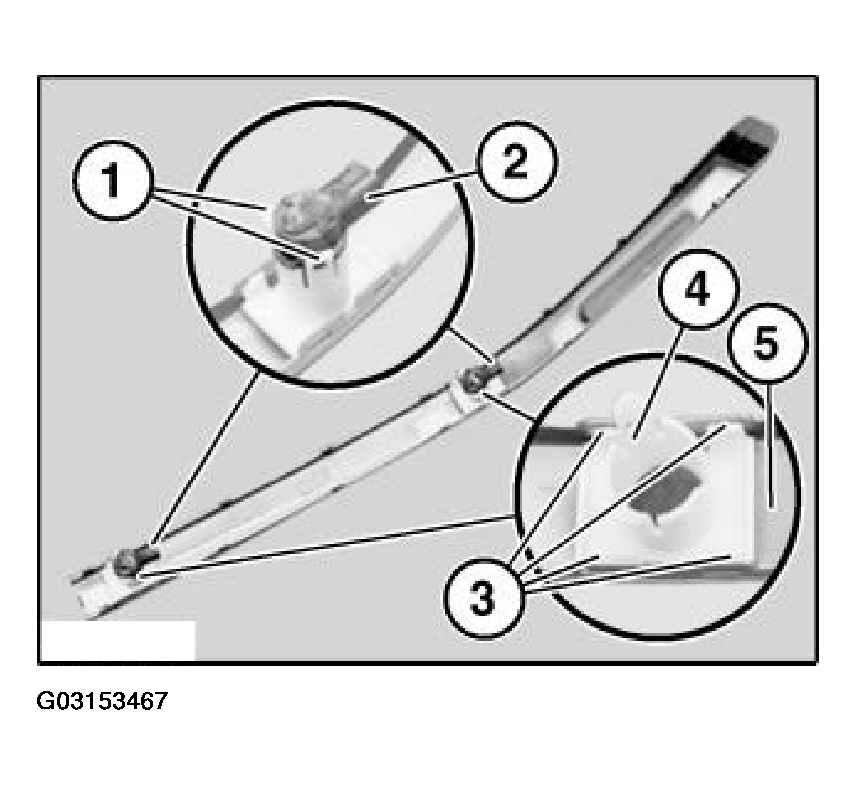

Fig 3: Removing Catches And Mounts From Body Molding

Courtesy of BMW OF NORTH AMERICA, INC.
