51 47 030 Removing and installing / replacing the rear (inside) left or right entrance cover strip

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Remove rear seat,

refer to REAR SEAT, NORMAL .

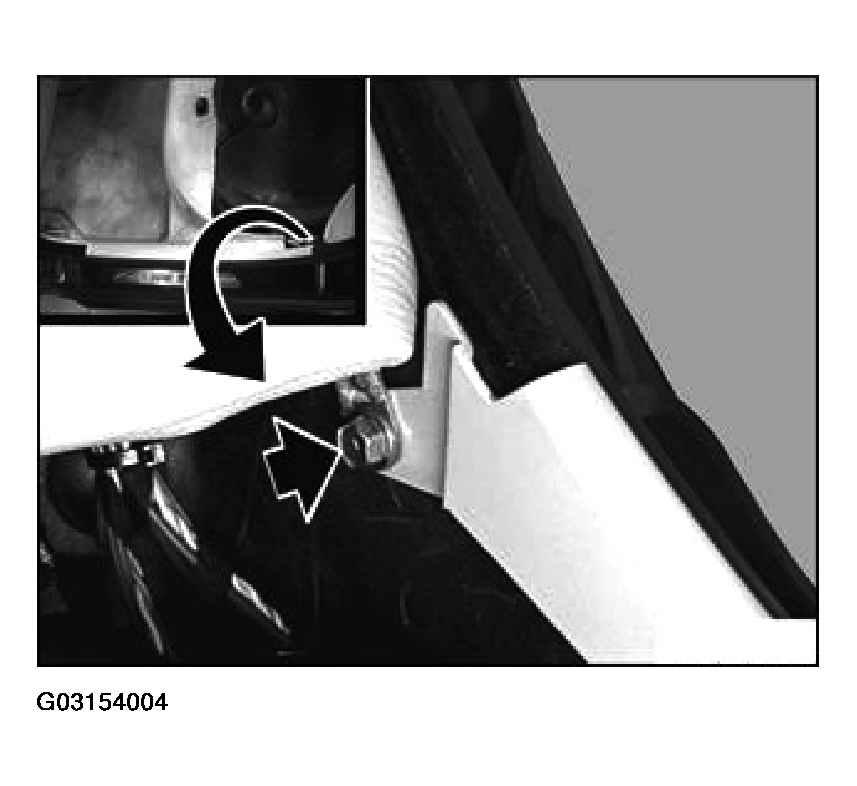

Unscrew screw.

Fig 1: Removing Rear Seat And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

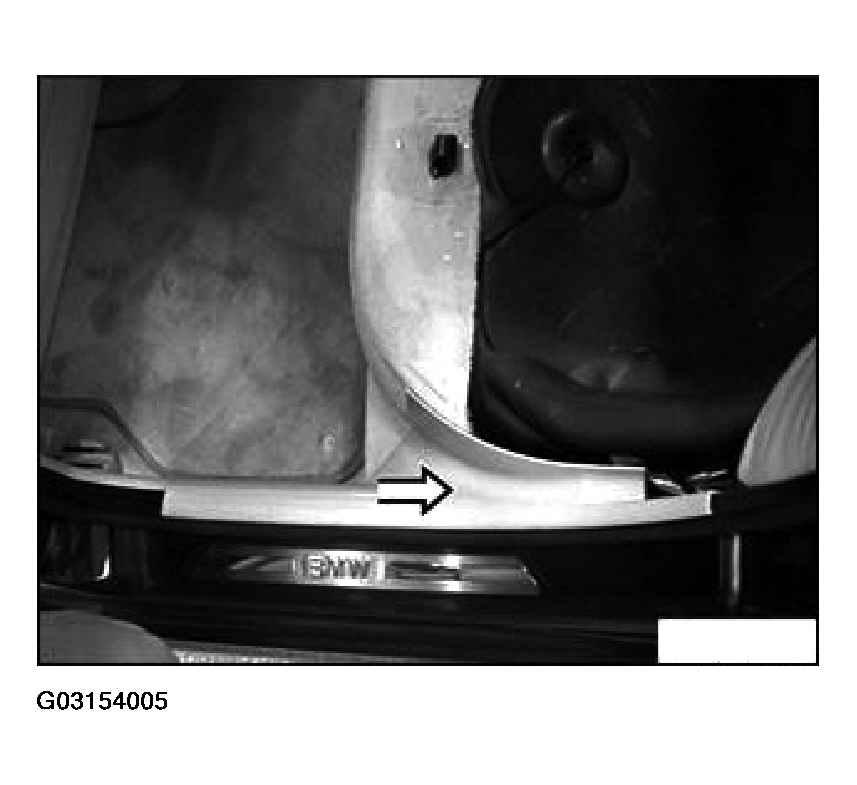

Slide rocker panel strip backwards out of clips and remove.

Lever clips with pliers (head of pliers surface-ground) out of base plate.

Fig 2: Removing Slide Rocker Panel Strip Backwards Out Of Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

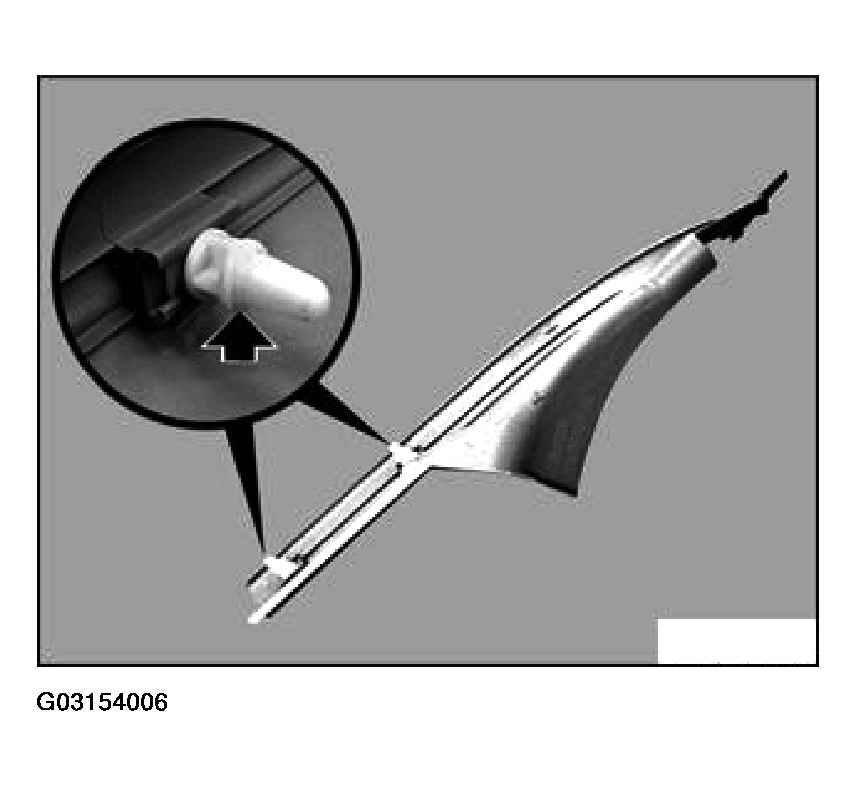

If necessary, replace damaged clips.

Fig 3: Replacing Damaged Clips

Courtesy of BMW OF NORTH AMERICA, INC.
