51 37 000 Removing and installing complete power window lifter from rear left and right sides

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Remove rear door window,

refer to 51 34 171 REPLACING DOOR WINDOW GLASS, REAR LEFT OR RIGHT (PROTECTION)

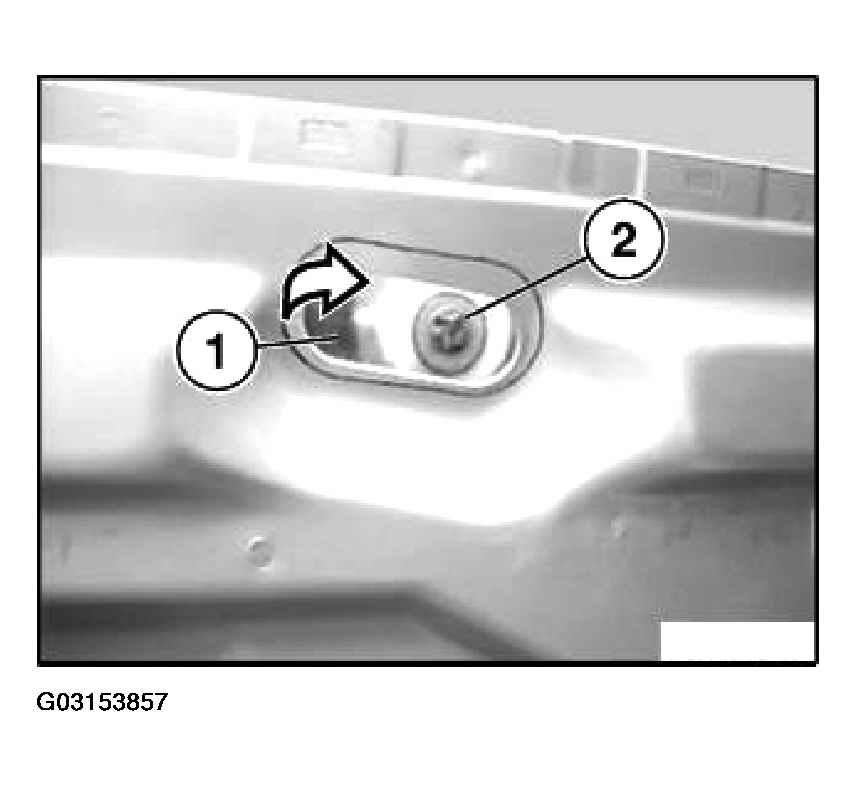

Detach sealing sheet (1) and release screw (2).

Installation

  1. Fit new sealing sheet (1) (leakage).
Fig 1: Detaching Sealing Sheet (1) And Releasing Screw (2)
G03153857Courtesy of BMW OF NORTH AMERICA, INC.

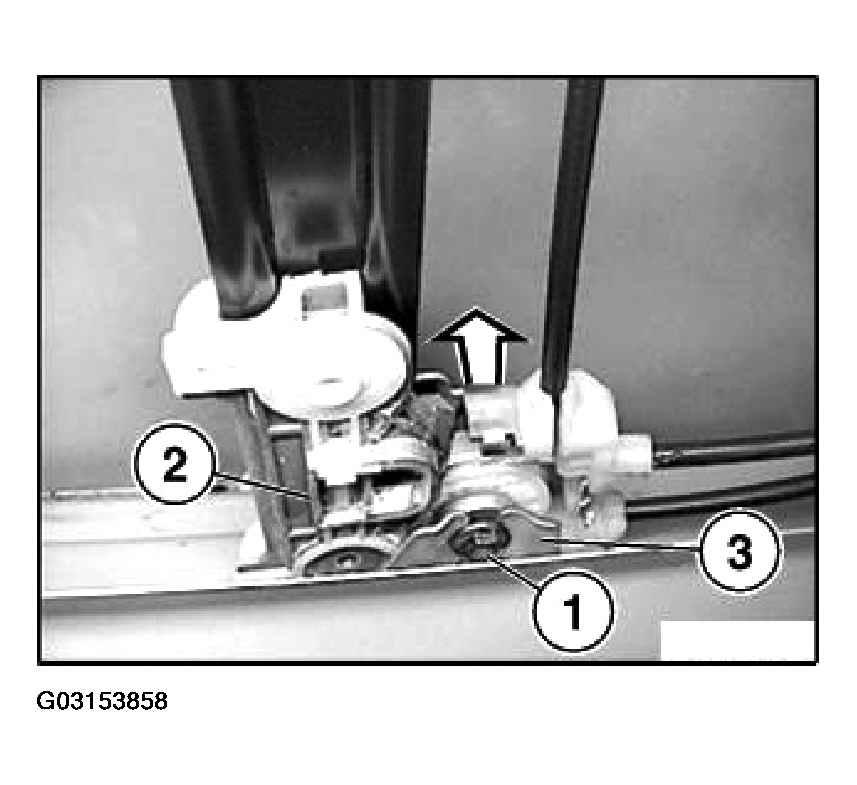

Release screw (1) and lift power window (2) out of mount (3).

Fig 2: Releasing Screw And Lifting Power Window Out Of Mount
G03153858Courtesy of BMW OF NORTH AMERICA, INC.

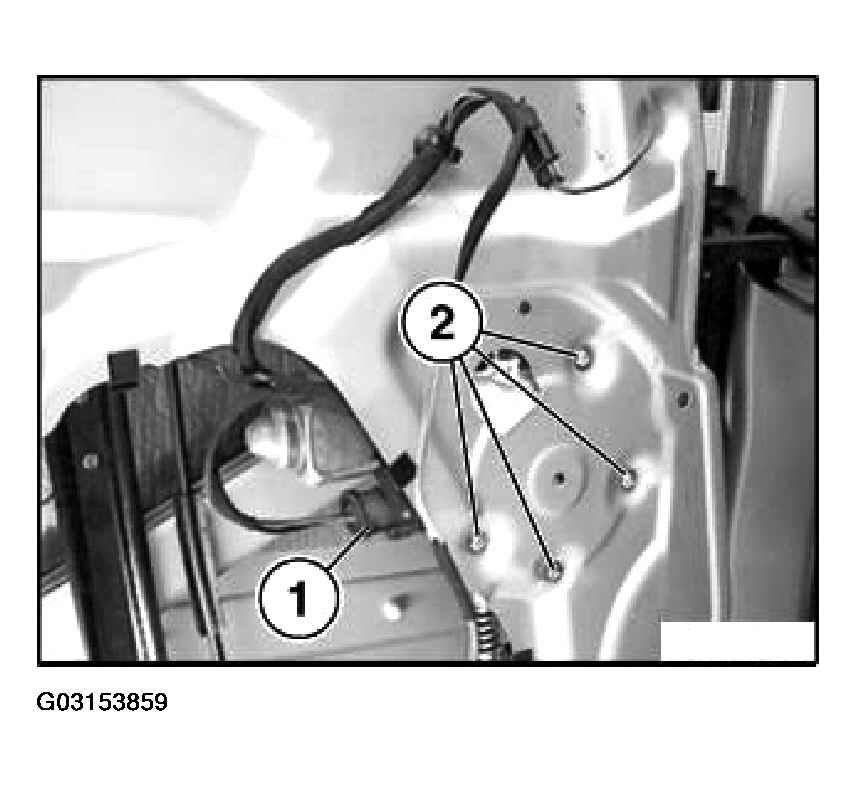

Unlock connector (1) and remove. Unfasten screws (2).

Fig 3: Unlocking Connector And Remove
G03153859Courtesy of BMW OF NORTH AMERICA, INC.

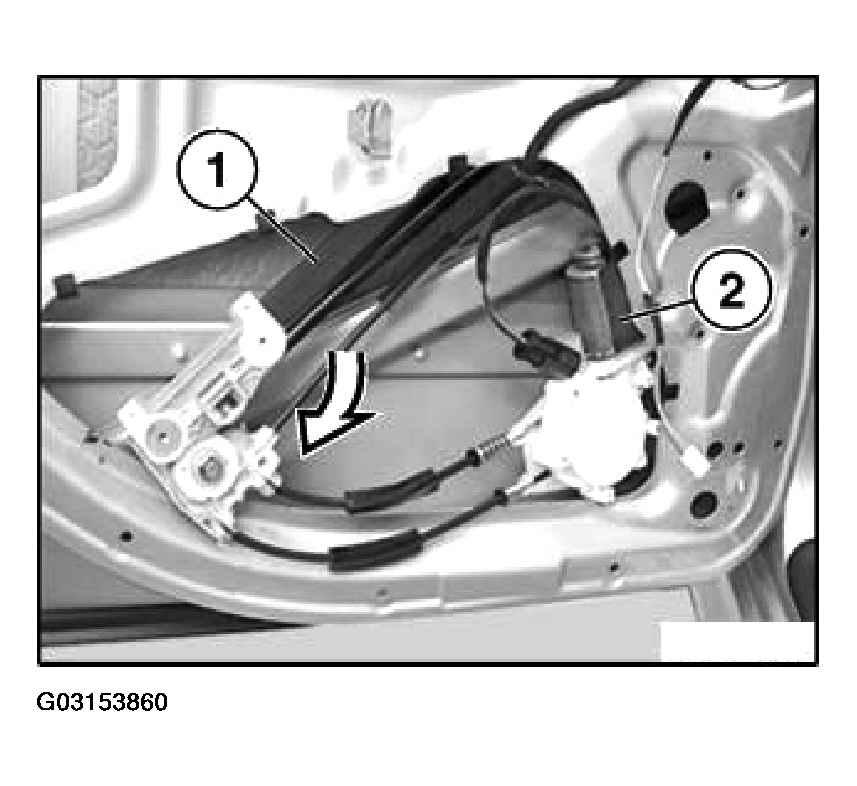

Remove power window lifter (1) with flat motor (2) from rear door.

Fig 4: Removing Power Window Lifter With Flat Motor From Rear Door
G03153860Courtesy of BMW OF NORTH AMERICA, INC.
