36 10 713 Checking one road wheel on balancing machine for face and radial runout (wheel removed)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

36 1 030
36 1 031
36 1 032
36 1 033
36 1 034
36 1 035
36 1 036

Remove wheel.

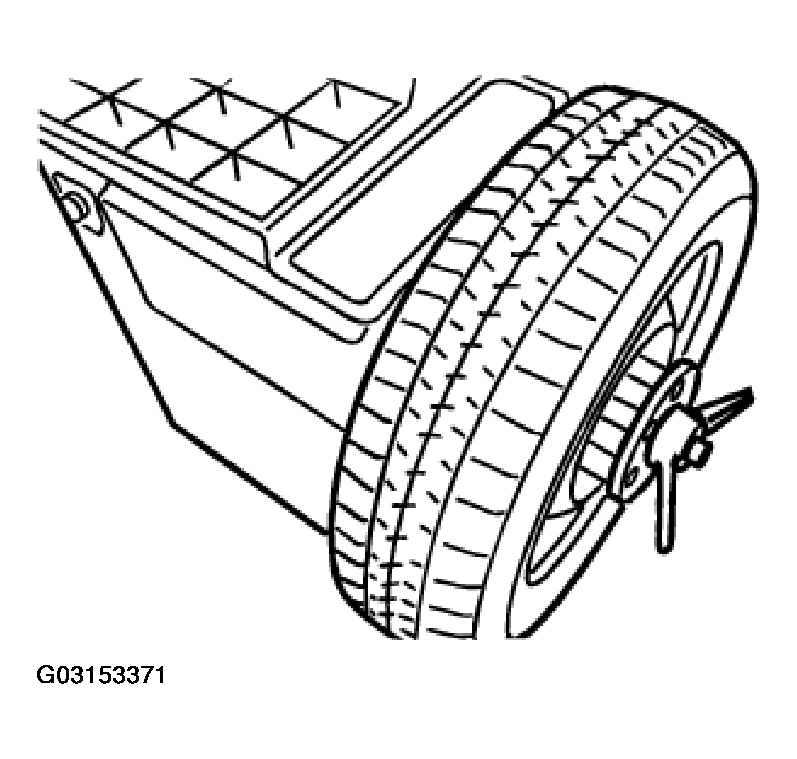

Mount wheel in balancing machine.

In order to avoid transformation errors, the wheel must be mounted on the balancing machine in the same manner as subsequently mounted on the car (e.g. valve facing down).

Fig 1: Mounting Wheel In Balancing Machine

Courtesy of BMW OF NORTH AMERICA, INC.

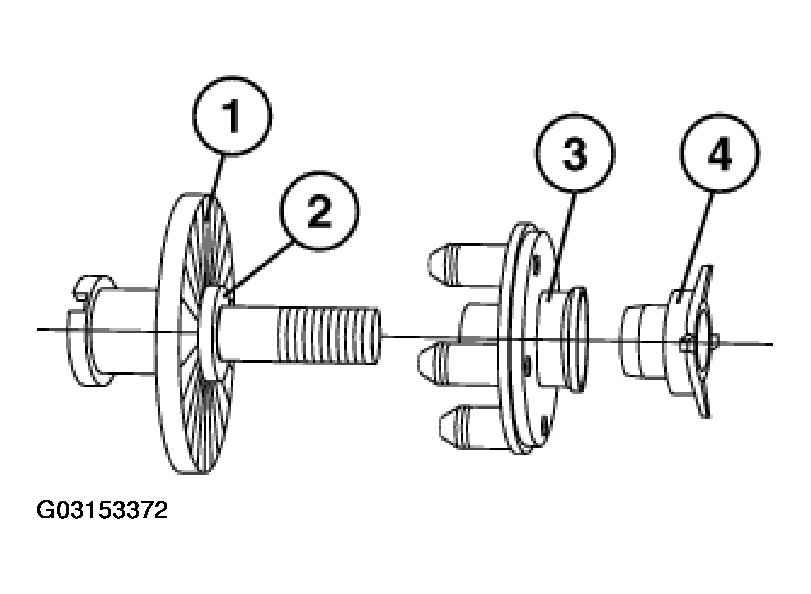

Use suitable wheel center supplied with corresponding balancing machine.

Basic flange
Center
Type flange
Clamping nut

Fig 2: Identifying Suitable Wheel Center Supplied With Corresponding Balancing Machine

Courtesy of BMW OF NORTH AMERICA, INC.

Use special tool 36 1 030 for testing.

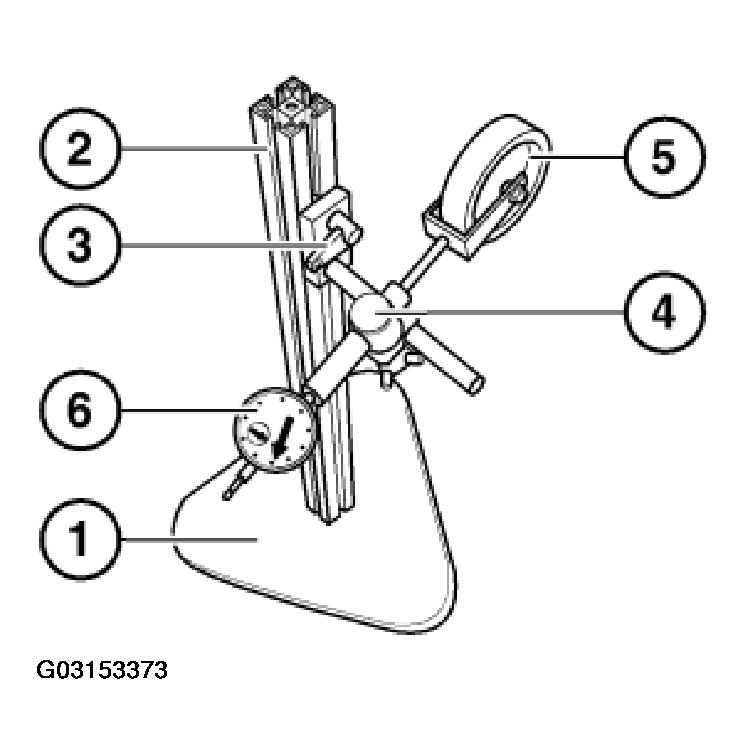

Special tool 36 1 030 consists of:

Stand 36 1 031
Post with clamp 36 1 032
Holder with clamp 36 1 033
Clamp 36 1 034
Measuring roller 36 1 035
Dial gauge 36 1 036

Fig 3: Identifying Special Tool
Courtesy of BMW OF NORTH AMERICA, INC.

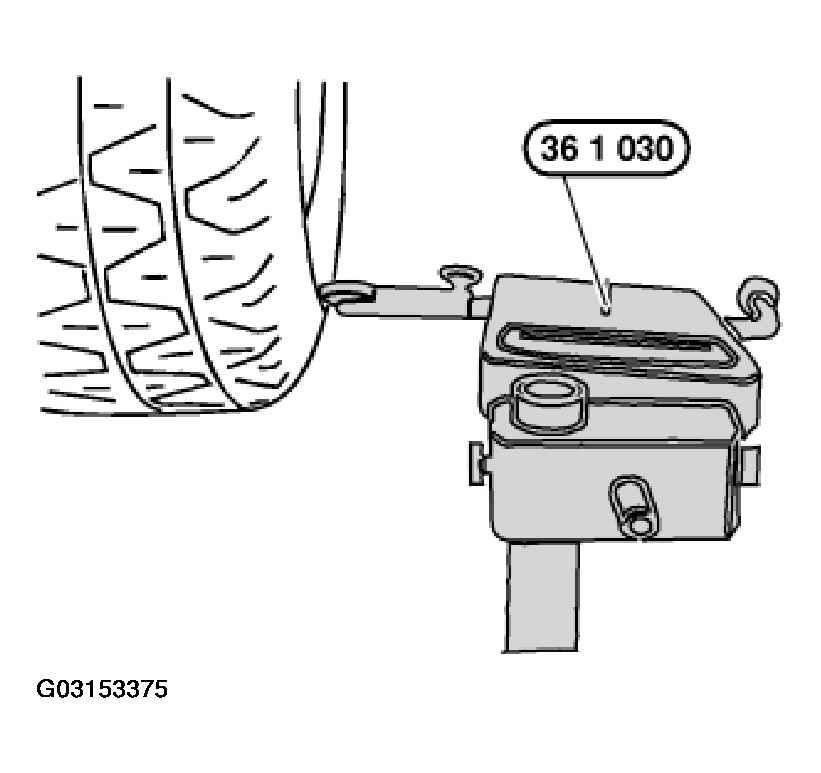

Position special tool 36 1 030 on tire tread.

Turn wheel by hand and measure max. tire radial runout, refer to WHEEL AND TIRES - TECHNICAL DATA - 540i (E39) .

NOTE: Measuring device must be vertical to tire tread.

Fig 4: Positioning Special Tool On Tire Tread

Courtesy of BMW OF NORTH AMERICA, INC.

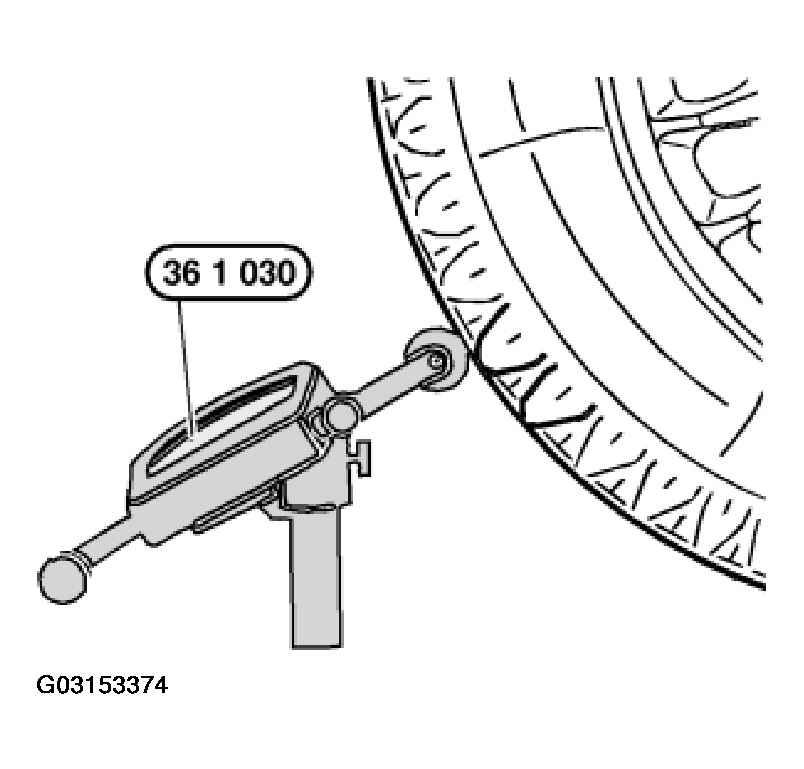

Position special tool 36 1 030 on tire sidewall.

Turn wheel by hand and measure max. tire face runout, refer to WHEEL AND TIRES - TECHNICAL DATA - 540i (E39) .

NOTE: Measuring device must be vertical to tire sidewall.

Never measure on printed text on tire!

If necessary, check disk wheel (rim) for radial and face runout.

Fig 5: Positioning Special Tool On Tire Sidewall

Courtesy of BMW OF NORTH AMERICA, INC.
