36 10 209 Checking front and rear wheel for face and radial runout

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

36 1 030

IMPORTANT: Wheel bearing must be OK

Lift vehicle.

Check wheel with special tool 36 1 030 (measuring fixture) for lateral runout.

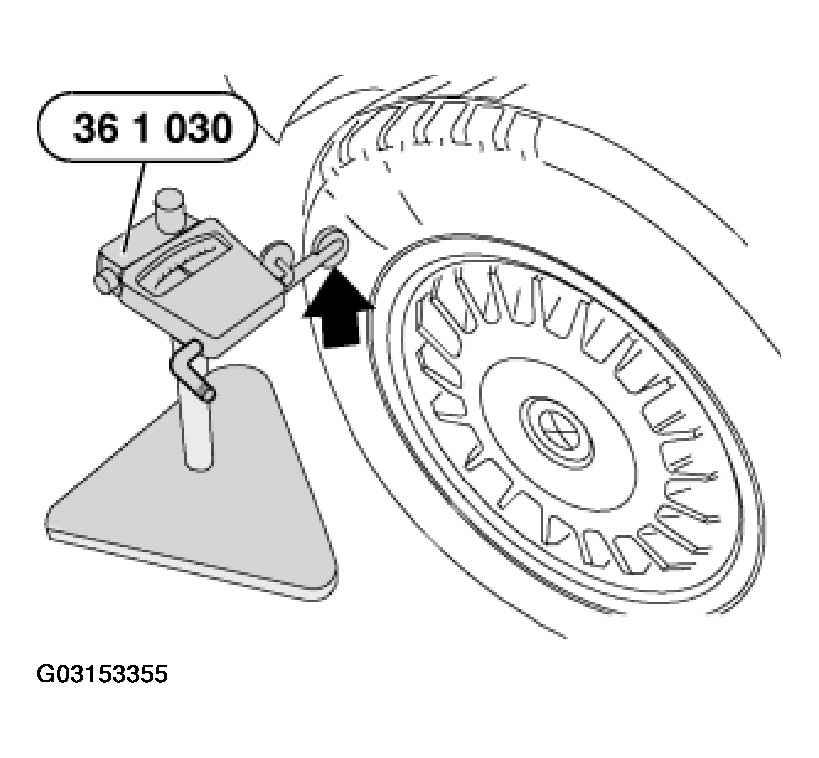

Fig 1: Checking Wheel With Special Tool (Measuring Fixture) For Lateral Runout

G03153355

Courtesy of BMW OF NORTH AMERICA, INC.

Check wheel with special tool 36 1 030 (measuring fixture) for radial runout.

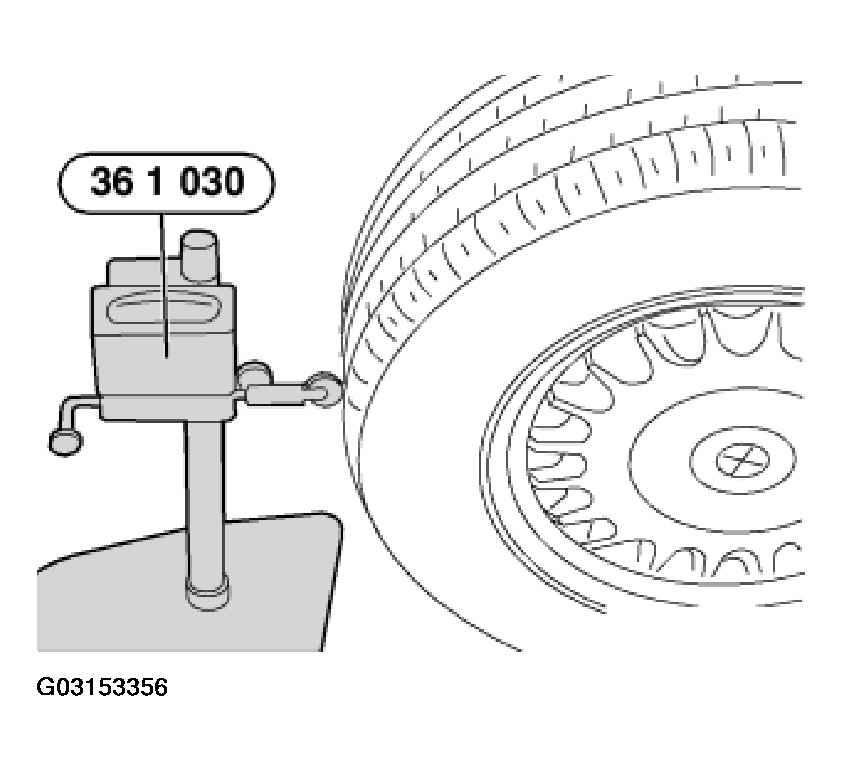

Fig 2: Checking Wheel With Special Tool (Measuring Fixture) For Radial Runout

G03153356

Courtesy of BMW OF NORTH AMERICA, INC.

If applicable, remove balance weights.

Check lateral runout of rim with special tool 36 1 030 (measuring fixture).

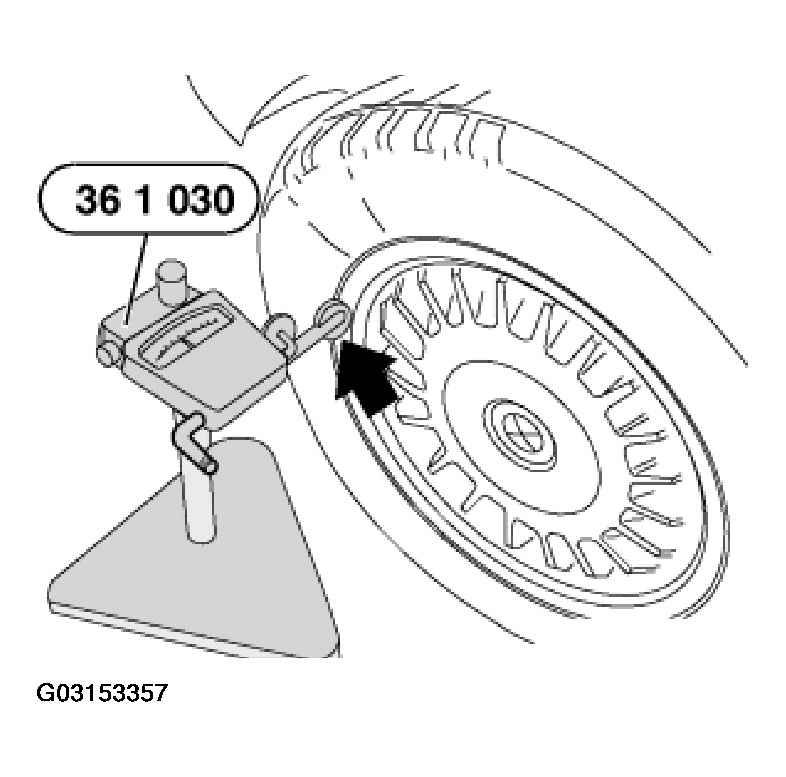

Fig 3: Checking Lateral Runout Of Rim With Special Tool (Measuring Fixture)

G03153357

Courtesy of BMW OF NORTH AMERICA, INC.

Check radial runout of rim with special tool 36 1 030 (measuring fixture).

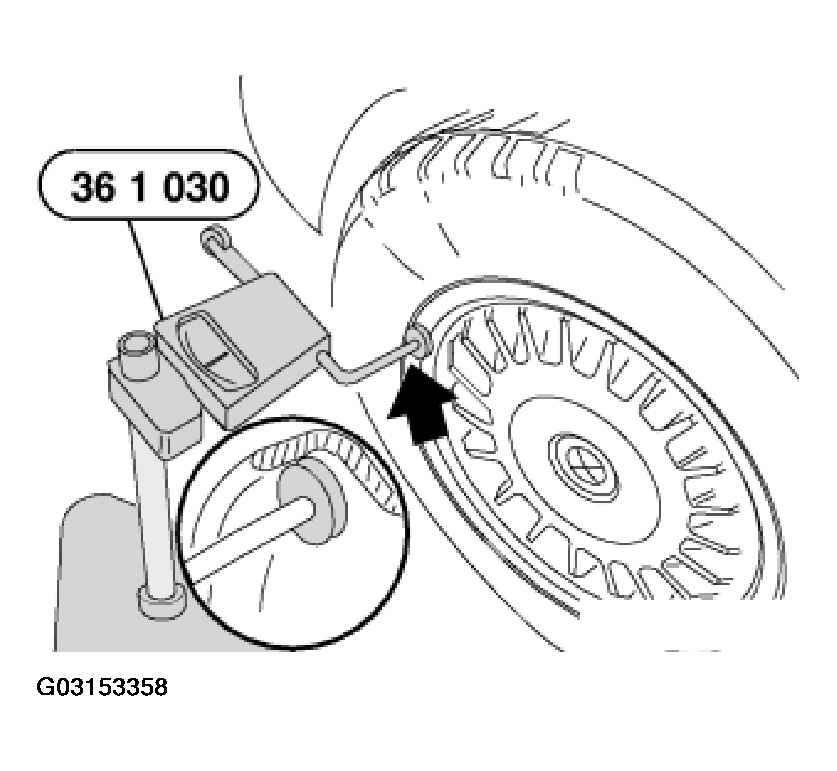

Fig 4: Checking Radial Runout Of Rim With Special Tool (Measuring Fixture)

G03153358

Courtesy of BMW OF NORTH AMERICA, INC.
