36 11 522 Removing and installing/replacing front receiving antenna for RDC
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Remove wheel,
refer to 36 10 300 REMOVING OR INSTALLING FRONT OR REAR WHEEL
Remove wheel arch trim.
refer to 36 10 300 REMOVING OR INSTALLING FRONT OR REAR WHEEL
Remove wheel arch trim.

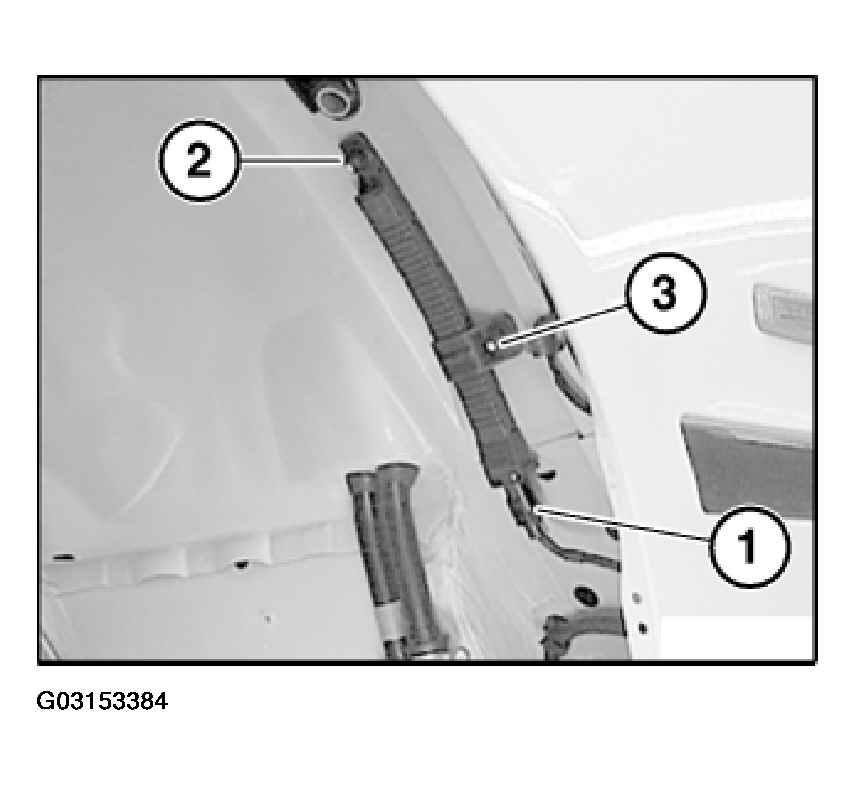

Unfasten plug connection (1) and disconnect.
Release hexagon nuts (2/3) and remove reception antenna.
