Manual transmission

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Accelerator pedal on idle speed stop.
Throttle valve in idling position.
Adjust Bowden cable with adjusting screw (2) until there is no clearance.

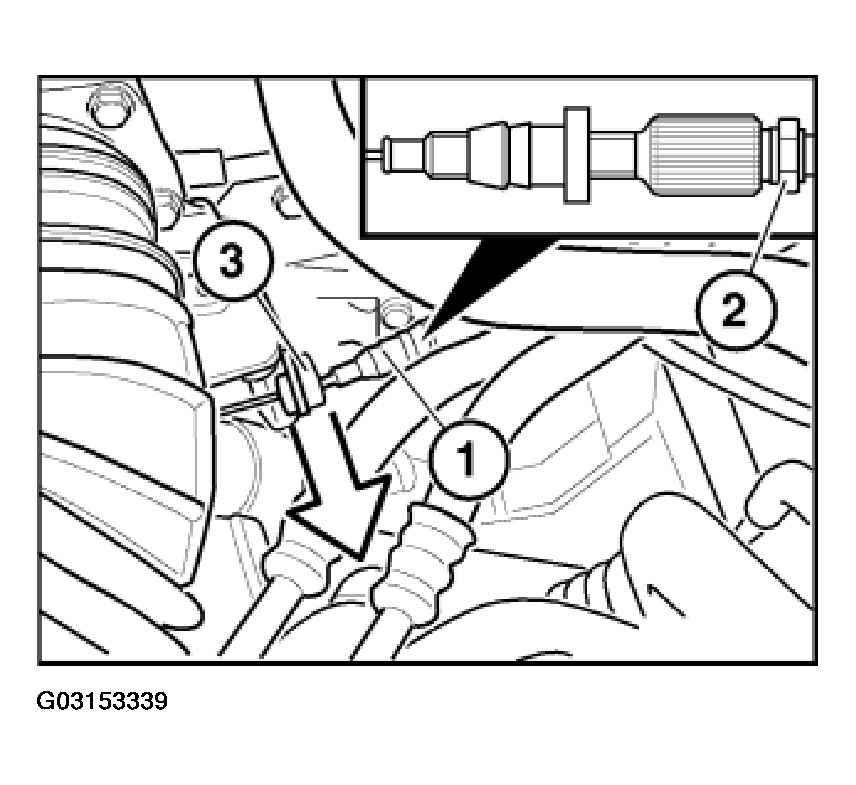

Fig 1: Adjusting Bowden Cable With Adjusting Screw
Courtesy of BMW OF NORTH AMERICA, INC.
Adjust adjusting screw (C) on full throttle stop of pedal until there is still clearance of 0.5 mm on throttle valve when pedal is in full throttle position. (Untighten adjusting screw 1.5 complete turns - corresponds to 0.5 mm air).
Lock full-throttle stop with nut.

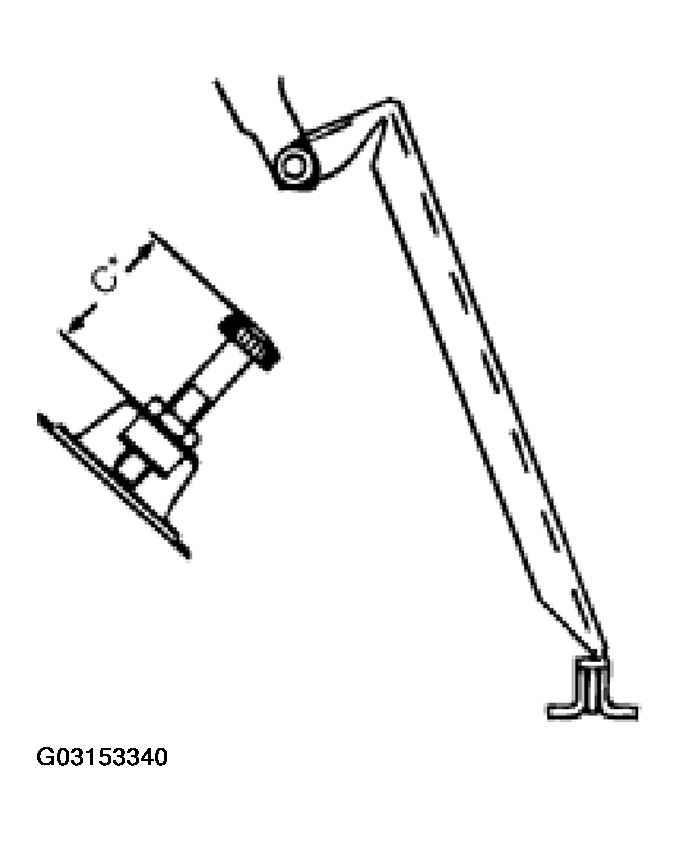

Fig 2: Adjusting Screw On Full Throttle Stop Of Pedal
Courtesy of BMW OF NORTH AMERICA, INC.

Automatic transmission:

Perform steps 1- 3 as shown above for manual transmission

Adjust full throttle detent until, in kick-down setting (full throttle detent depressed), there is still 0.5 mm of clearance at full throttle stop on throttle valve.

(Untighten full throttle detent 1.5 complete turns - corresponds to 0.5 mm air).

Lock kick-down detent with nut.

Depress pedal as far as transmission pressure point and adjust guide sleeve on full throttle detent until pressure point on transmission is aligned with pressure point on full throttle detent.
