35 41 480 Replacing kick-down switch
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.
Check switch,
Refer to BMW Diagnosis Program on BMW diagnostic tester.

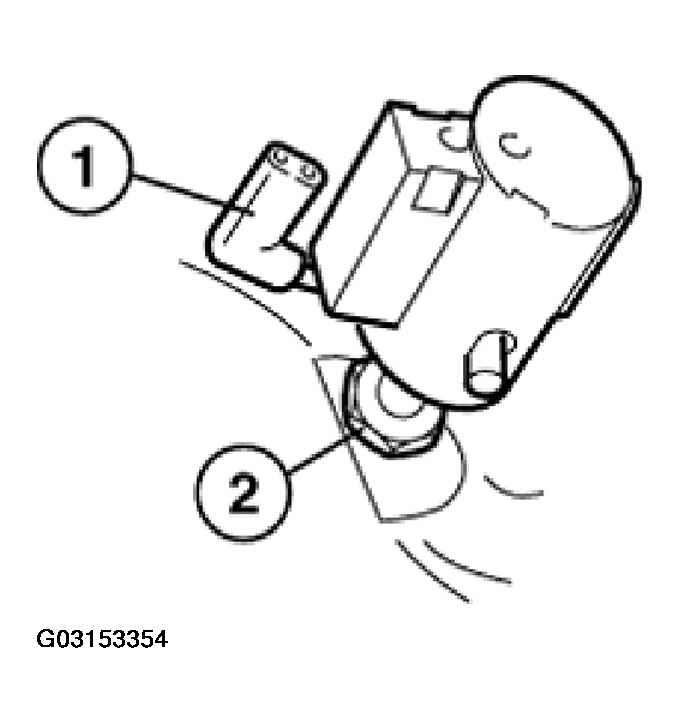

Pull off flat male connector (1).
Unfasten nut (2).
Unscrew and remove kick-down switch.
Installation
- Adjusting Bowden cable for actuating throttle valve, refer to 35 41... ADJUSTING BOWDEN CABLE FOR THROTTLE VALVE ACTUATION
