35 41 000 Removing and installing or replacing foot pedal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Always replace dismantled foot pedal with new part.

Retaining clips on old part may be damaged. Foot pedal can then slide out of steel plate.

Press down carpet.

Press locking tab (1) forwards.

Installation

Fold locking tab (1) upwards until it engages.

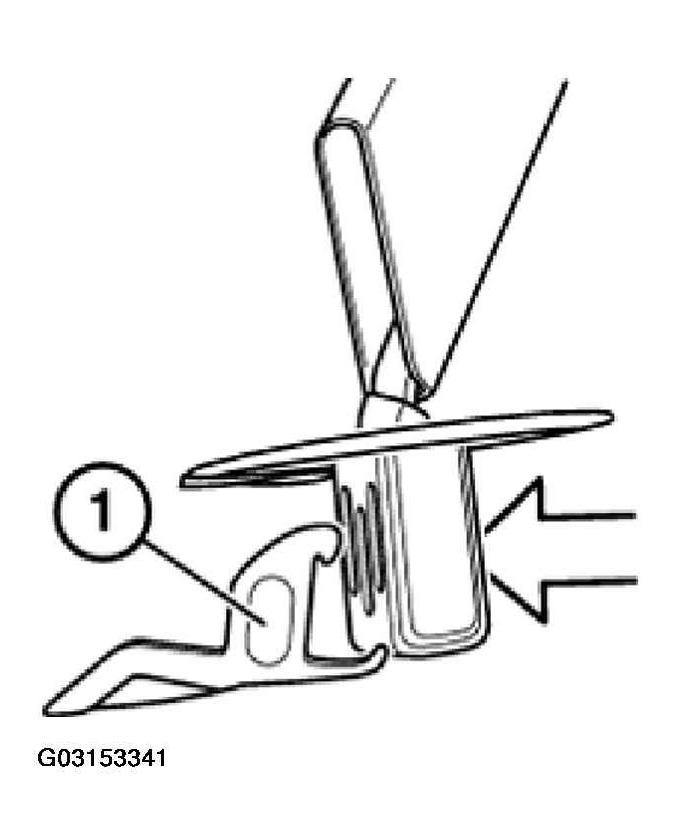

Fig 1: Pressing Locking Tab Forwards

G03153341

Courtesy of BMW OF NORTH AMERICA, INC.

Bend retaining clips forwards and lever out foot pedal upwards.

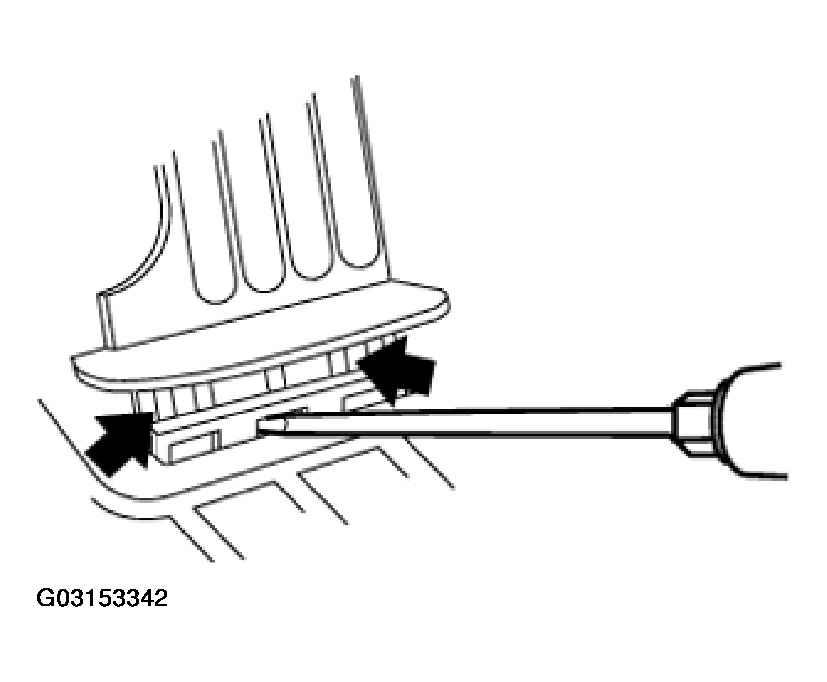

Fig 2: Bending Retaining Clips Forwards And Lever Out Foot Pedal Upwards

G03153342

Courtesy of BMW OF NORTH AMERICA, INC.

Insert foot pedal in floor with pocket on steel plate.

To be absolutely sure, check that retaining clips have snapped into place.

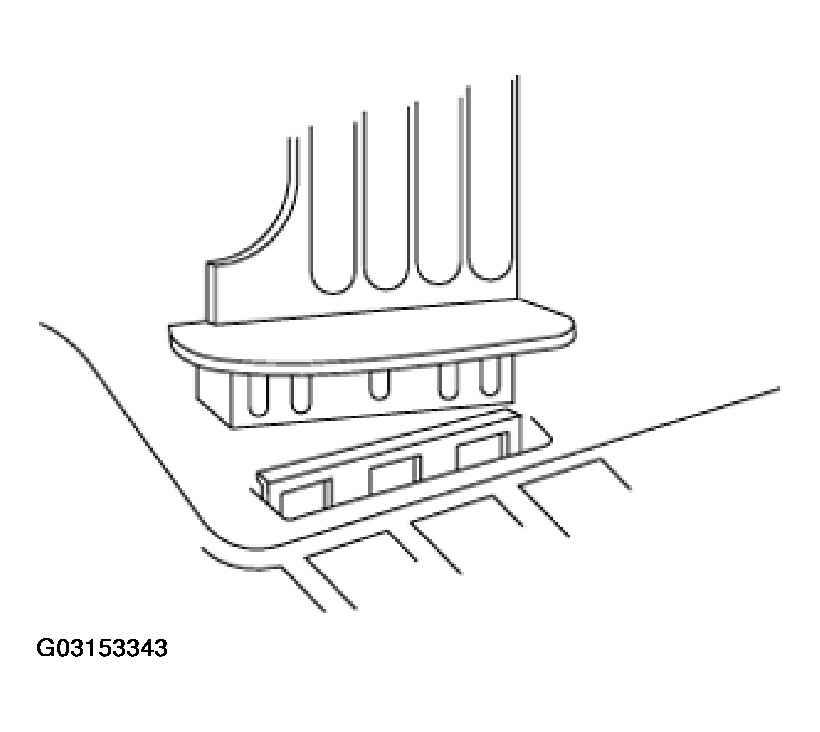

Fig 3: Inserting Foot Pedal In Floor With Pocket On Steel Plate

G03153343

Courtesy of BMW OF NORTH AMERICA, INC.

Twist foot pedal (1) until linkage lug (2) on accelerator pedal engages in recess (3).

Remove foot pedal from accelerator pedal.

Apply light coat of grease to anti-friction surface of accelerator pedal.

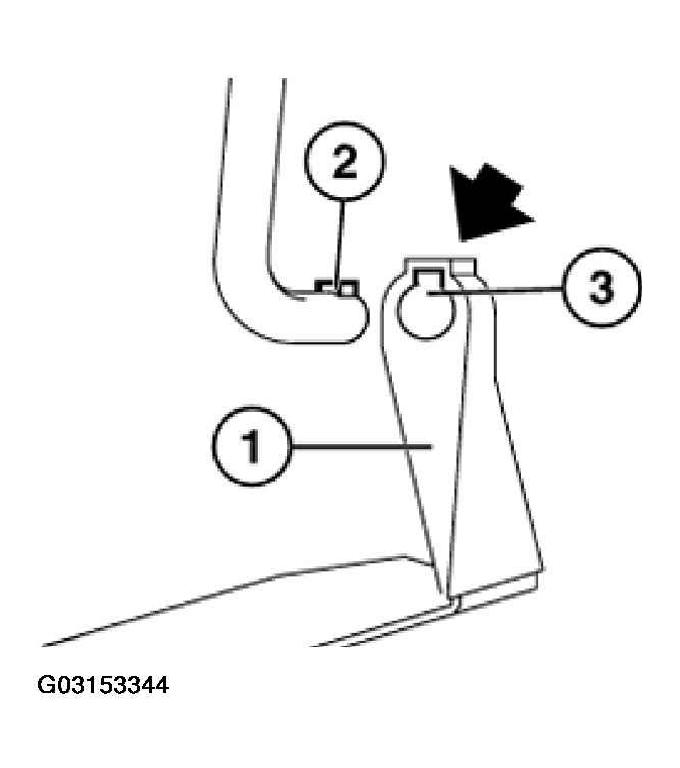

Fig 4: Twisting Foot Pedal Until Linkage Lug On Accelerator Pedal Engages In Recess

G03153344

Courtesy of BMW OF NORTH AMERICA, INC.
