35 31 000 Removing and installing / replacing clutch pedal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Remove lower left trim panel from instrument panel. See 51 45 030 REMOVING AND INSTALLING TRIM FOR INSTRUMENT PANEL (LOWER SECTION)

Remove the clutch pedal switch.

Remove retainers.

Push out the bolts (1) and remove the clutch pedal.

Installation

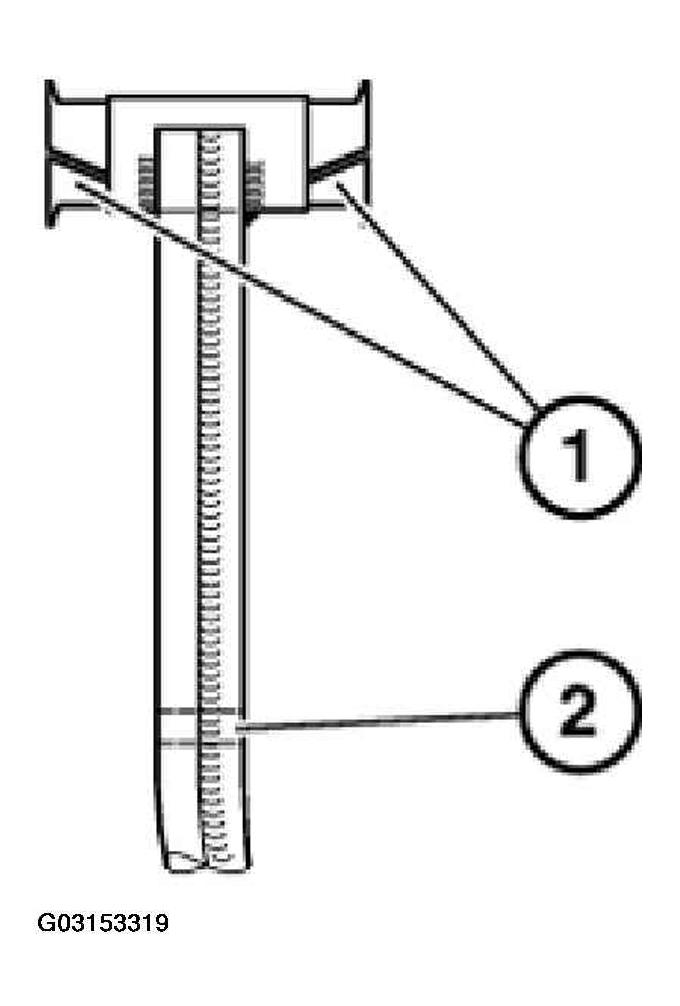

Fit compression spring (2). See Figure.

Fig 1: Removing Clutch Pedal

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

Check bearing bushes (1) and replace if necessary.
Apply a light coat of grease to bearing bushes (1) and bore (2),

Fig 2: Applying Light Coat Of Grease To Bearing Bushes And Bore

Courtesy of BMW OF NORTH AMERICA, INC.
