18 00 020 Removing and installing complete exhaust system (M62): Installation:

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Check seals and replace if necessary.
Replace self-locking nuts.
Coat thread with copper paste.

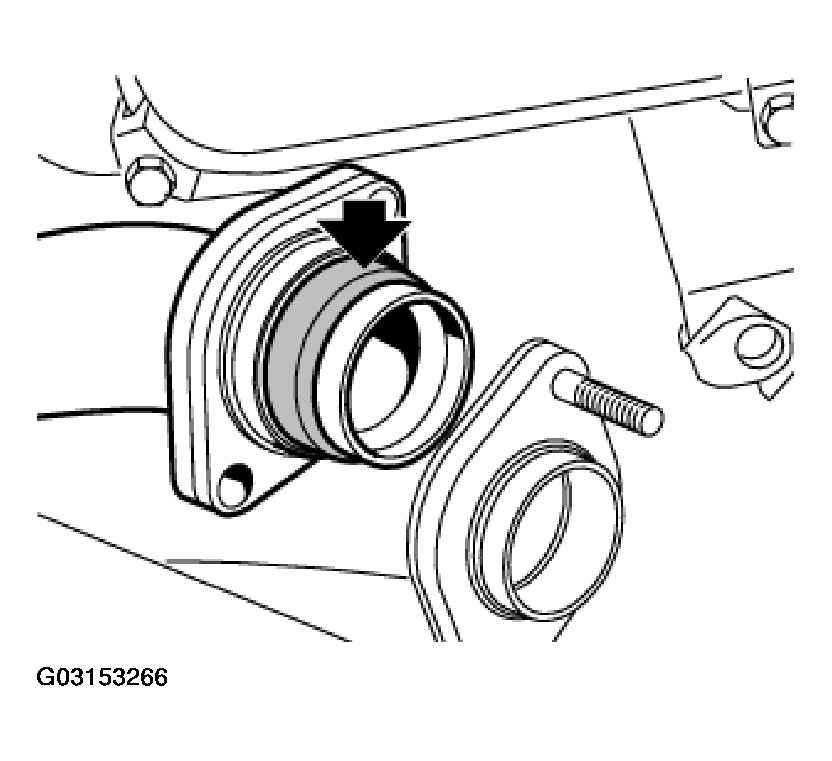

Fig 1: Checking Seals

G03153266

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten hex nut (1/2).

Remove complete exhaust system.

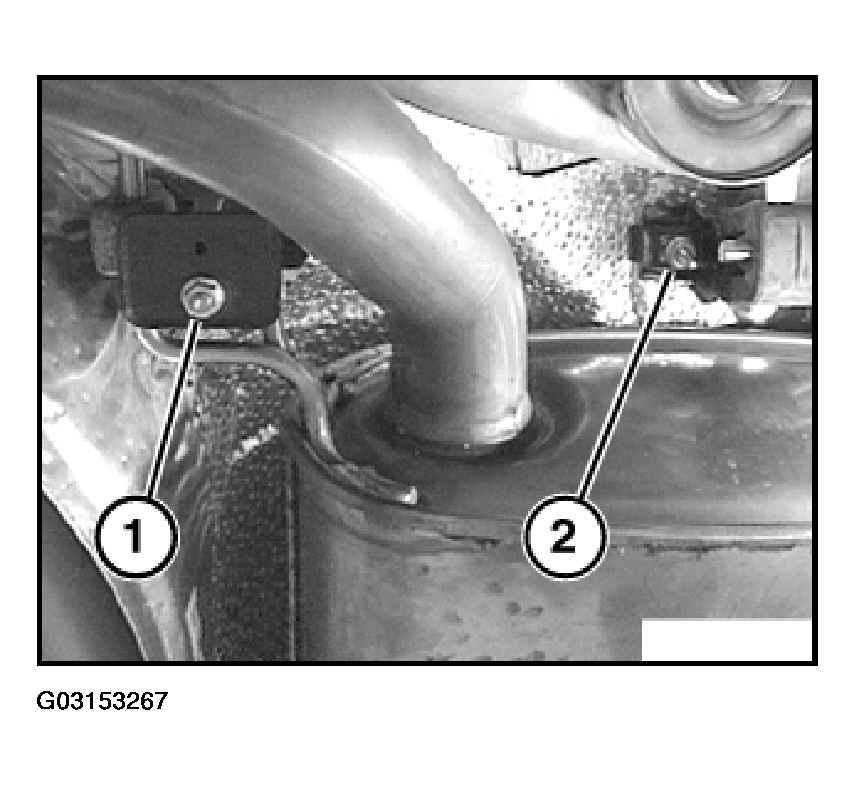

Fig 2: Removing Complete Exhaust System

G03153267

Courtesy of BMW OF NORTH AMERICA, INC.

Cars with primary catalytic converter on exhaust manifold only:

Release hexagon nuts (1) on exhaust pipe on left and right.

Replace self-locking nuts.
Coat thread with copper paste CRC.

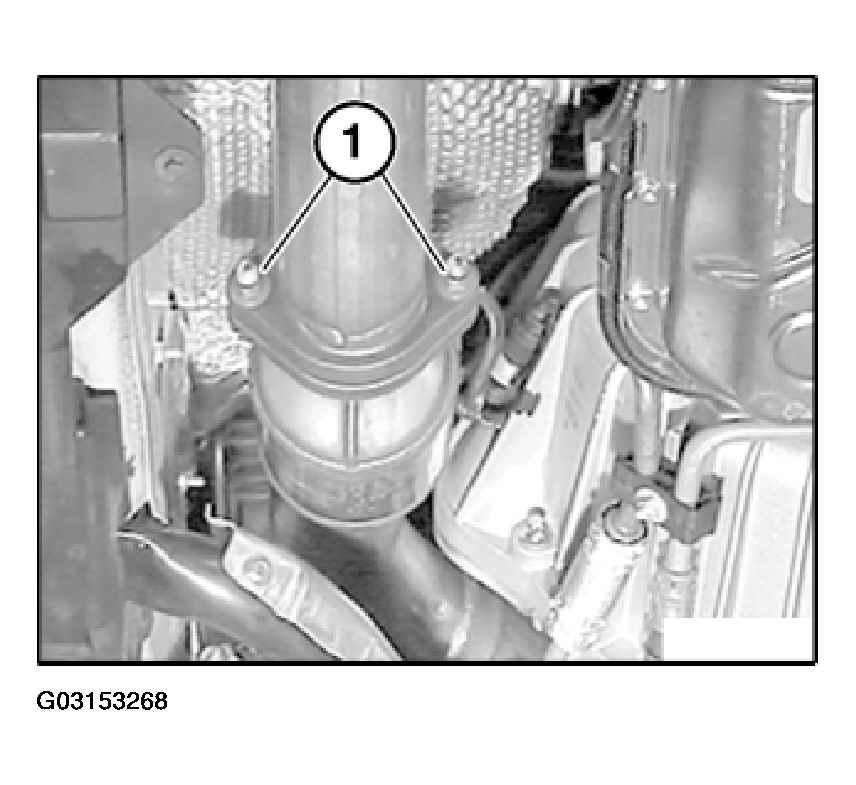

Fig 3: Releasing Hexagon Nuts On Exhaust Pipe

G03153268

Courtesy of BMW OF NORTH AMERICA, INC.

Release hexagon nuts (1) on rear axle carrier.

Remove exhaust bracket (2).

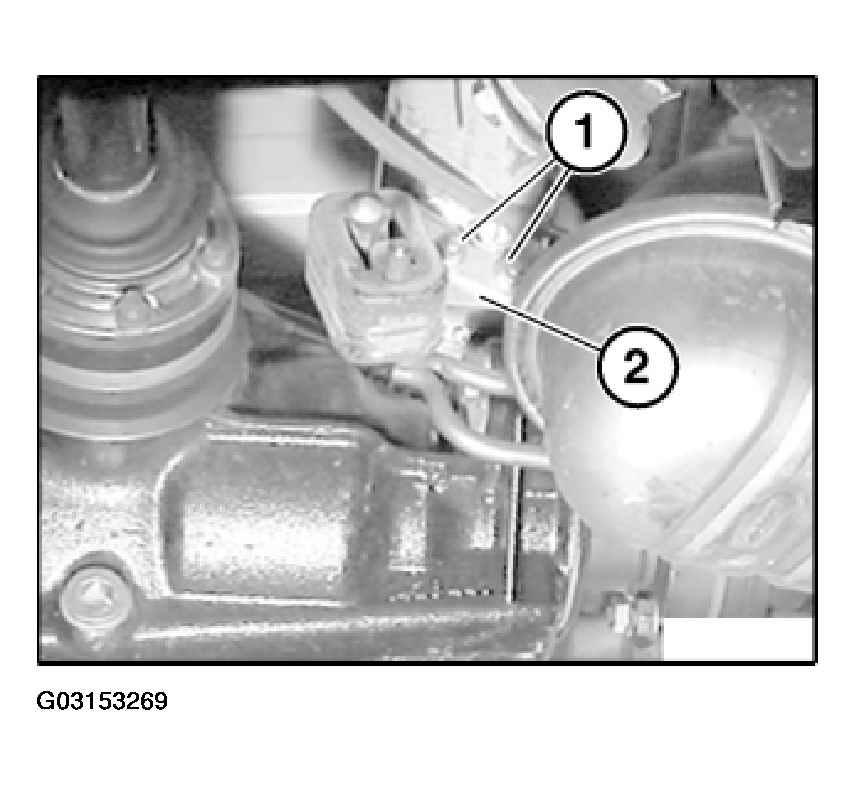

Fig 4: Releasing Hexagon Nuts On Rear Axle Carrier

G03153269

Courtesy of BMW OF NORTH AMERICA, INC.

Release hexagon nut (1) on final muffler.

Remove complete exhaust system.

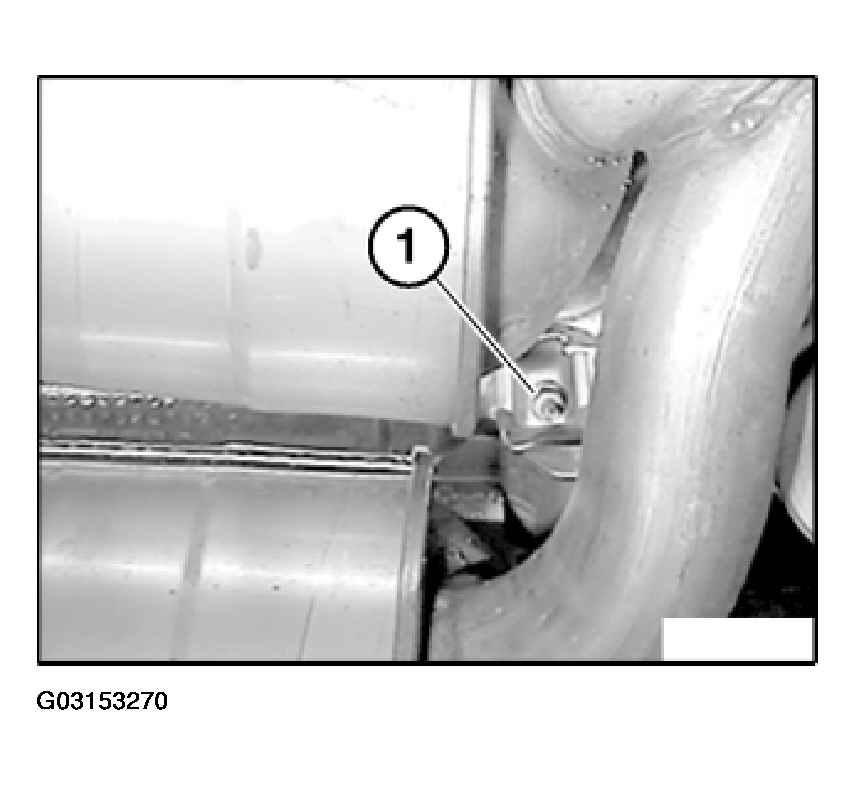

Fig 5: Releasing Hexagon Nut On Final Muffler

G03153270

Courtesy of BMW OF NORTH AMERICA, INC.
