18 21 511 Replacing all exhaust suspension elements (M62)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Exhaust system completely removed.

Remove and install complete exhaust system, refer to 18 00 020 REMOVING AND INSTALLING COMPLETE EXHAUST SYSTEM (M62) .

NOTE: Use an antifriction spray to facilitate removal of suspension.

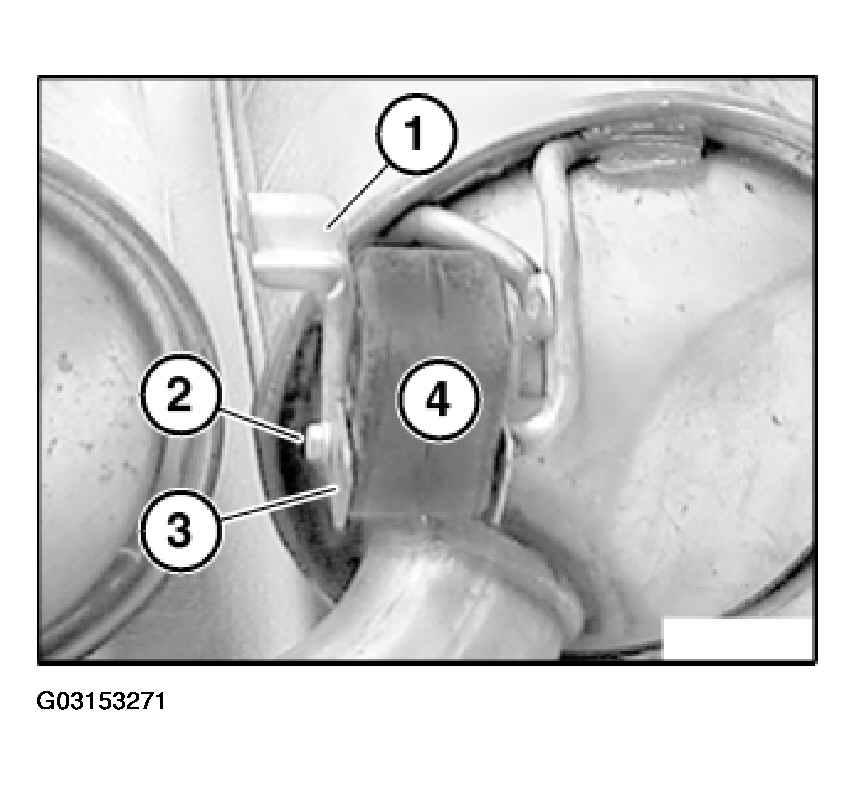

Remove bracket (1) from suspension (4).

Unscrew bolt (2).

Remove plate (3).

Remove suspension (4) from exhaust.

Fig 1: Removing Bracket From Suspension

G03153271

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Use an antifriction spray to facilitate removal of suspension.

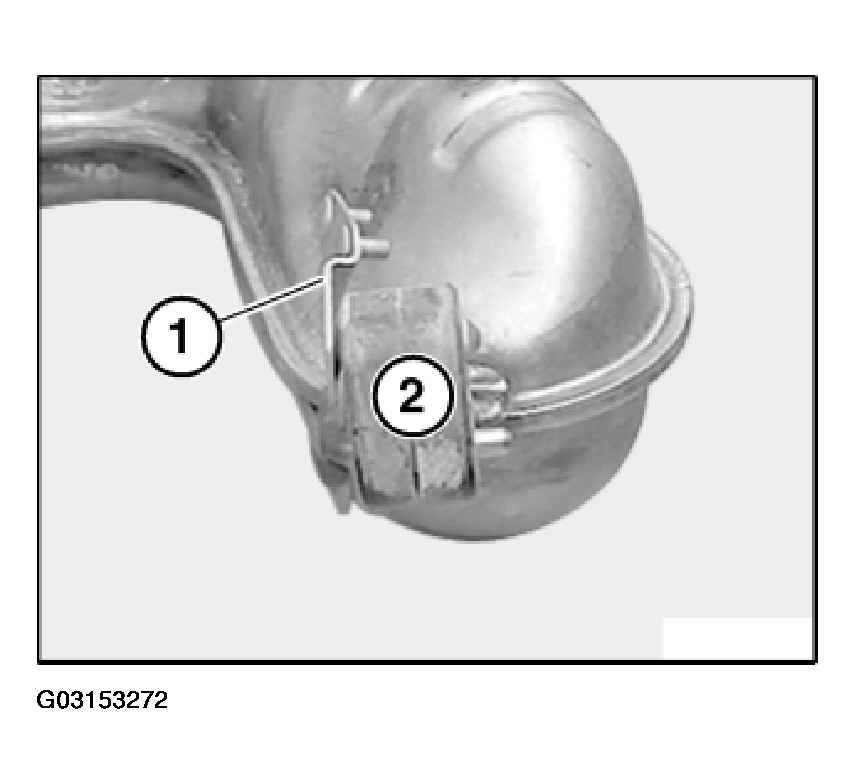

Remove bracket (1) from suspension (2).

Remove suspension (2) from exhaust.

Fig 2: Removing Bracket From Suspension

G03153272

Courtesy of BMW OF NORTH AMERICA, INC.

Release nut (1) and remove suspension (2).

Fig 3: Releasing Nut And Removing Suspension

G03153273

Courtesy of BMW OF NORTH AMERICA, INC.

Exhaust system completely removed.

Remove and install complete exhaust system, refer to 18 00 020 REMOVING AND INSTALLING COMPLETE EXHAUST SYSTEM (M62) .

NOTE: Use an antifriction spray to facilitate removal of suspension.

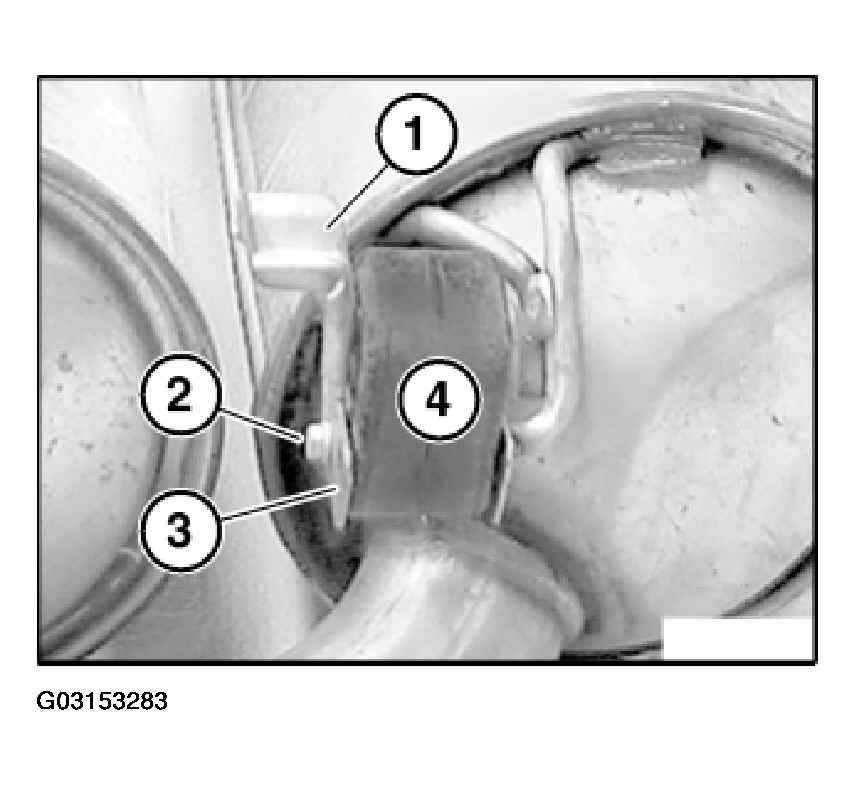

Remove bracket (1) from suspension (4).

Unscrew bolt (2).

Remove plate (3).

Remove suspension (4) from exhaust.

Fig 1: Removing Bracket From Suspension

G03153283

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Use an antifriction spray to facilitate removal of suspension.

Remove bracket (1) from suspension (2).

Remove suspension (2) from exhaust.

Fig 2: Removing Bracket From Suspension

G03153284

Courtesy of BMW OF NORTH AMERICA, INC.

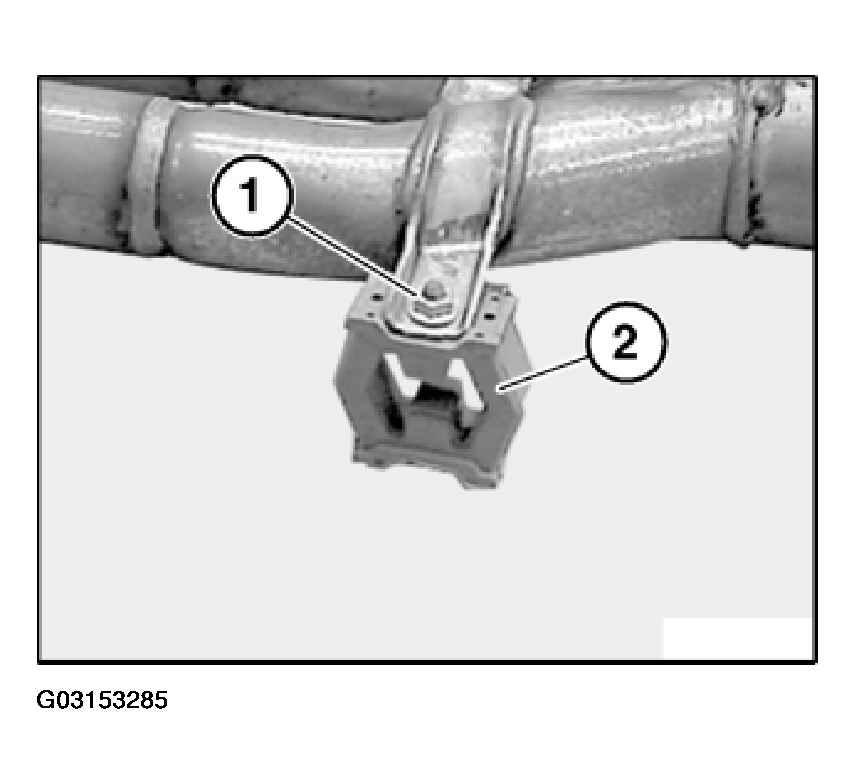

Release nut (1) and remove suspension (2).

Fig 3: Releasing Nut And Removing Suspension

G03153285

Courtesy of BMW OF NORTH AMERICA, INC.
