17 21 500 Flushing oil cooler with lines (automatic transmission): Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

17 2 018
17 2 019

NOTE: Carry out the work steps listed when: Fitting a new or replacement transmission
Flushing can only be carried out with the automatic transmission removed.

Procedure:

Automatic transmission removed.

Connect appropriate adapters to oil lines exiting from automatic transmission.

Connect the connecting line 17 2 019 from the oil collection unit with the quick-release coupling.

Connect drain line 17 2 018 using quick-release coupling.

Feed open end of drain line into a suitable collection container.

Using oil collection unit, flush approx. 1 liter of transmission fluid (refer to BMW Service Operating Fluids ) through oil lines and oil cooler.

Reposition quick-release couplings.

Flush oil lines/oil cooler in opposite direction with approx. 1 liter of transmission fluid (refer to OPERATING FLUIDS - AUTOMATIC TRANSMISSION ).

Disconnect quick-release couplings, remove adapters.

NOTE: Dispose of flushing oil properly; do not under any circumstances reuse it.

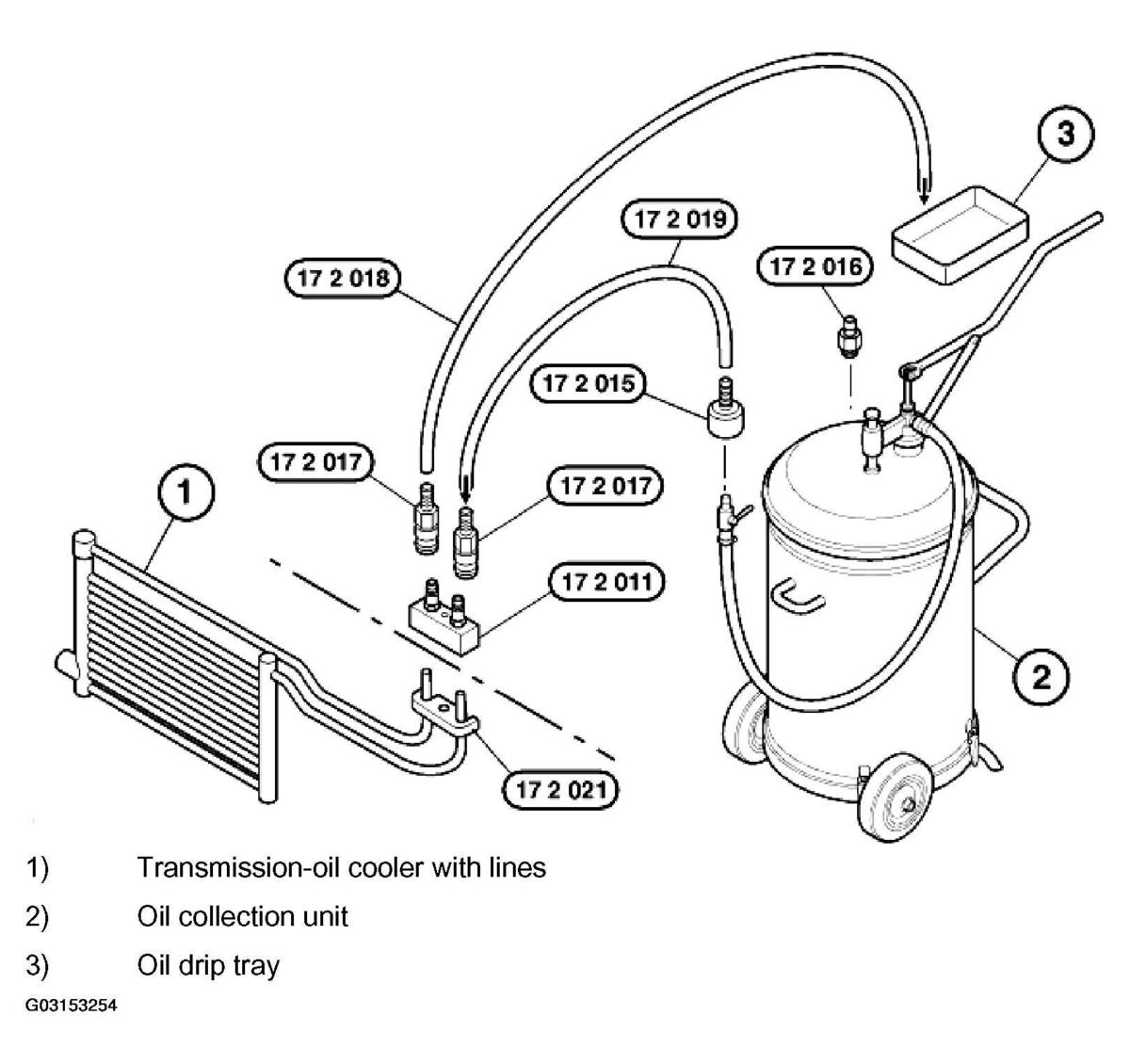

Arrangement of flushing device for transmissions A5S 310Z, A5S 560Z, A5S 360R/390R, A4S 200R, A5S 325Z, GA6HP26Z

Fig 1: Identifying Flushing Device For Transmissions A5S 310Z, A5S 560Z, A5S 360R/390R, A4S 200R, A5S 325Z, GA6HP26Z

Courtesy of BMW OF NORTH AMERICA, INC.

17 2 011 Adapter for connecting transmission-side oil cooler lines (1)

17 2 015 Connection for oil collection unit (2), manufacturer: Deutsche Tecalemit or

17 2 016 Connection for oil collection unit (2), manufacturer: Horn

17 2 017 Quick-release coupling (2 pieces)

17 2 018 Hose to oil drip tray (3)

17 2 019 Hose to oil collection unit (2)

17 2 021 Mounting plate for adapter 17 2 011 for transmissions A5S 325Z, GA6HP26Z
