13 63 556 Replacing throttle valve potentiometer (ASC+T) (M60, M62)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Switch off ignition.

Version 1:

(acoustic cover screwed down)

Remove seal caps (1) and unfasten nuts (2).

Remove acoustic cover.

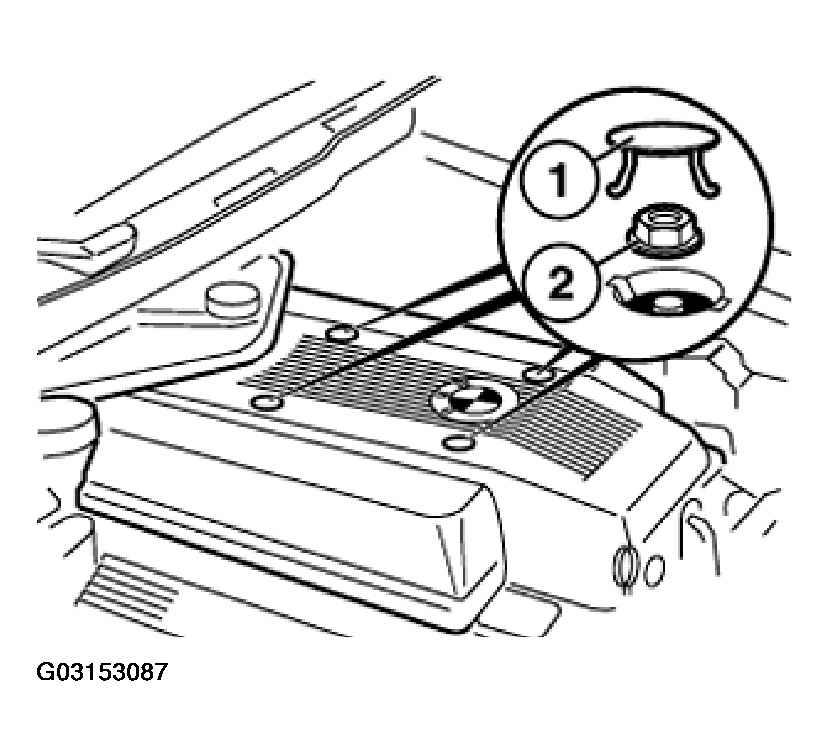

Fig 1: Removing Acoustic Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Version 2:

(acoustic cover with press-stud fastener)

Open press-studs (1.. 4) one at a time, at the same time lifting the acoustic cover slightly. Once all four press-studs have been opened, remove the acoustic cover.

Installation

Position acoustic cover and press downwards until press-studs (1.. 4) click into place.

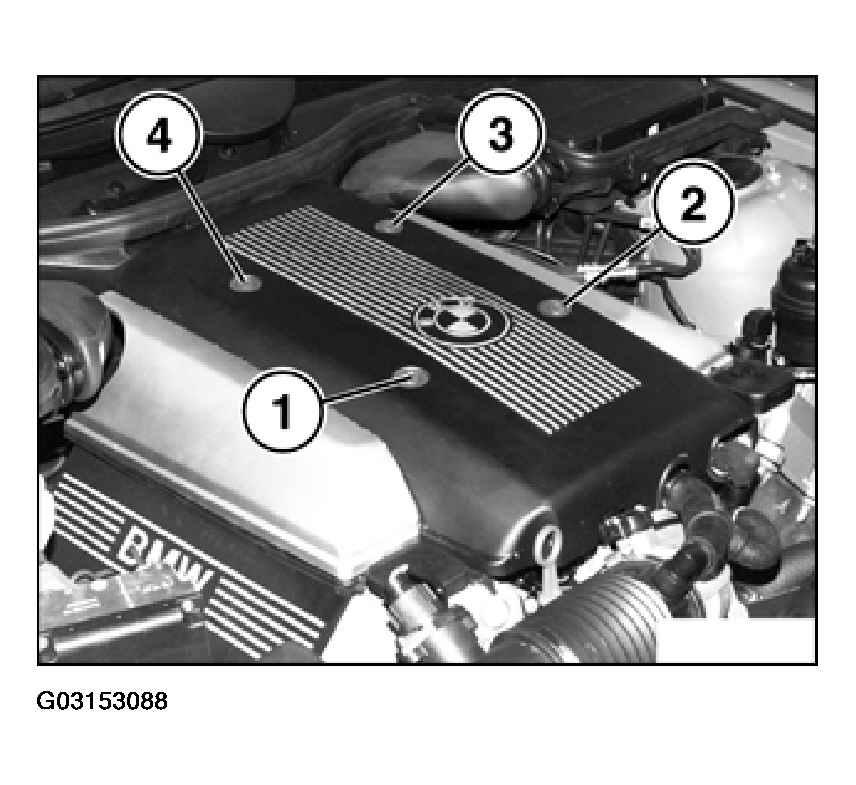

Fig 2: Identifying Press-Stud Fastener On Acoustic Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect connector.

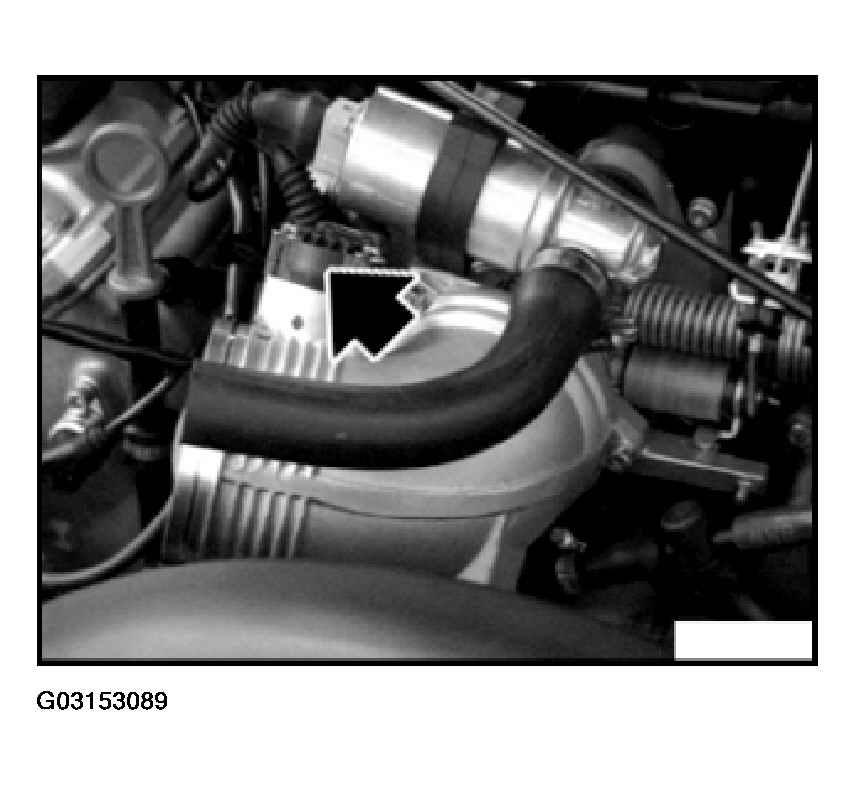

Fig 3: Disconnecting Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws.

Remove potentiometer from throttle valve shaft.

Installation

Interrogate fault memory of control unit on Digital Engine Electronics (DME), check fault messages in memory, rectify faults and cancel fault memory.

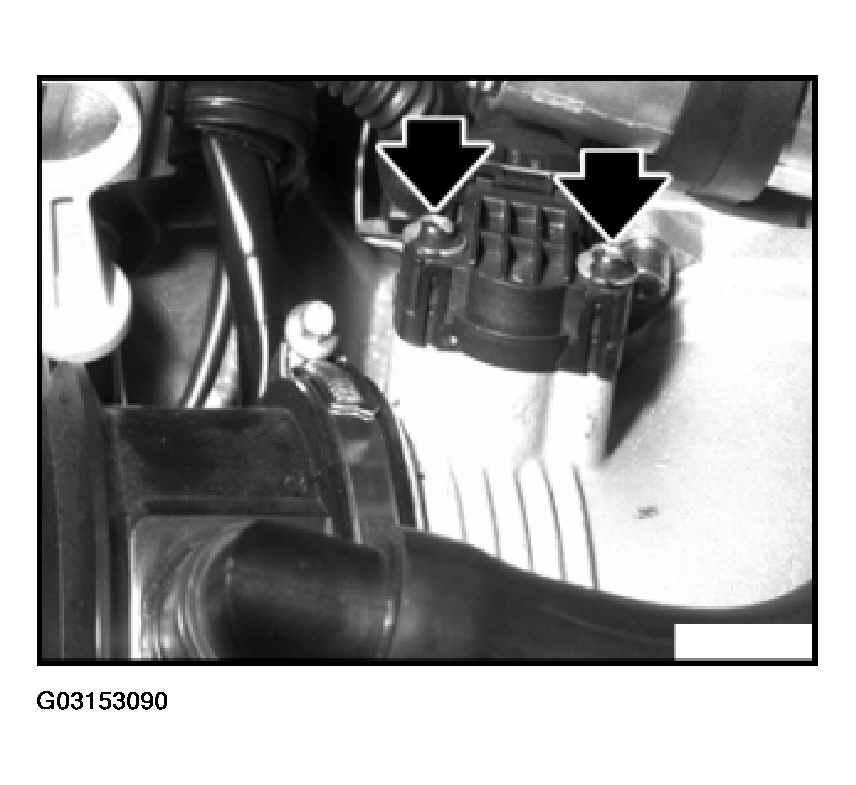

Fig 4: Identifying Potentiometer Unfasten Screws

Courtesy of BMW OF NORTH AMERICA, INC.
