13 63 555 Replacing throttle valve potentiometer (M60, M62)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Switch off ignition.

Version 1:

(acoustic cover screwed down)

Remove seal caps (1) and unfasten nuts (2).

Remove acoustic cover.

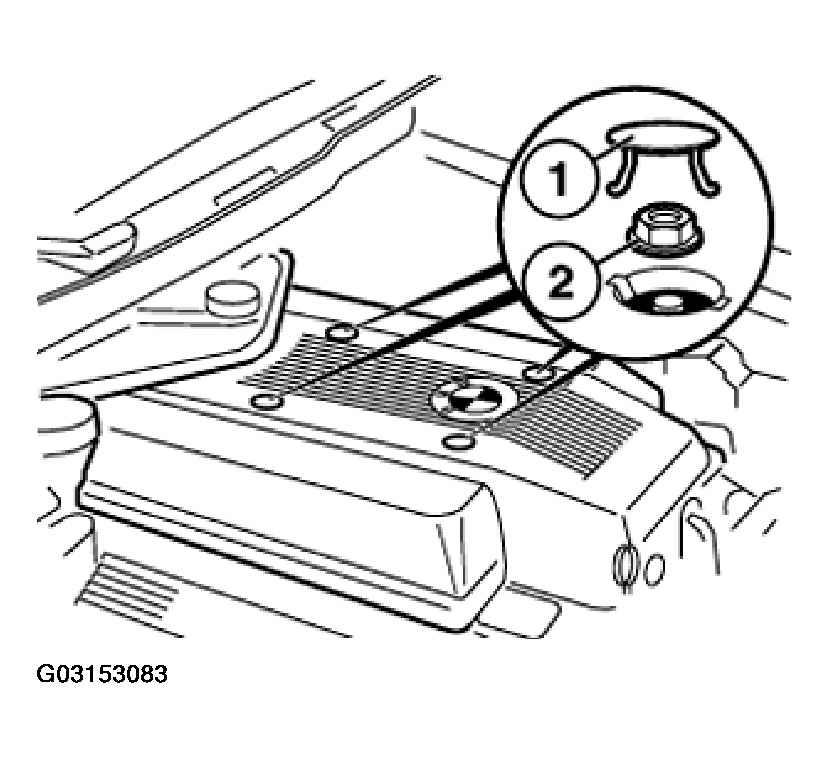

Fig 1: Removing Seal Caps And Unfasten Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Version 2:

(acoustic cover with press-stud fastener)

Open press-studs (1..4) one at a time, at the same time lifting the acoustic cover slightly. Once all four press-studs have been opened, remove the acoustic cover.

Installation

Position acoustic cover and press downwards until press-studs (1..4) click into place.

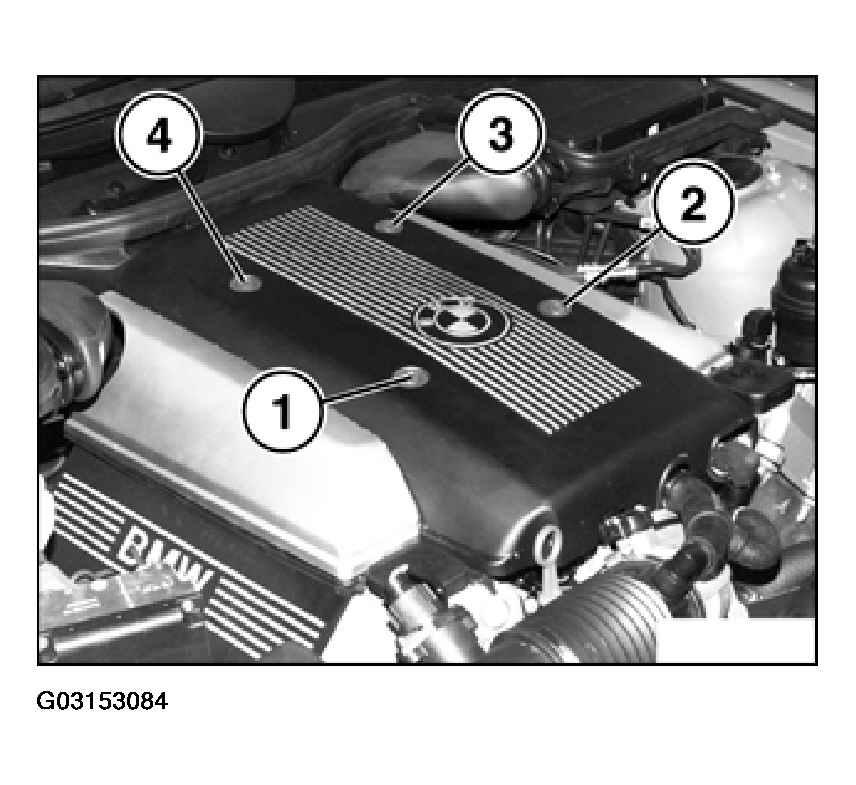

Fig 2: Identifying Acoustic Cover With Press-Stud Fastener

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect connector (2).

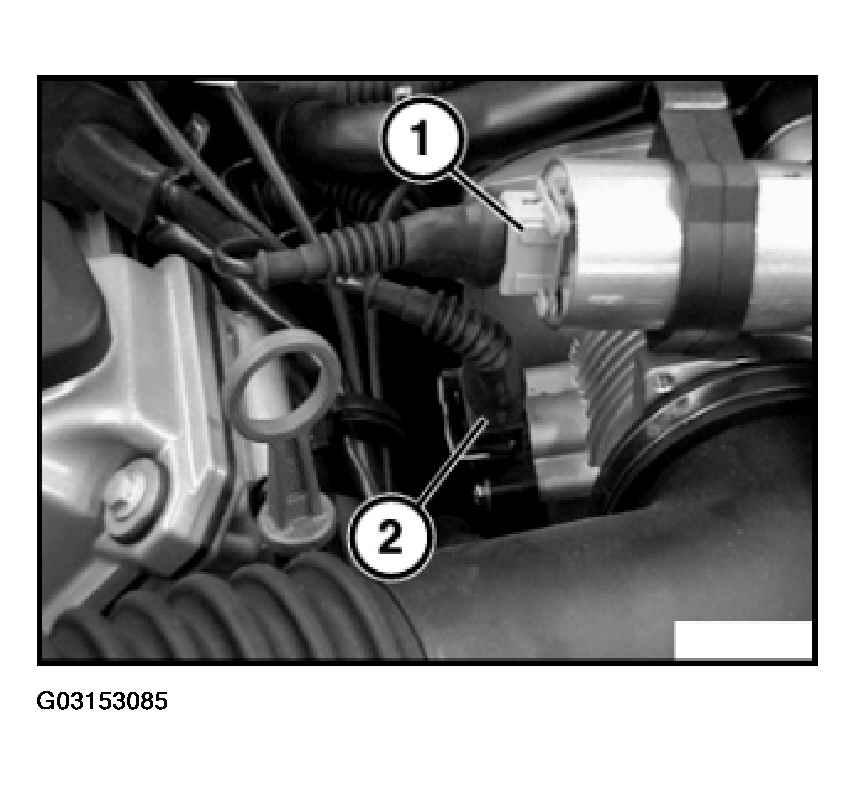

Fig 3: Disconnecting connector

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws.

Installation

Interrogate fault memory of DME control unit, check faults in memory then cancel fault memory.

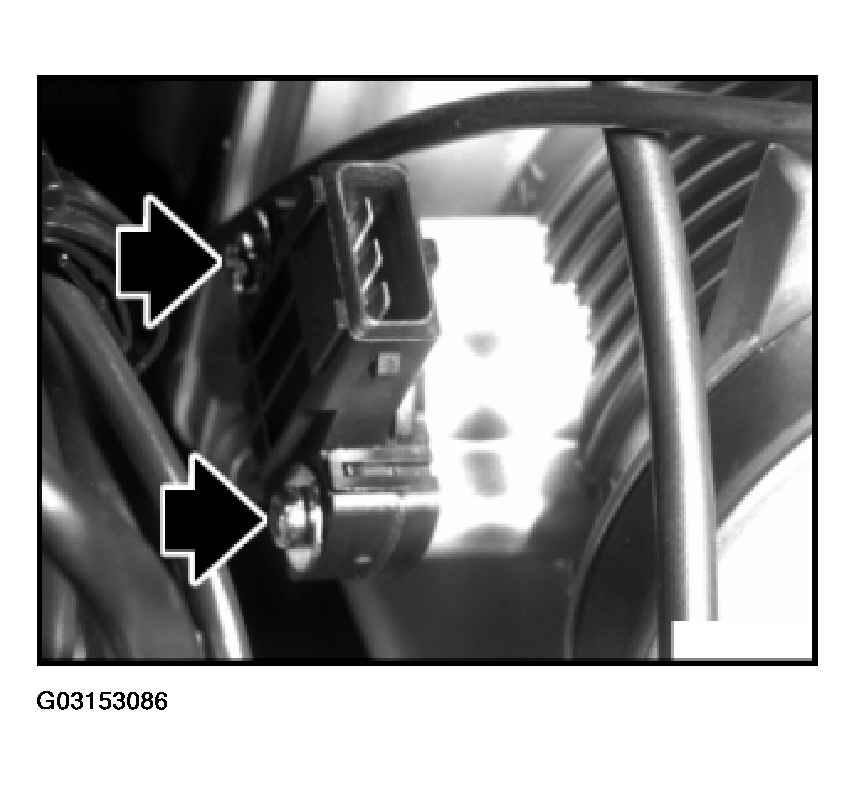

Fig 4: Unfastening Screws

Courtesy of BMW OF NORTH AMERICA, INC.
