13 54 250 Replacing inlet hose (between mass air flow sensor and throttle body) (M62)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Switch off ignition.

Remove hose to idle speed actuator.

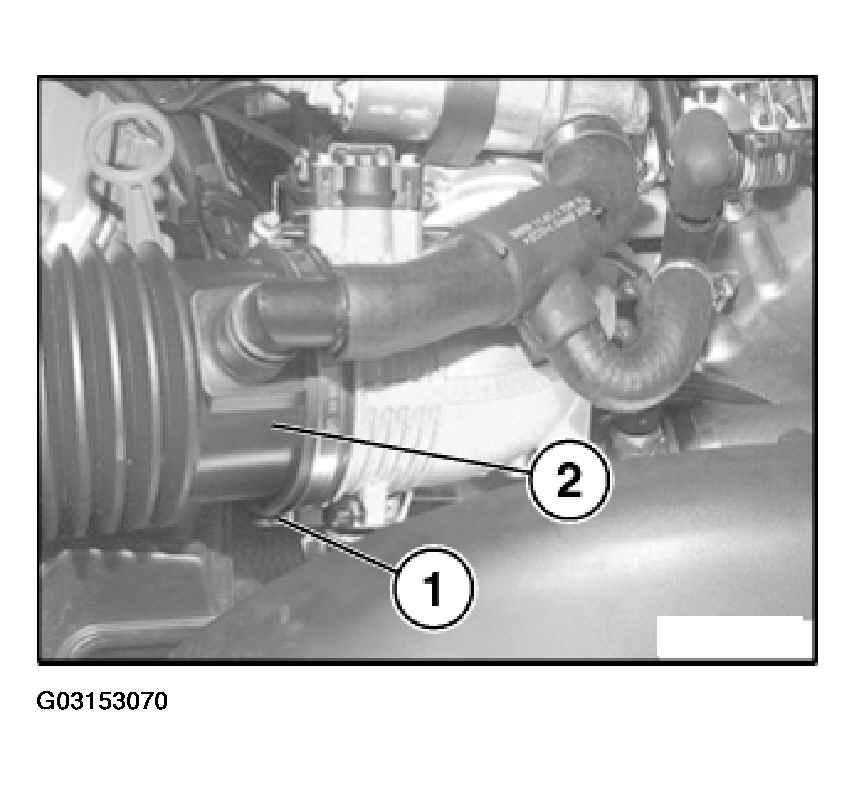

Unfasten hose clip (1), pull inlet hose off throttle body.

Fig 1: Identifying Hose Clip For Pulling Inlet Hose Off Throttle Body

Courtesy of BMW OF NORTH AMERICA, INC.

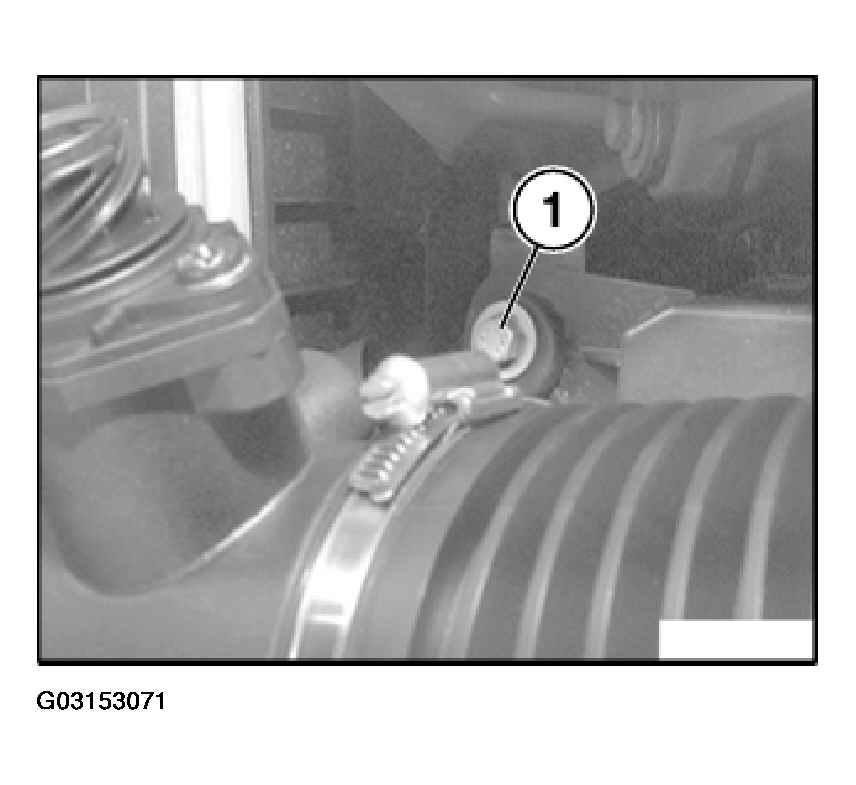

Unscrew bolt (1).

Disconnect plug connection from mass air flow sensor.

Remove upper section of air filter with mass air flow sensor and inlet hose.

Fig 2: Identifying Bolt For Disconnecting Plug Connection From Mass Air Flow Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

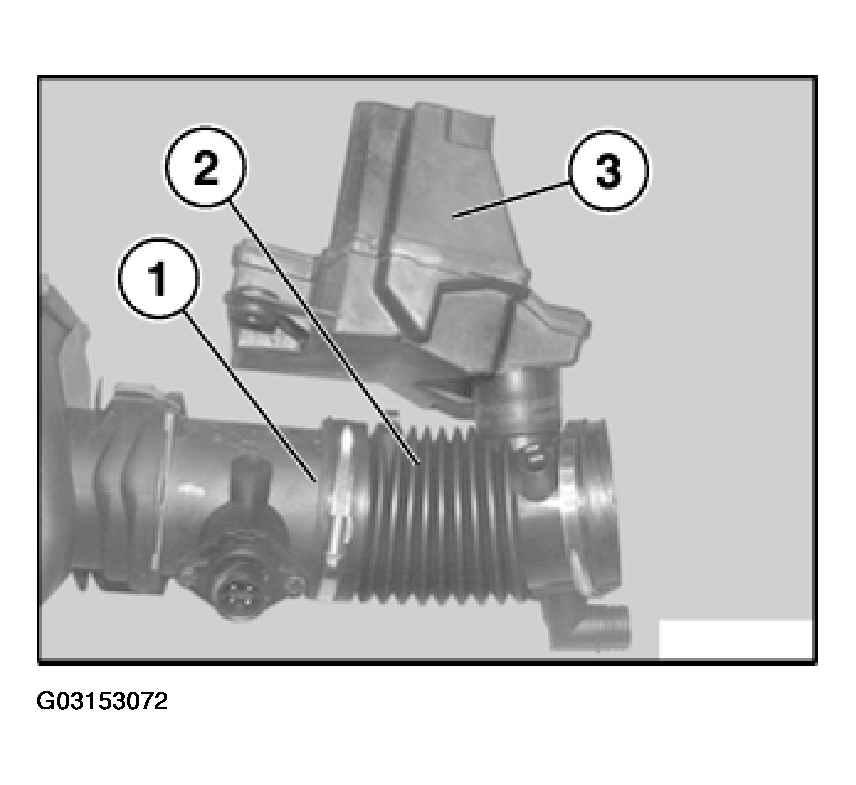

Remove mass air flow sensor (1) from inlet hose (2) and the resonator (3).

Fig 3: Removing Mass Air Flow Sensor From Inlet Hose And Resonator

Courtesy of BMW OF NORTH AMERICA, INC.
