13 64 541 Replacing all injector valves (M60, M62)

Switch off ignition.

Version 1:

(Acoustic cover screwed down)

Remove seal caps (1) and unfasten nuts (2).

Remove acoustic cover.

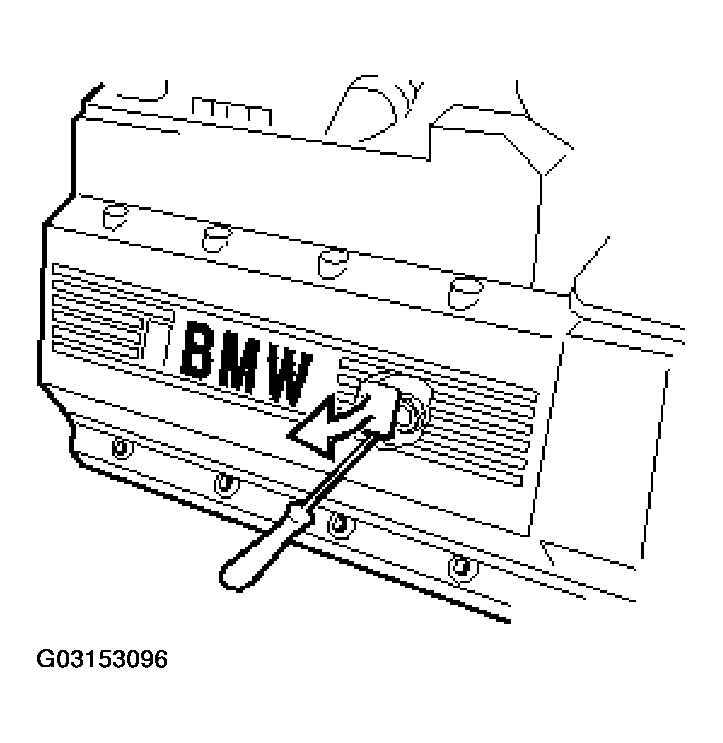

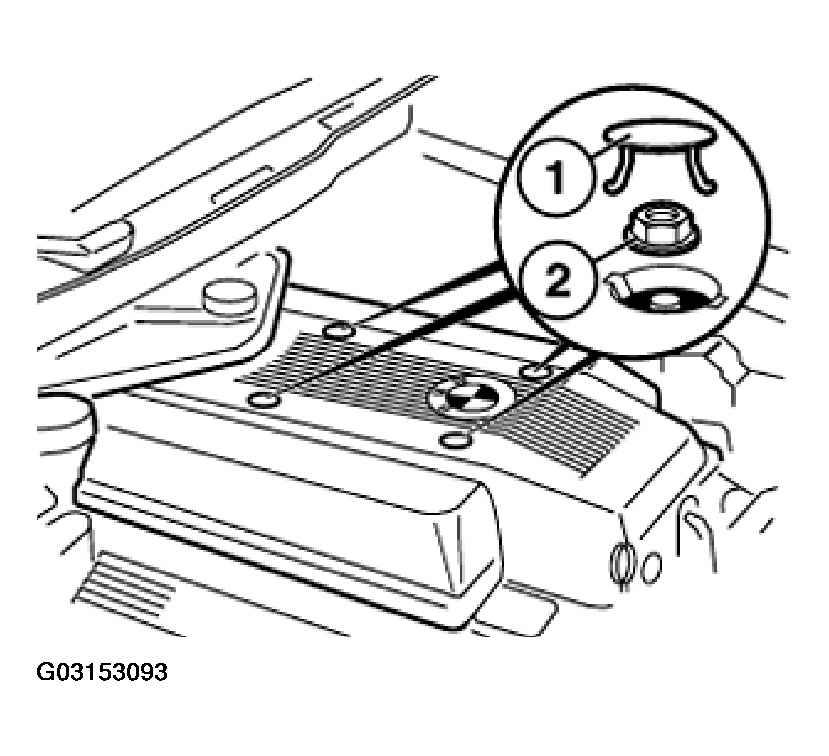

Fig 1: Removing Seal Caps And Unfasten Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Version 2:

(acoustic cover with press-stud fastener)

Press press-stud fasteners (1...4) in succession and at same time raise acoustic cover slightly.

Remove acoustic cover once all four press-stud fasteners have been unlocked.

Installation

1. Position acoustic cover and press downwards until press-stud fasteners (1...4) click into place.

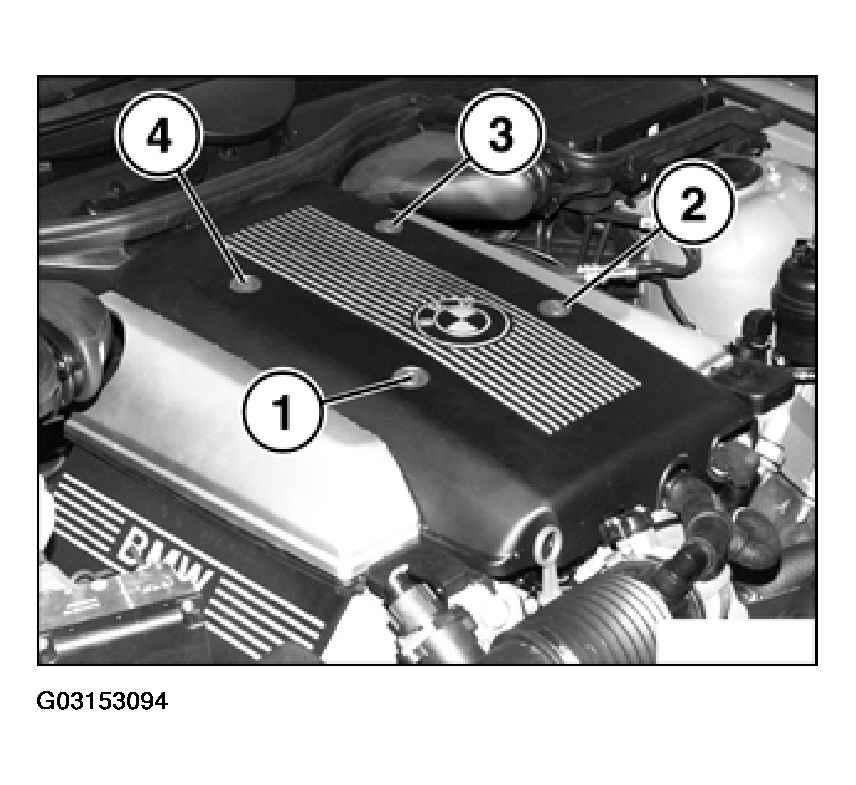

Fig 2: Identifying Acoustic Cover With Press-Stud Fastener

Courtesy of BMW OF NORTH AMERICA, INC.

Remove cable retaining bands.

Disconnect accelerator cable from throttle valve lever.

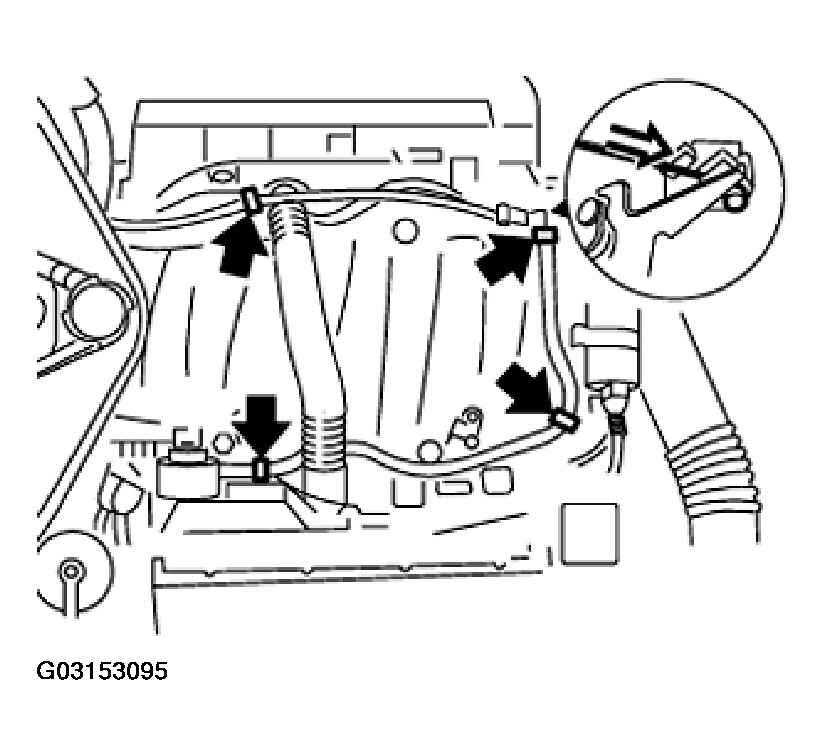

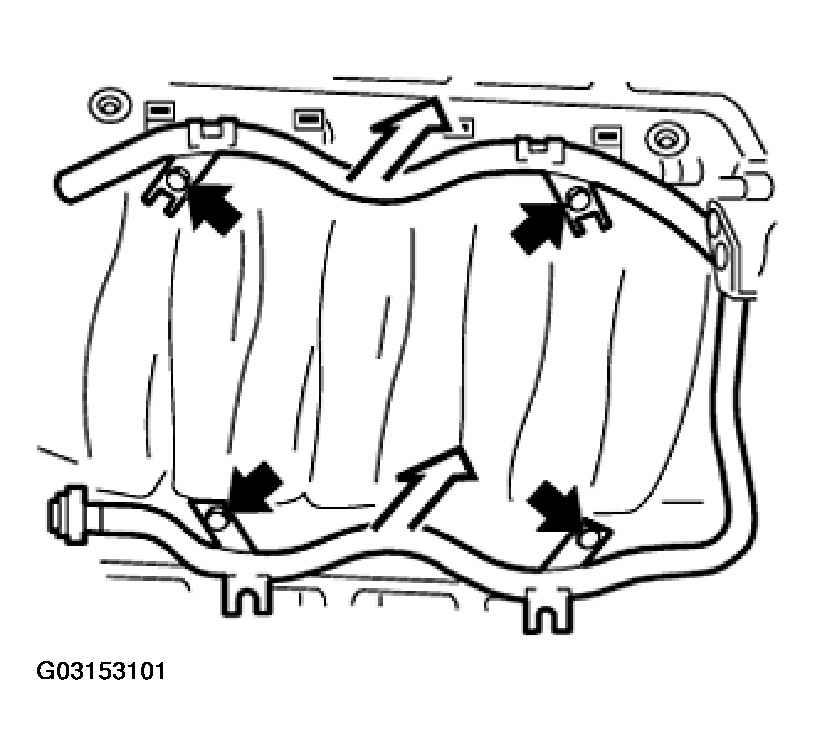

Fig 3: Removing Cable Retaining Bands

Courtesy of BMW OF NORTH AMERICA, INC.

Remove cover from ignition coils from both sides of cylinder head.

Fig 4: Removing Cover From Ignition Coils

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection from ignition coils.

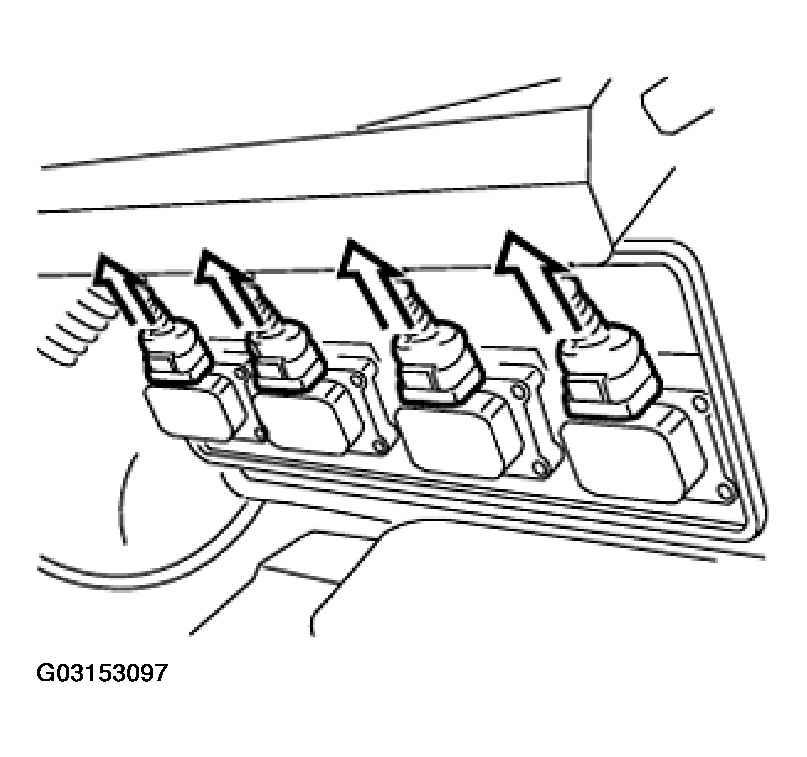

Fig 5: Disconnecting Plug Connection From Ignition Coils

Courtesy of BMW OF NORTH AMERICA, INC.

Remove cable ducts (2) and place to one side.

Installation

Disconnect plug connection on injector valves.

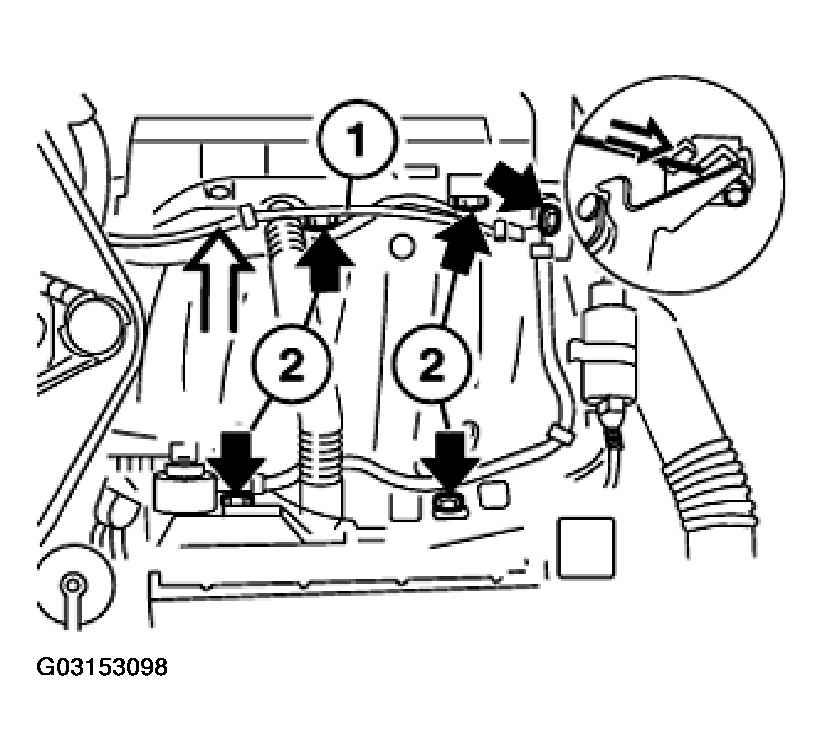

Fig 6: Removing Cable Ducts

Courtesy of BMW OF NORTH AMERICA, INC.

Seal fuel delivery line and return line with special tool 13 3 010 and remove.

Installation

1. Replace hose clips.

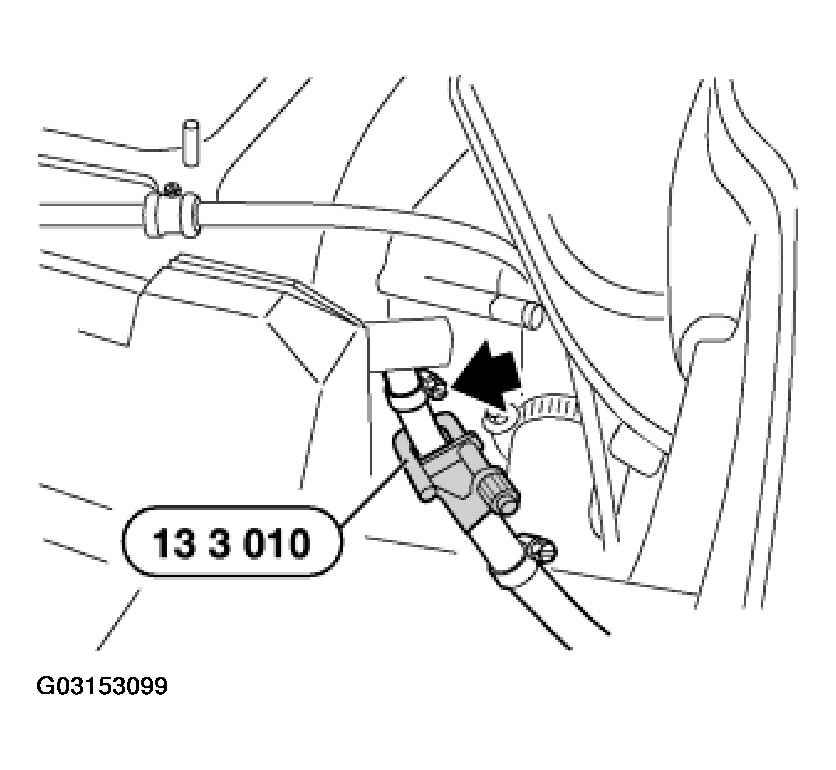

Fig 7: Sealing Return Line Using Special Tool 13 3 010

Courtesy of BMW OF NORTH AMERICA, INC.

Remove vacuum hose from fuel pressure regulator.

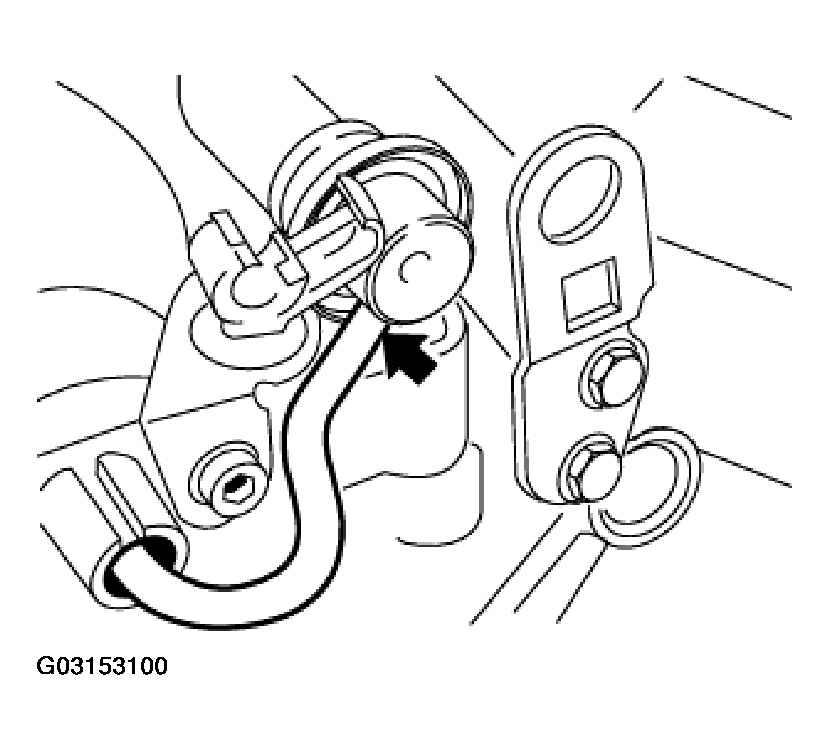

Fig 8: Removing Vacuum Hose From Fuel Pressure Regulator

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screw connection on injection tube.

Remove injection tube together with injector valves.

Fig 9: Identifying Injection Tube Unfasten Screw Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip and remove circlip.

Remove injector valves.

1. Check seals on injector valves and replace if necessary.

Before installing injector valves, coat seals with acid-free grease.

Check fuel injectors for leaks and clean, refer to 13 64 582 CHECKING INJECTOR VALVES FOR LEAKS AND CLEANING .

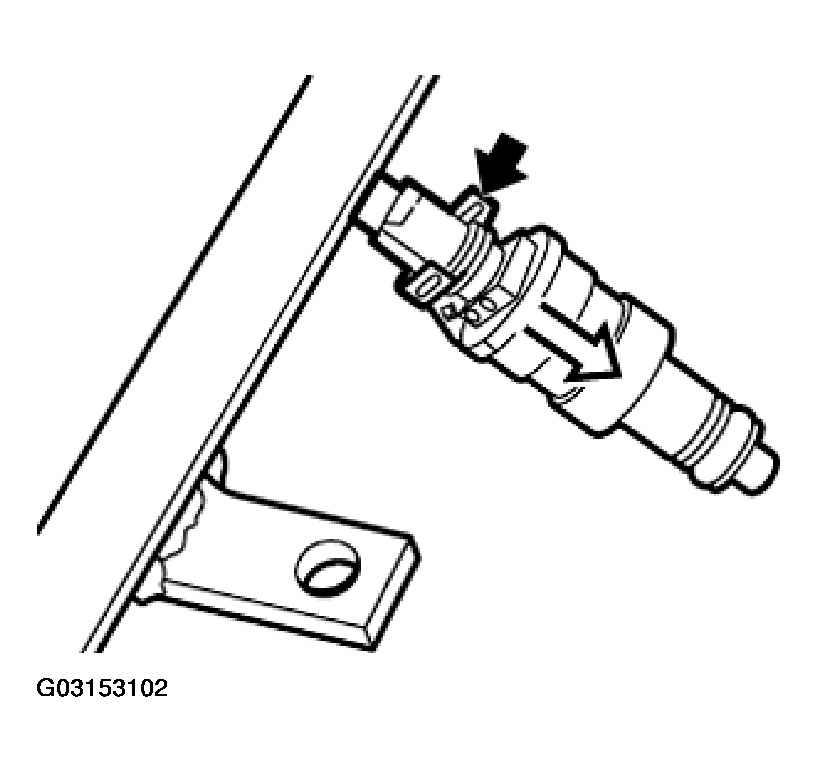

Fig 10: Removing Injector Valves

Courtesy of BMW OF NORTH AMERICA, INC.

Installation
