13 41 500 Replacing idle speed control valve (M60, M62)

Interrogate fault memory of the DME control unit.

Switch off ignition.

Version 1:

(acoustic cover screwed down)

Remove seal caps (1) and unfasten nuts (2).

Remove cover from cylinder head cover.

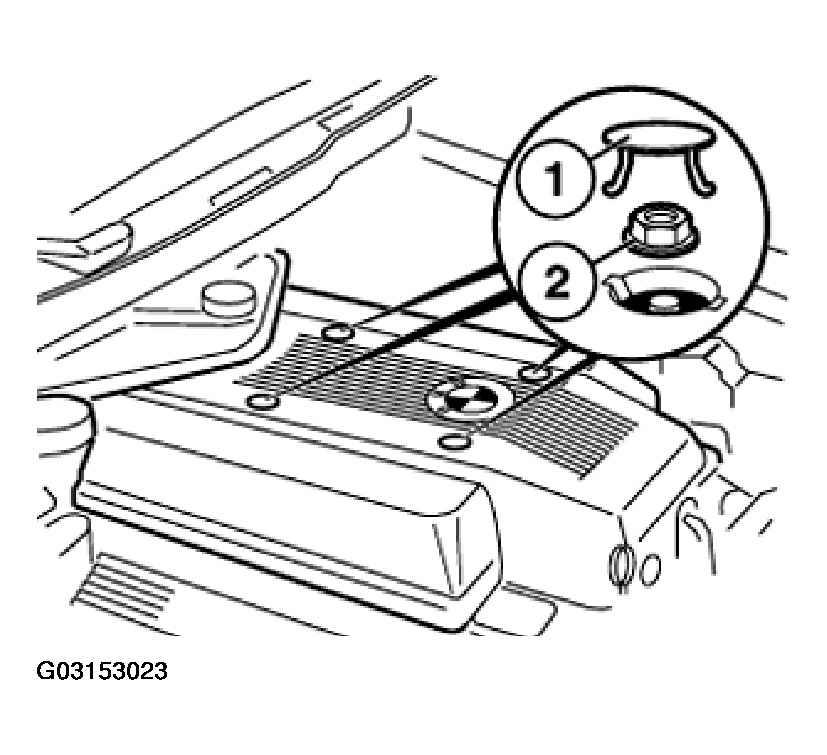

Fig 1: Removing Acoustic Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Version 2:

(acoustic cover with press-stud fastener)

Open press-studs (1.. 4) one at a time, at the same time lifting the acoustic cover slightly. Once all four press-studs have been opened, remove the acoustic cover.

Installation

1. Position acoustic cover and press downwards until press-studs (1.. 4) click into place.

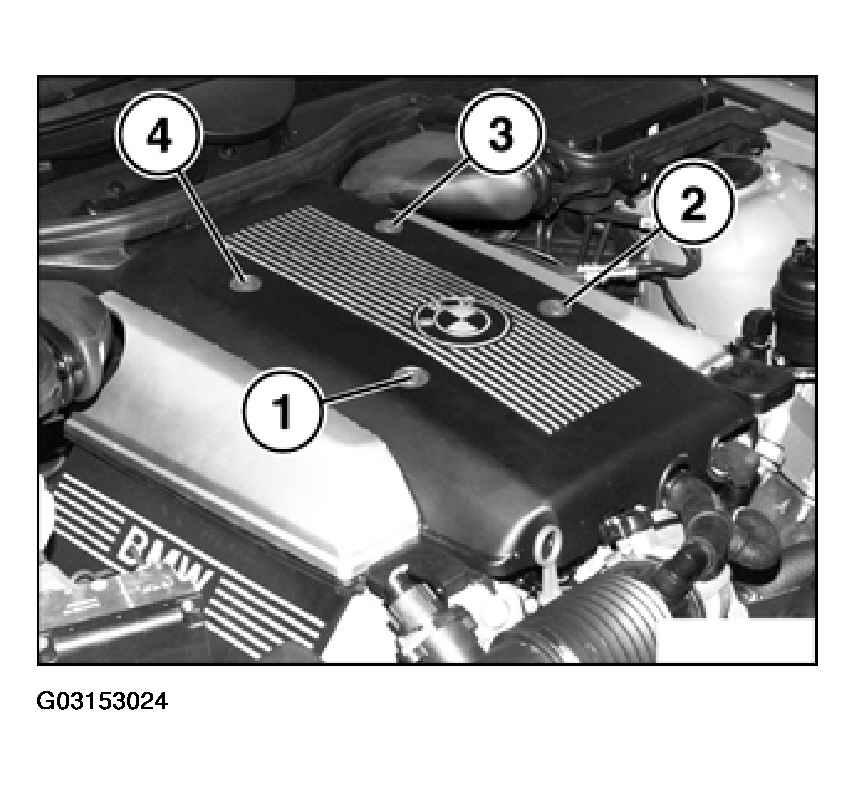

Fig 2: Identifying Press-Stud Fastener On Acoustic Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1).

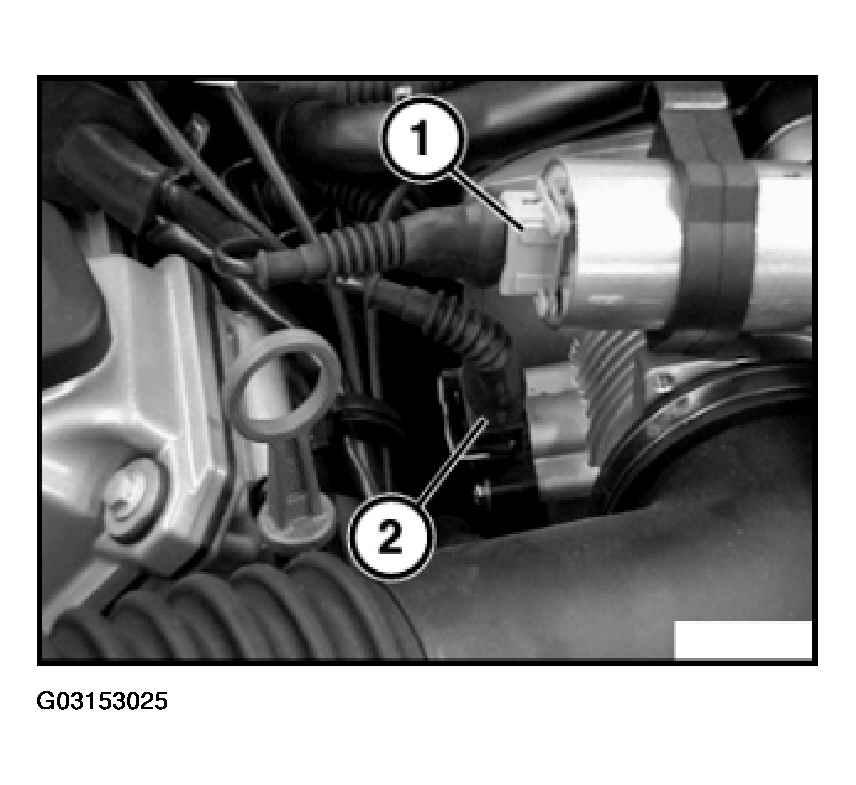

Fig 3: Identifying Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Open clips (1), unfasten hose clip (2) and remove hose. Lift off upper section of air filter housing.

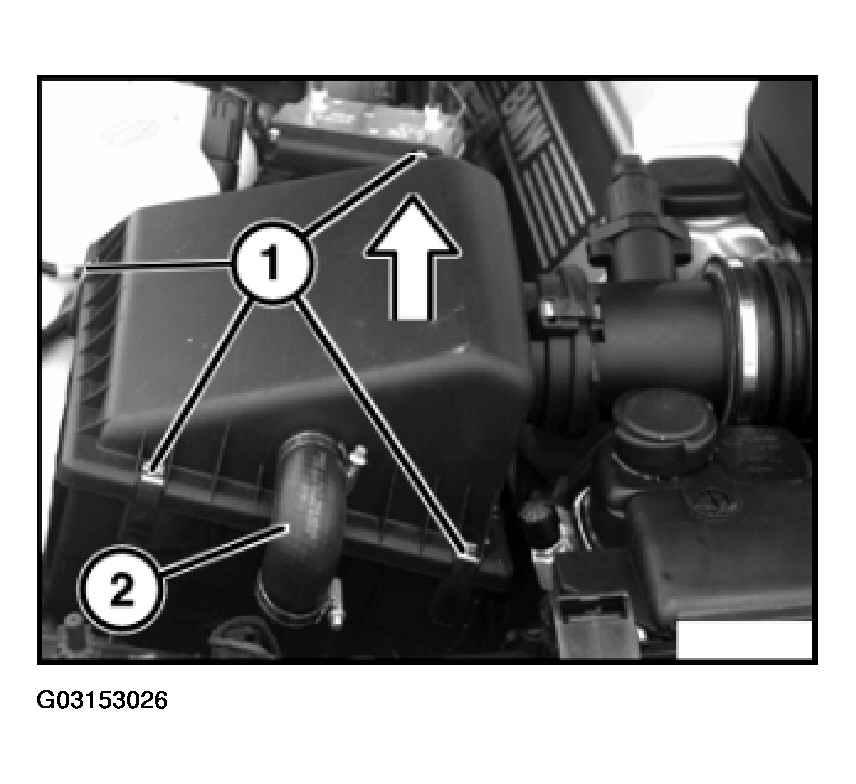

Fig 4: Lifting Off Upper Section Of Air Filter Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten hose clips (1) and (2).

Remove suction hoses with upper section of air filter housing.

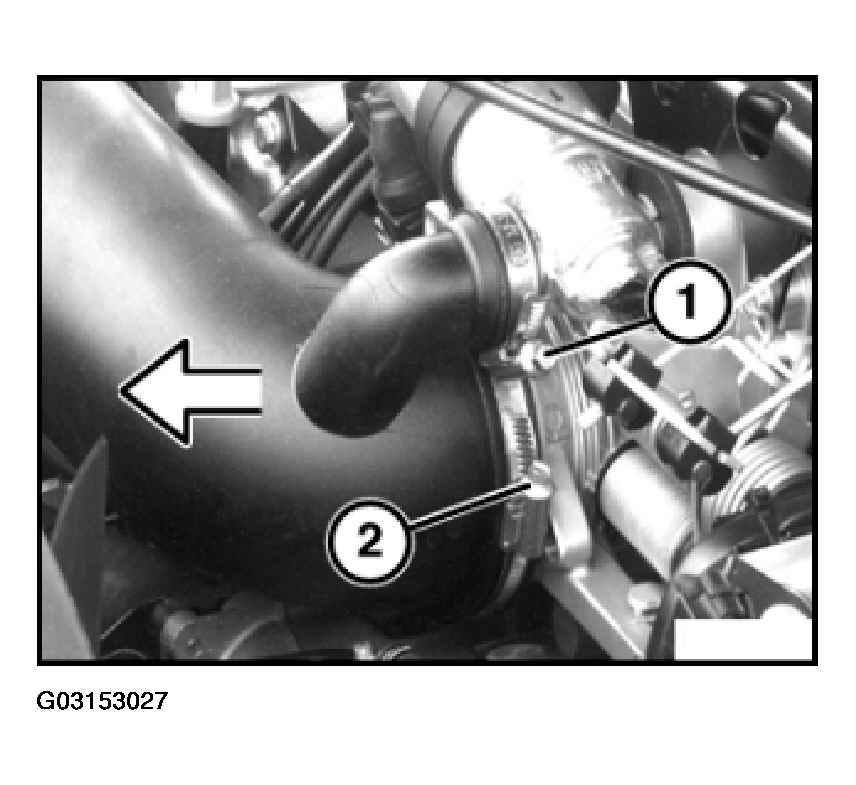

Fig 5: Removing Suction Hoses With Upper Section Of Air Filter Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect retainer (1).

Remove idle speed control valve.

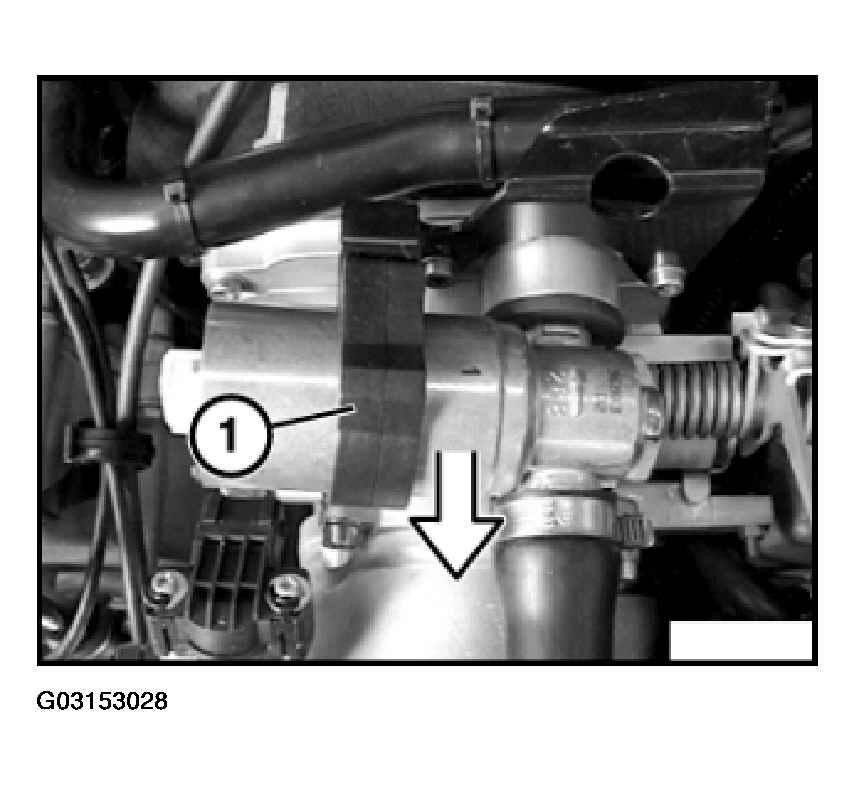

Fig 6: Disconnecting Retainer

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

1. Install sealing ring in throttle valve flange first.

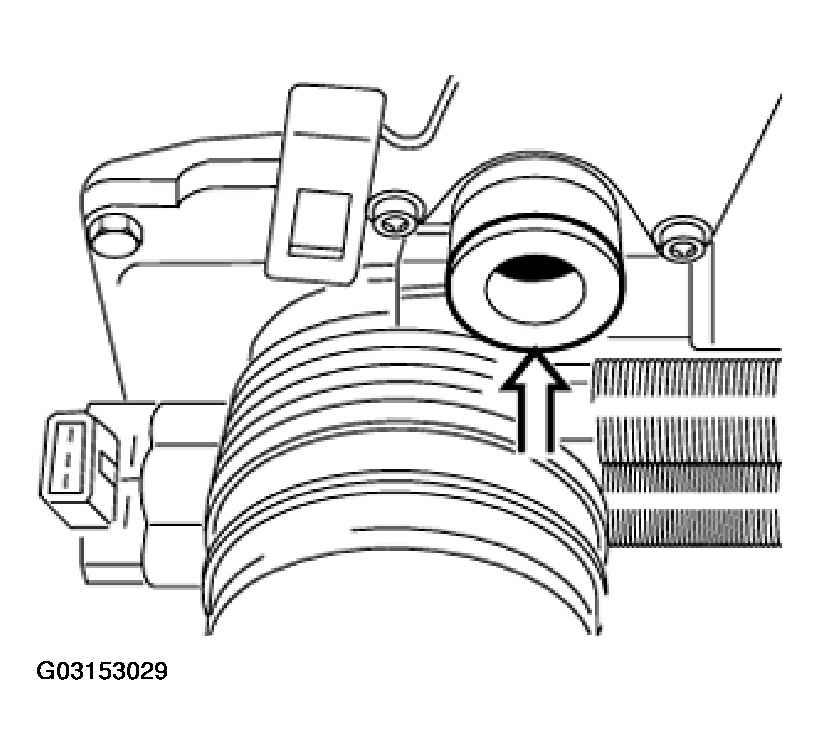

Fig 7: Installing Sealing Ring In Throttle Valve Flange

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

1. To ensure that air intake unit is free of leaks, seals on throttle body and idle speed control valve are clean and not damaged. If the sealing rings are damaged, they must be replaced.
2. Interrogate fault memory of DME control unit, check faults in memory then cancel fault memory.

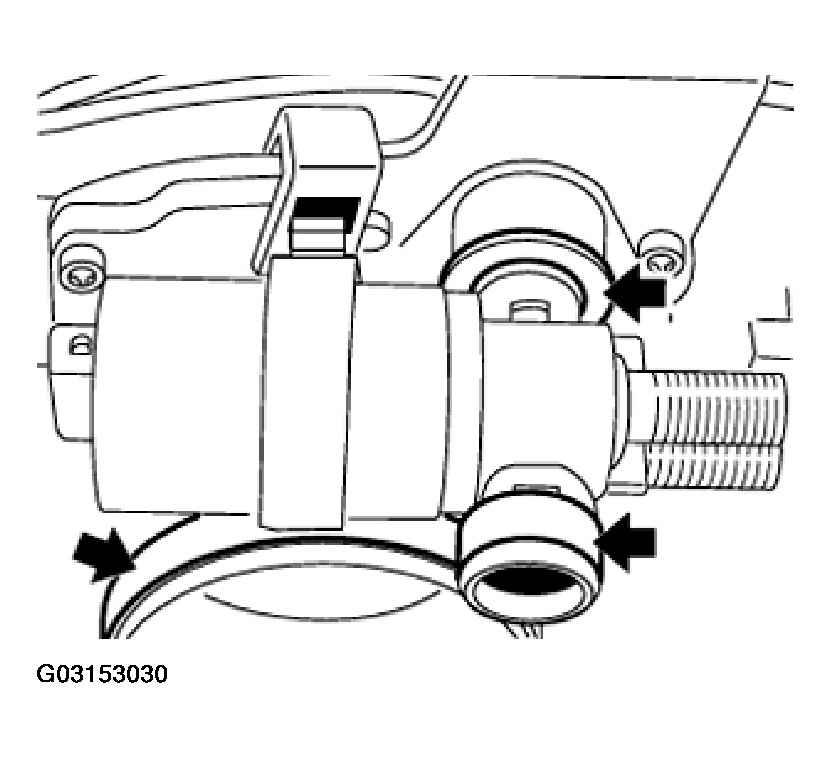

Fig 8: Identifying Seals On Throttle Body And Idle Speed Control Valve

Courtesy of BMW OF NORTH AMERICA, INC.
