13 62 560 Removing and installing/replacing mass air flow sensor (M60, M62, M73)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Interrogate fault memory of DME control unit. Switch off ignition.

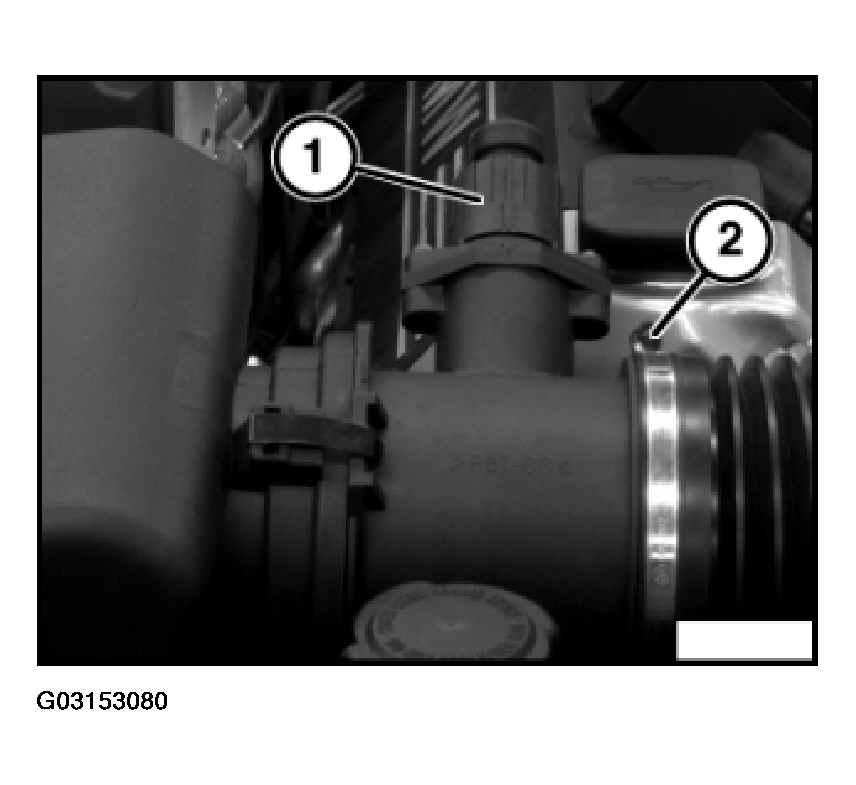

Disconnect plug connection (1) from air-mass flow sensor.

Release hose clip (2).

Detach intake hose from air-mass flow sensor.

Fig 1: Disconnecting Plug Connection From Air-Mass Flow Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

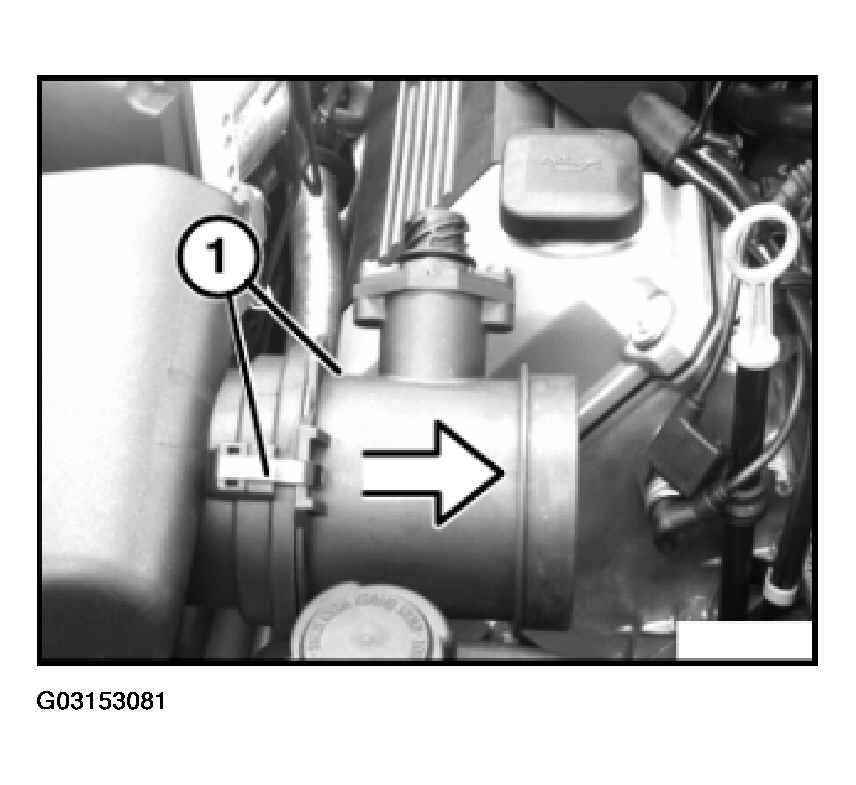

Open clips (1).

Detach air-mass flow sensor from air cleaner upper section.

Fig 2: Disconnecting Air-Mass Flow Sensor From Air Cleaner Upper Section

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

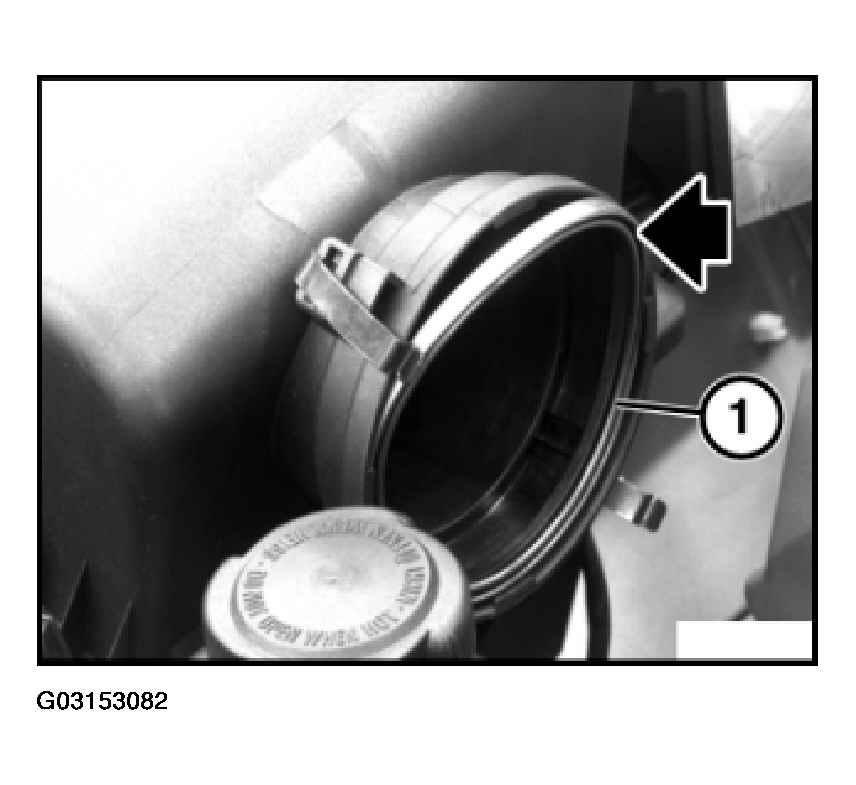

Check seal (1) between air-mass flow sensor and air cleaner upper section for damage, replace if necessary.
To facilitate assembly, coat seal with acid-free grease.

Read out fault memory of control unit of Digital Motor Electronics (DME).

Check stored fault messages.

Rectify faults.

Now clear the fault memory.

Fig 3: Checking Seal Between Air-Mass Flow Sensor And Air Cleaner Upper Section

Courtesy of BMW OF NORTH AMERICA, INC.
