13 62 511 Replacing temperature sensor for intake air (M60, M62)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Switch off ignition.

Version 1:

(acoustic cover screwed down)

Remove seal caps (1) and unfasten nuts (2).

Remove acoustic cover.

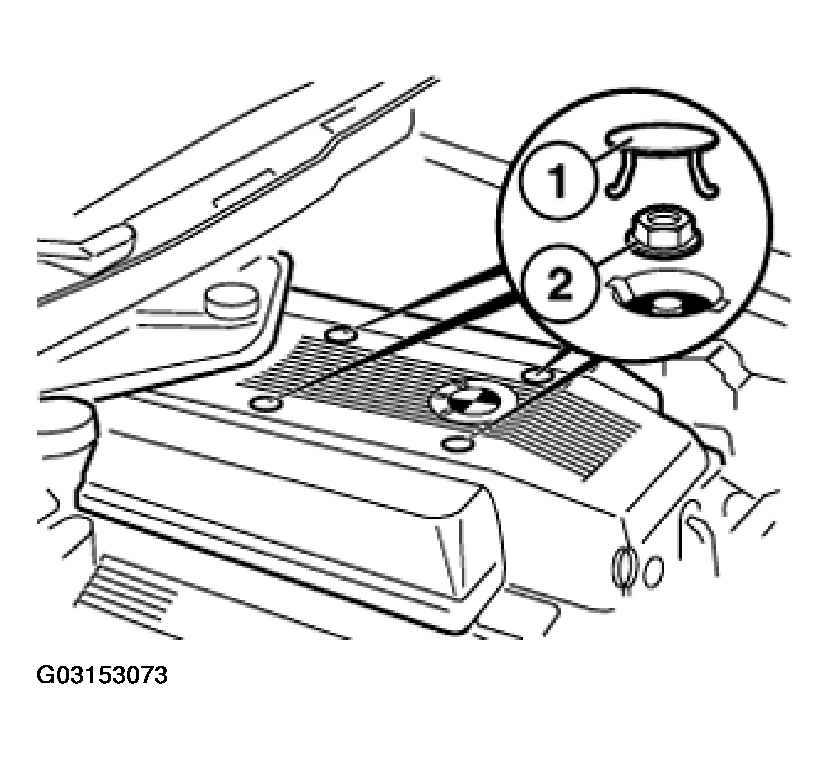

Fig 1: Removing Acoustic Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Version 2:

(acoustic cover with press-stud fastener)

Open press-studs (1.. 4) one at a time, at the same time lifting the acoustic cover slightly. Once all four press-studs have been opened, remove the acoustic cover.

Installation

Position acoustic cover and press downwards until press-studs (1.. 4) click into place.

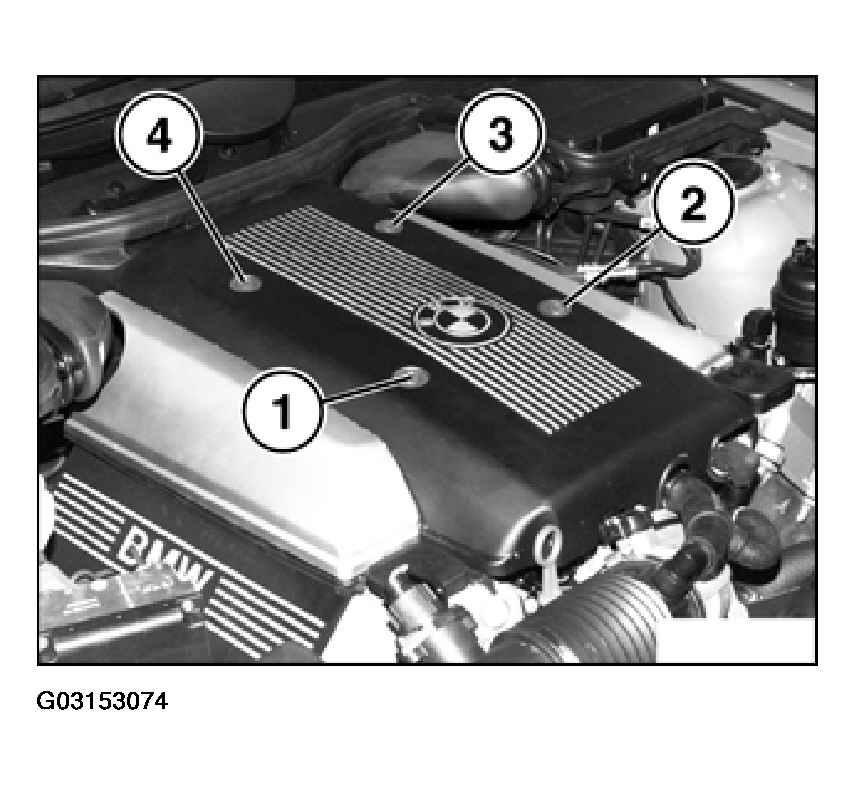

Fig 2: Identifying Acoustic Cover With Press-Stud Fastener

Courtesy of BMW OF NORTH AMERICA, INC.

M60 and E31 M62:

Temperature sensor is fitted in intake manifold:

Press down retaining spring.

Disconnect connector.

Unfasten temperature sensor.

Tightening torque, refer to SENSOR FOR CONTROL UNIT .

Installation

Interrogate fault memory of DME control unit, check faults in memory then cancel fault memory.

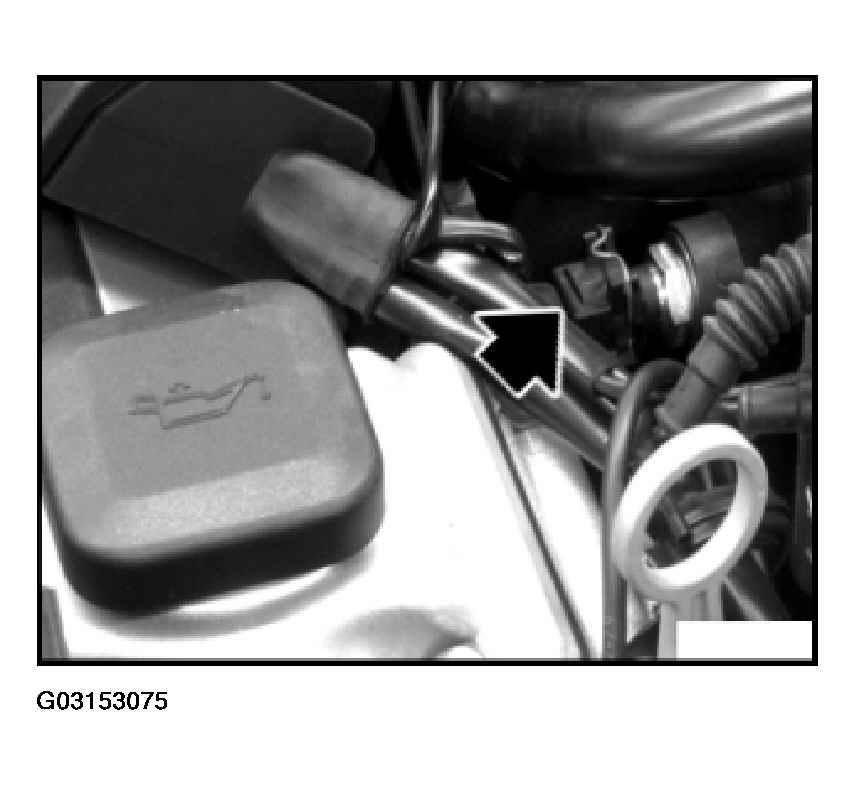

Fig 3: Identifying Temperature Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

M62:

The temperature sensor is clipped into the upper section of intake filter housing.

Disconnect connector. Press locking unit (1) and remove temperature sensor (2).

Installation

Interrogate fault memory of DME control unit, check faults in memory then cancel fault memory.

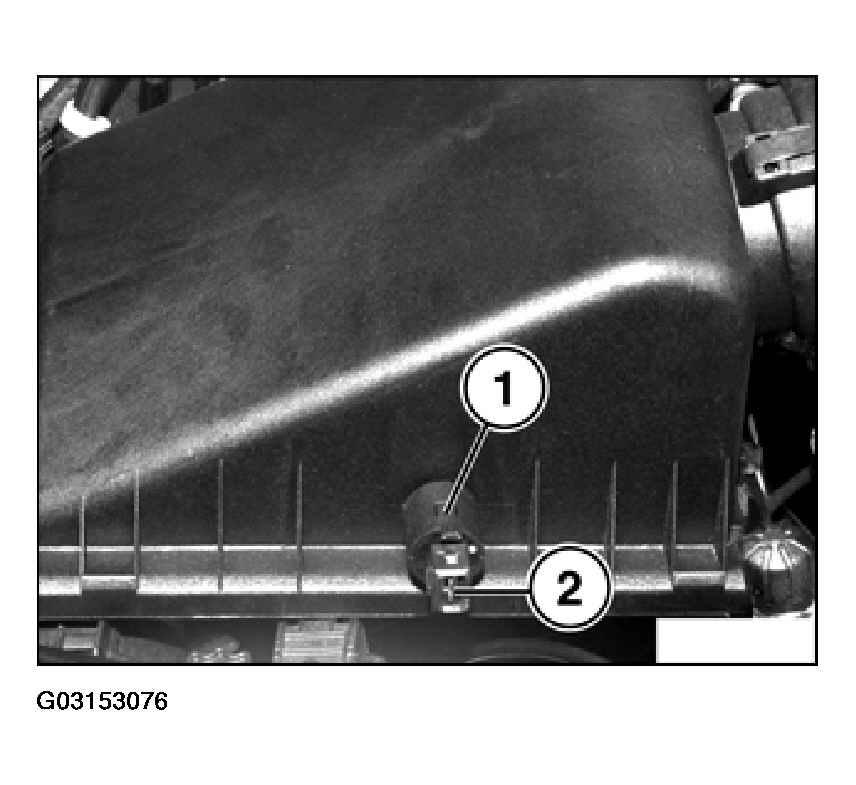

Fig 4: Identifying Temperature Sensor Removing Locking Unit

Courtesy of BMW OF NORTH AMERICA, INC.
