13 31 029 Checking delivery pressure of fuel pump (M62)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Switch off ignition.

CAUTION: The fuel in the fuel lines is under pressure (approx. 3 bar)! Catch and dispose of escaping fuel.

Acoustic cover version 1:

(Acoustic cover screwed down)

Remove sealing caps (1). Release nuts (2).

Remove cover from cylinder head cover.

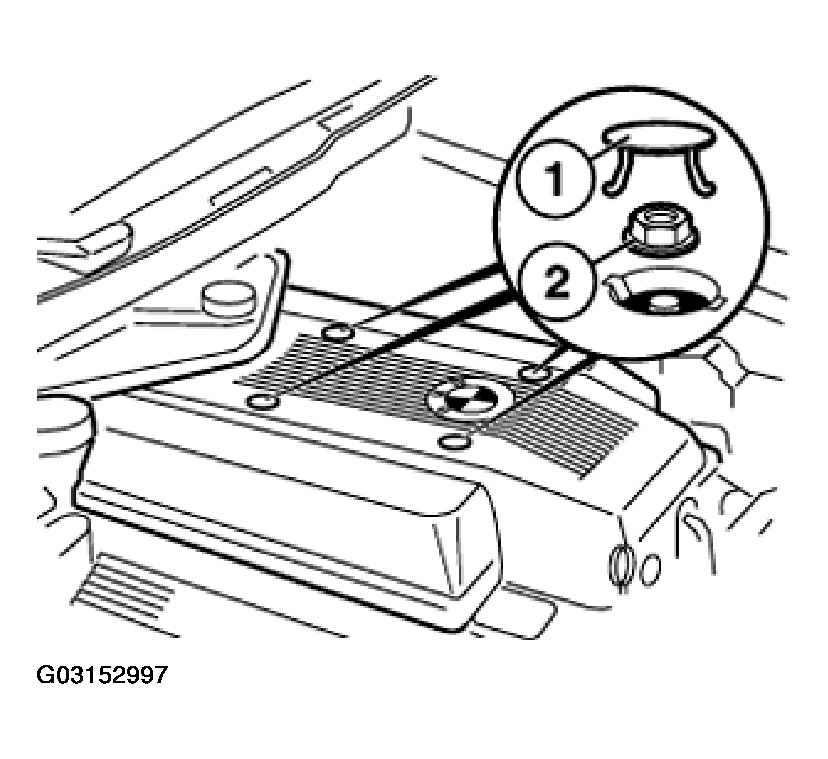

Fig 1: Removing Acoustic Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Acoustic cover version 2:

(Acoustic cover with press-stud fastener)

Press press-stud fasteners (1...4) in succession and simultaneously raise acoustic cover slightly. Remove acoustic cover when all four press-stud fasteners have been unlocked.

Installation

Position acoustic cover and press down until press-stud fasteners (1...4) snap audibly into place.

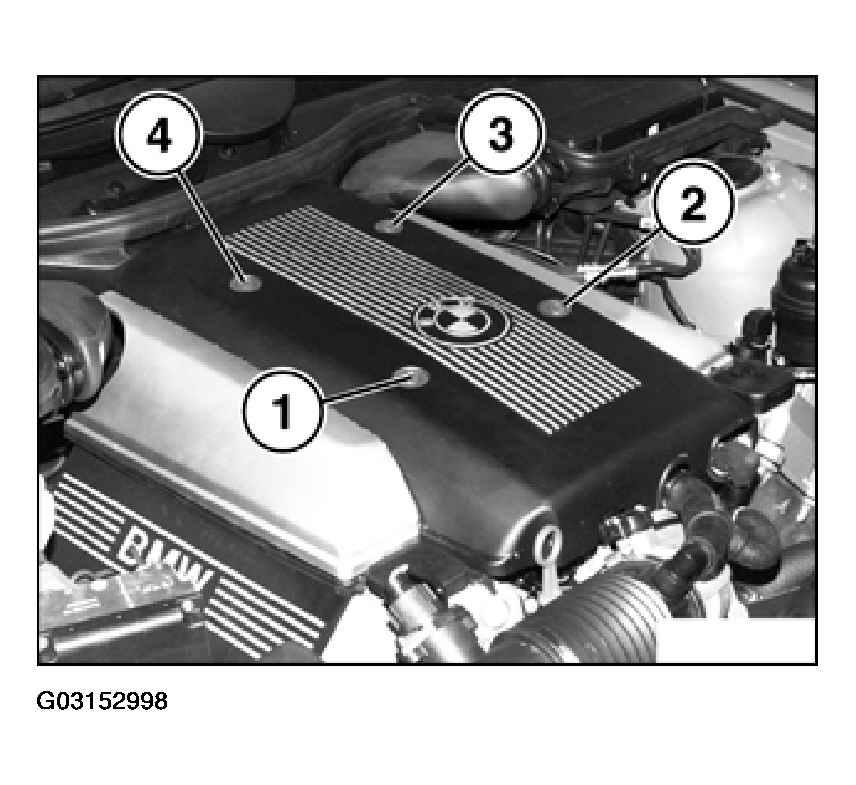

Fig 2: Identifying Press-Stud Fasteners On Acoustic Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Measuring valve on fuel rail:

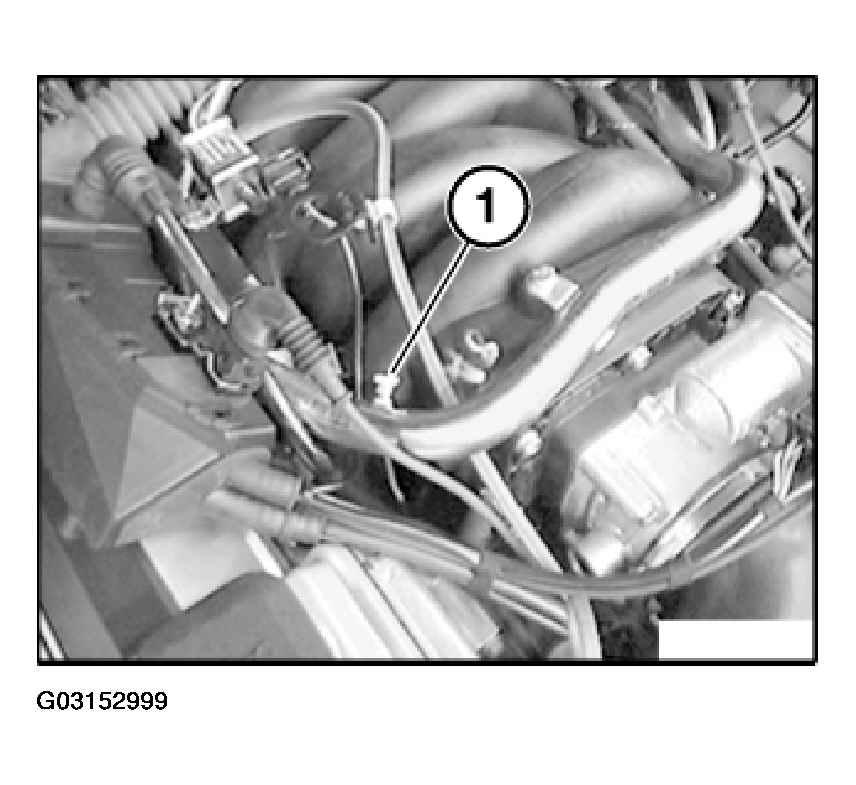

Remove dust cap (1) from measuring valve on fuel rail.

Fig 3: Locating Dust Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Prepare special tool kit 13 5 220 (comprising 13 5 221 and 13 5 222).

Connect special tool kit 13 5 220 to pressure sensor of DIS Tester.

Connect pressure sensor to DIS Tester.

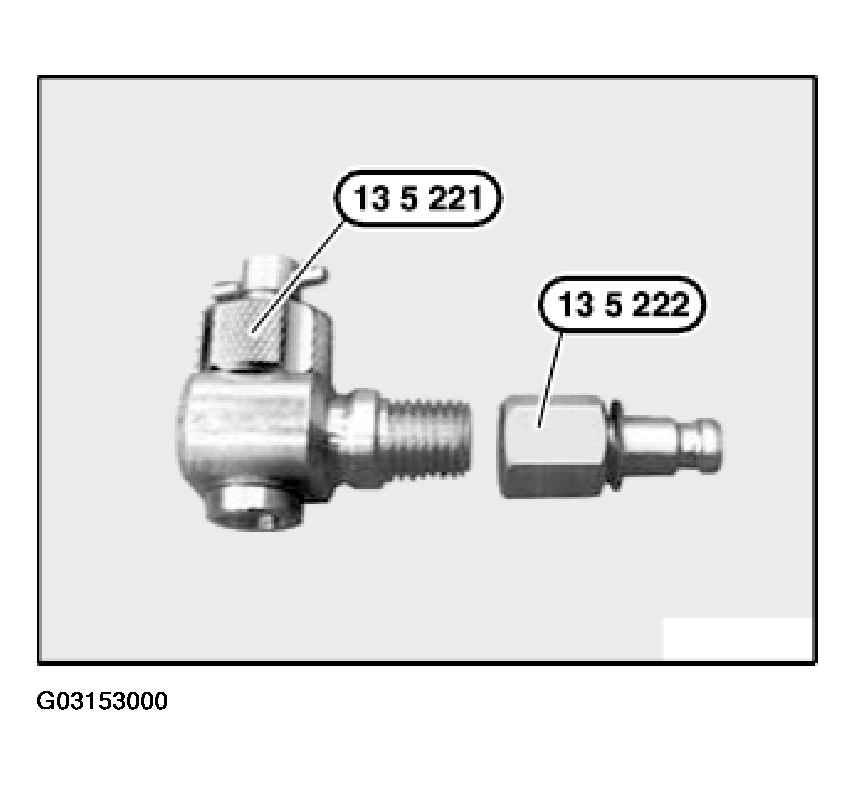

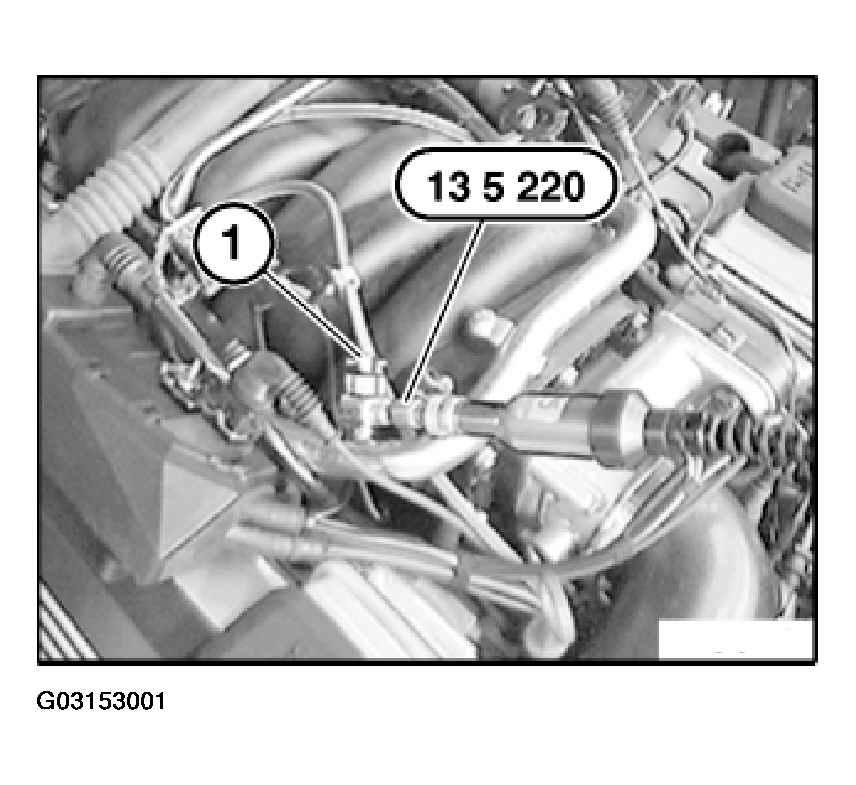

Fig 4: Identifying Special Tools 13 5 221 And 13 5 222

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew check valve (1) on special tool kit 13 5 220.

Mount special tool kit 13 5 220 on fuel rail and tighten knurled nut until hand-tight.

Start engine.

Screw in check valve (1) until a pressure reading is indicated on DIS Tester.

CAUTION: Do not under any circumstances screw in the check valve up to the mechanical stop. This could damage the valve in the pressure regulator housing.

Fig 5: Removing Check Valve On Special Tool Kit 13 5 220

Courtesy of BMW OF NORTH AMERICA, INC.

Fuel hoses with quick-release coupling without integrated unlocking device:

Unlock and remove fuel feed line with special tool 16 1 050.

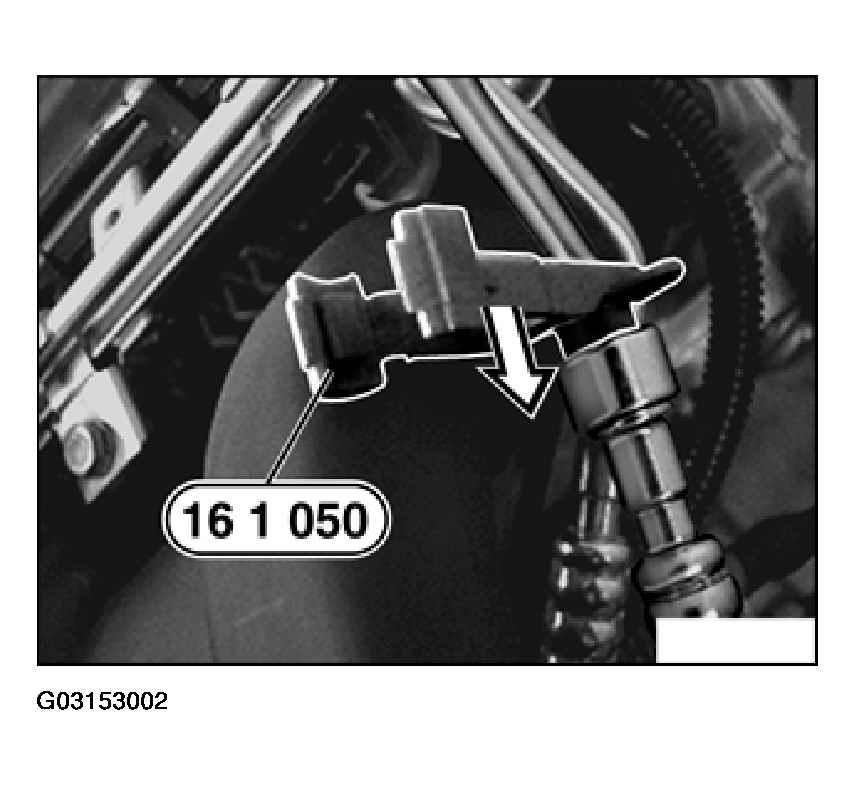

Fig 6: Removing Fuel Feed Line Using Special Tool 16 1 050

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

Check sealing ring in quick-release coupling of fuel hose and sealing surface on fuel line for damage and replace if necessary.
Coat sealing ring in quick-release coupling of fuel hose with anti-friction agent.

Version, fuel hoses with integrated unlocking facility:

Press fuel hose (1) downwards and keep pressed.

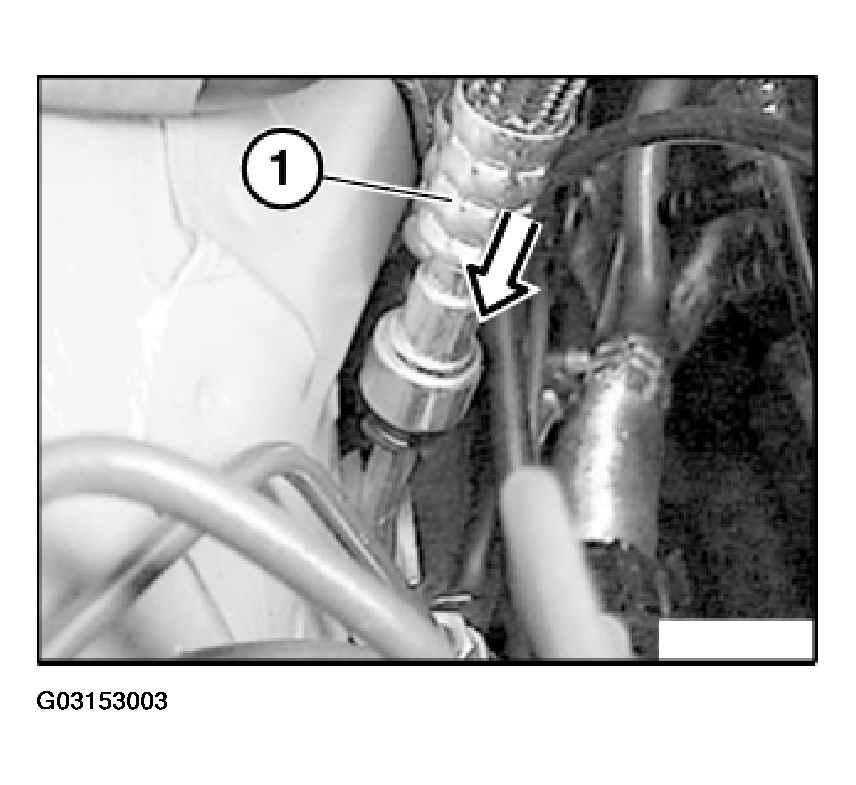

Fig 7: Pressing Fuel Hose Downwards

Courtesy of BMW OF NORTH AMERICA, INC.

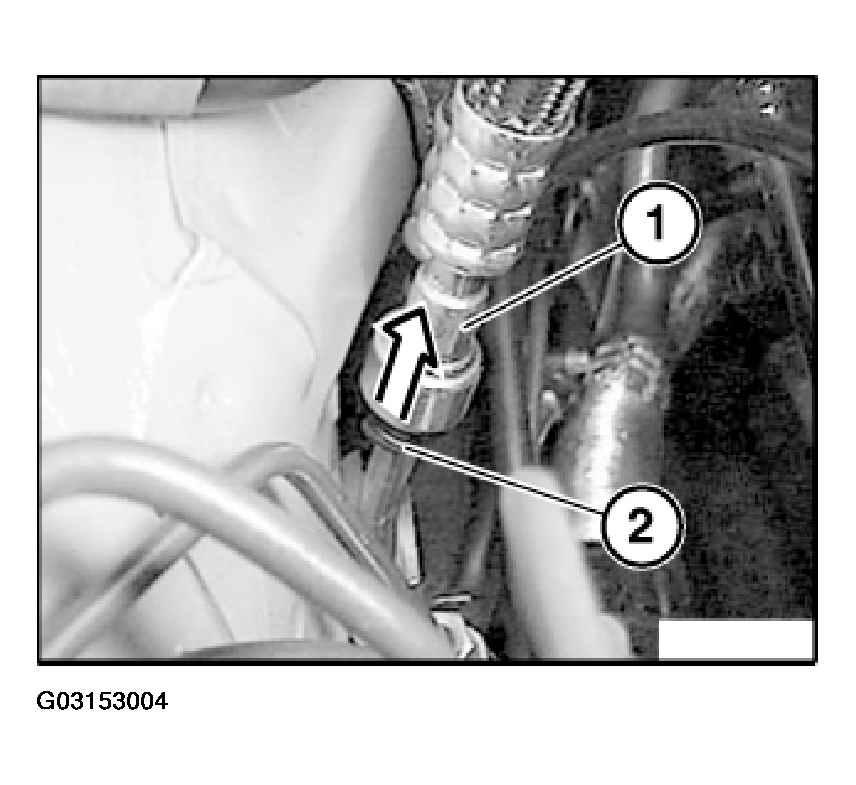

Press unlocking ring (2) upwards, keep pressed and detach fuel hose (1).

Fig 8: Pressing Unlocking Ring Upwards For Disconnecting Fuel Hose

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

Check O-ring in fuel hose and sealing surfaces on fuel lines for damage; replace components if necessary.
Coat O-ring for assembly with anti-friction agent.

Connect special tool 13 5 270 to detached fuel hose and to open pipe neck.

Connect special tool 13 5 270 to pressure sensor (2) of DIS Tester.

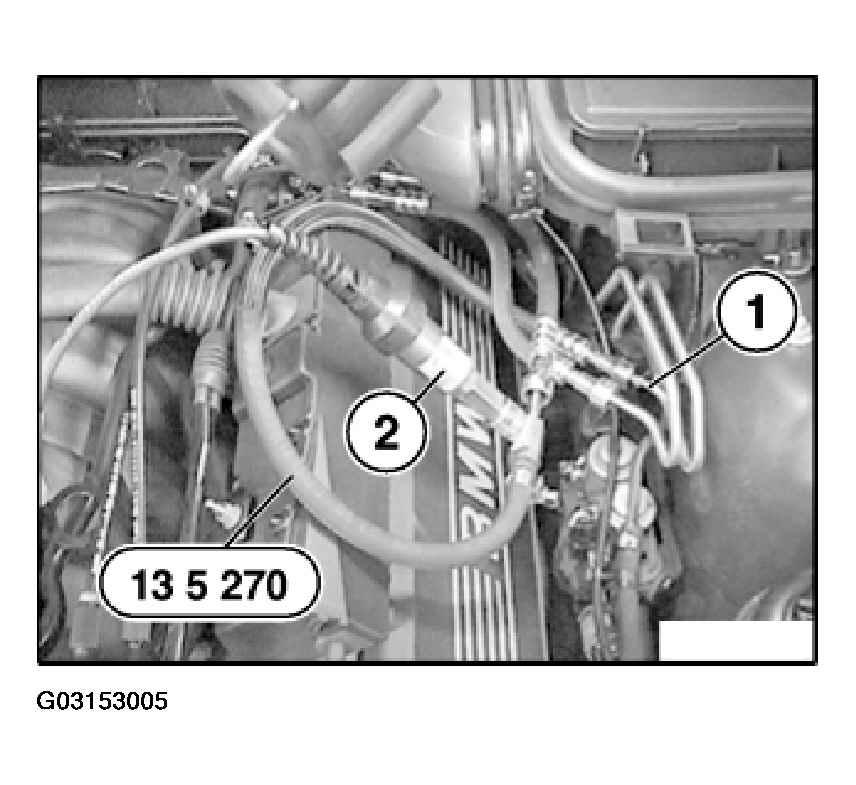

Fig 9: Connecting Special Tool 13 5 270 To Pressure Sensor Of DIS Tester

Courtesy of BMW OF NORTH AMERICA, INC.

Measuring fuel pressure:

Connect pressure sensor to DIS Tester.
Start engine.
Select measuring option.
Multimeter function appears.
Select pressure test.
Read off fuel pressure.

Test pressure, refer to 13 53 INJECTORS AND LINES, FUEL PRESSURE REGULATOR in TECHNICAL DATA - 540i.

Switch off engine.

Check fuel pump:

Fold right side trim in luggage compartment to one side. The relay bracket is installed above the battery.

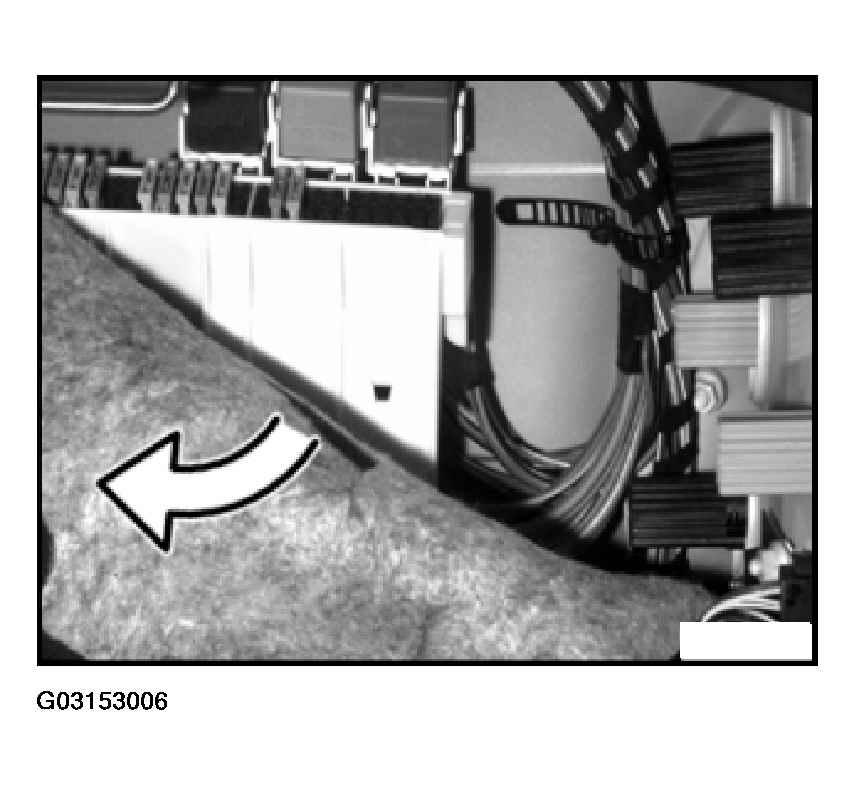

Fig 10: Folding Right Side Trim In Luggage Compartment

Courtesy of BMW OF NORTH AMERICA, INC.

Detach fuel pump relay (2).

Check whether fuel pump no longer starts up during engine starting procedure (engine fails to start).

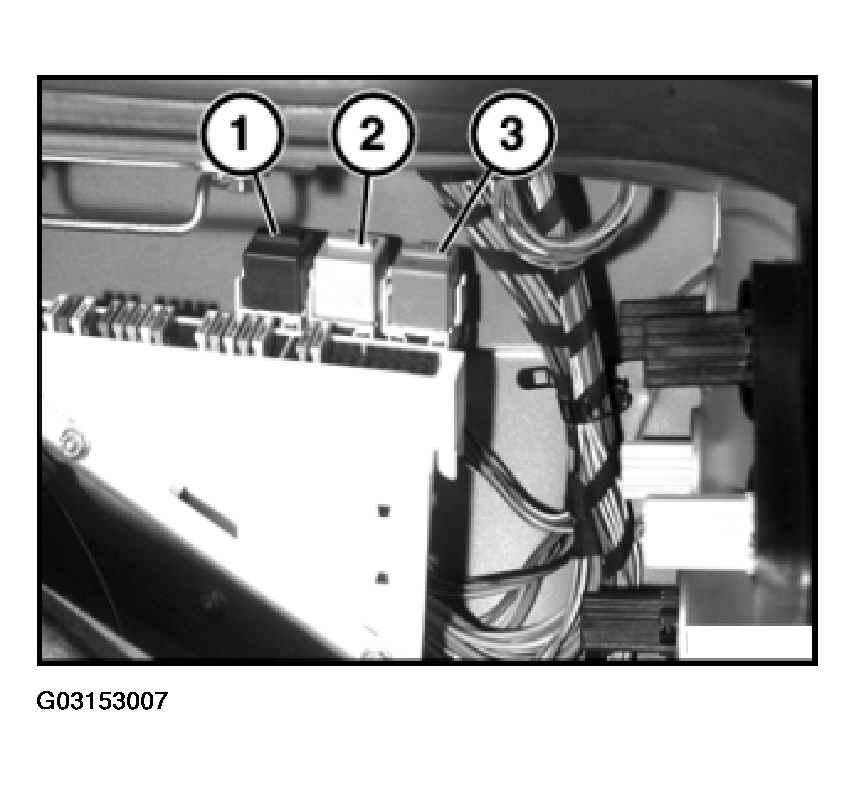

Fig 11: Identifying Fuel Pump Relay (2)

Courtesy of BMW OF NORTH AMERICA, INC.

Connect special tool 61 3 050 to terminal (87) and terminal (30). Actuate button and read off delivery pressure on DIS Tester.

Delivery pressure, refer to 16 14 FUEL PUMP E39 GASOLINE-DRIVEN CARS in TECHNICAL DATA - 540i.

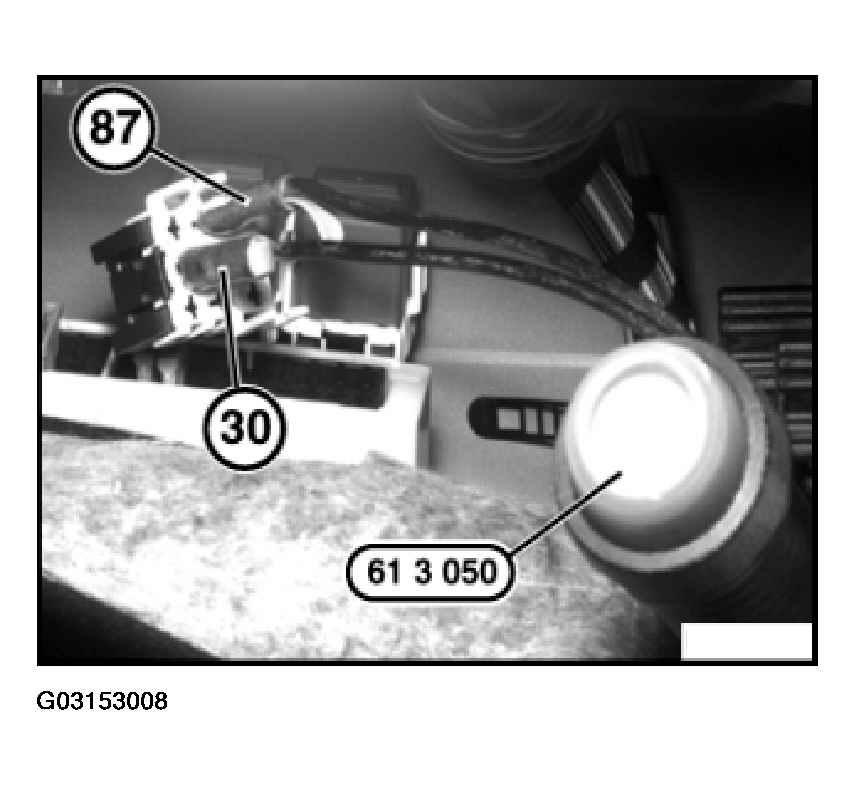

Fig 12: Connecting Special Tool 61 3 050 To Terminals

Courtesy of BMW OF NORTH AMERICA, INC.

Keep special tool 133010 available for further tests.

Installation

Interrogate fault memory of DME control unit. Check stored fault messages. Rectify faults. Now clear the fault memory.

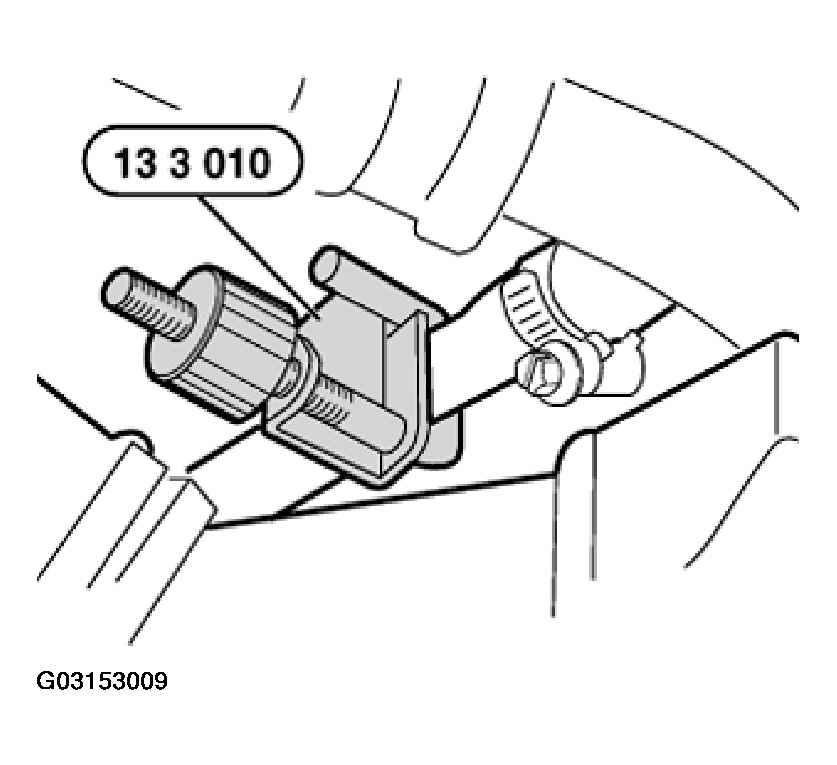

Fig 13: Identifying Special Tool 133010

Courtesy of BMW OF NORTH AMERICA, INC.
