13 90 500 Replacing tank vent valve (M62): Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Interrogate fault memory of DME control unit.

Switch off ignition.

Version 1:

Tank venting valve (1) is fitted in front left wheel arch.

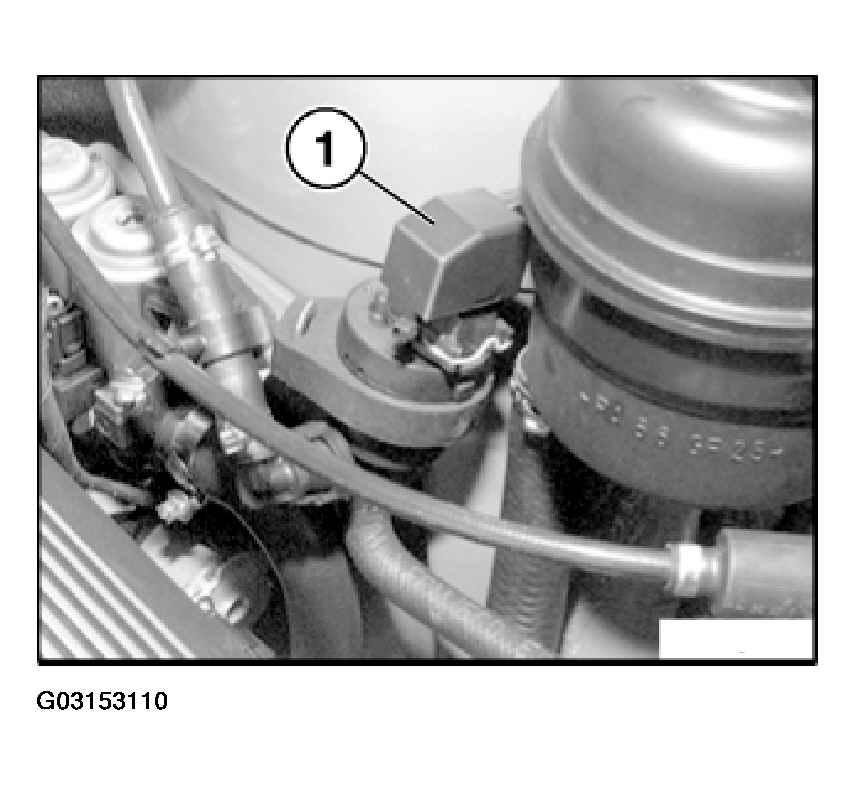

Fig 1: Identifying Tank Venting Valve

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1).

Release hose clamp (2) and detach fuel hose.

Open fastener (3) and detach hose.
