13 90 500 Replacing tank vent valve (M62): Installation:

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Always replace clip and fuel hose.
Read out fault memory of control unit of Digital Motor Electronics (DME). Check stored fault messages. Rectify faults and clear fault memory.

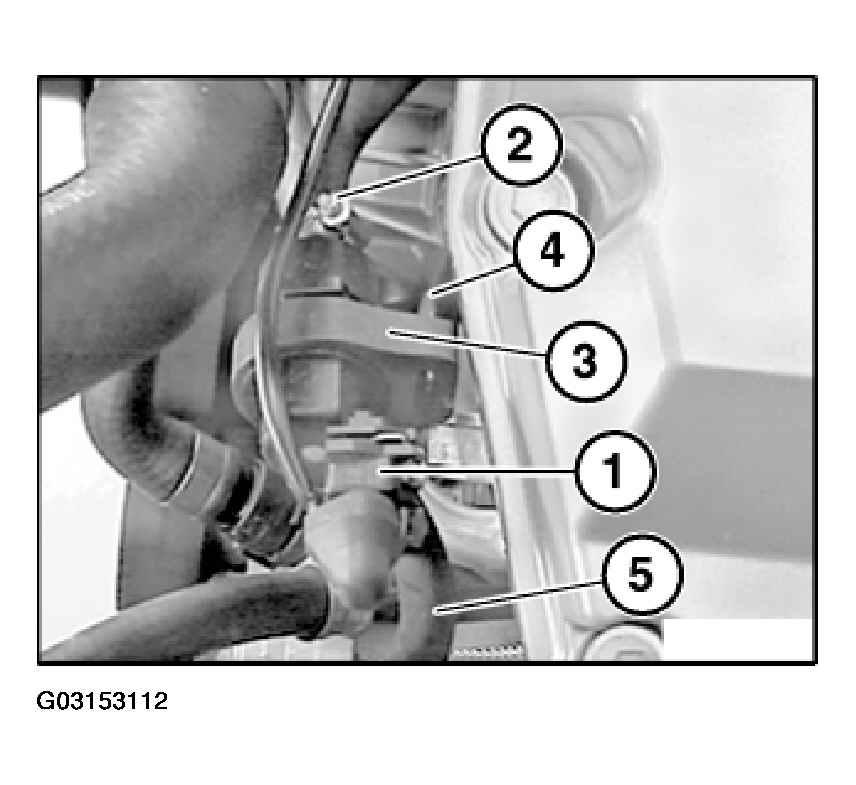

Fig 1: Disconnecting Fuel Hose

Courtesy of BMW OF NORTH AMERICA, INC.

Version 2:

Disconnect plug connection (1).

Release hose clamp (2) and detach hose.

Remove tank venting valve (3) from bracket (4).

Open fastener and detach fuel hose (5).

Always replace clip and fuel hose.
Read out fault memory of control unit of Digital Motor Electronics (DME). Check stored fault messages. Rectify faults and clear fault memory.

Fig 1: Removing Tank Venting Valve From Bracket

Courtesy of BMW OF NORTH AMERICA, INC.
