12 12 011 Replacing all spark plugs (M60, M62): Installation
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

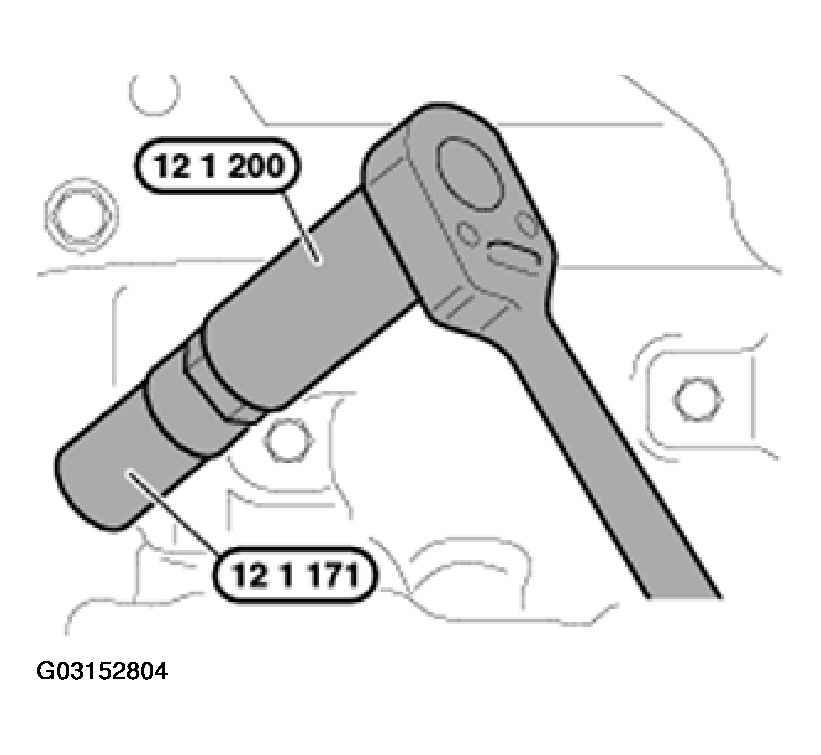

- Tighten down spark plugs with special tool 12 1 171 and special tool 12 1 200 (torque limiter).
- Without special tool 12 1 200, observe tightening torque. See ENGINE ELECTRICAL SYSTEM - TIGHTENING TORQUE .
- Tightening torque,
- refer to 12 12 1AZ in ENGINE ELECTRICAL SYSTEM - TIGHTENING TORQUE .
