12 13 520 Replacing a spark plug connector (M60, M62, M54)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Switch off ignition.

Remove ignition coils.

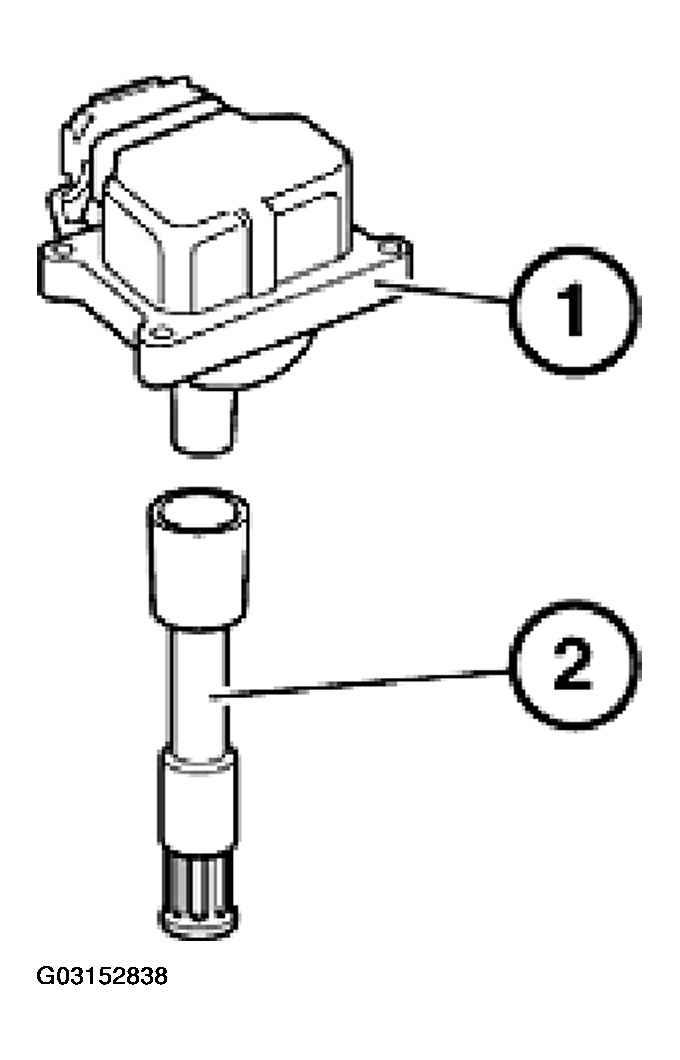

Detach ignition coil (1) from spark plug connector (2).

Fig 1: Detaching Ignition Coil From Spark Plug Connector

Courtesy of BMW OF NORTH AMERICA, INC.
