11 36 590 Removing and installing/replacing solenoid valve of camshaft adjustment unit, right (M62 VANOS from 9/98)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.
Remove intake filter housing with air-mass flow sensor.

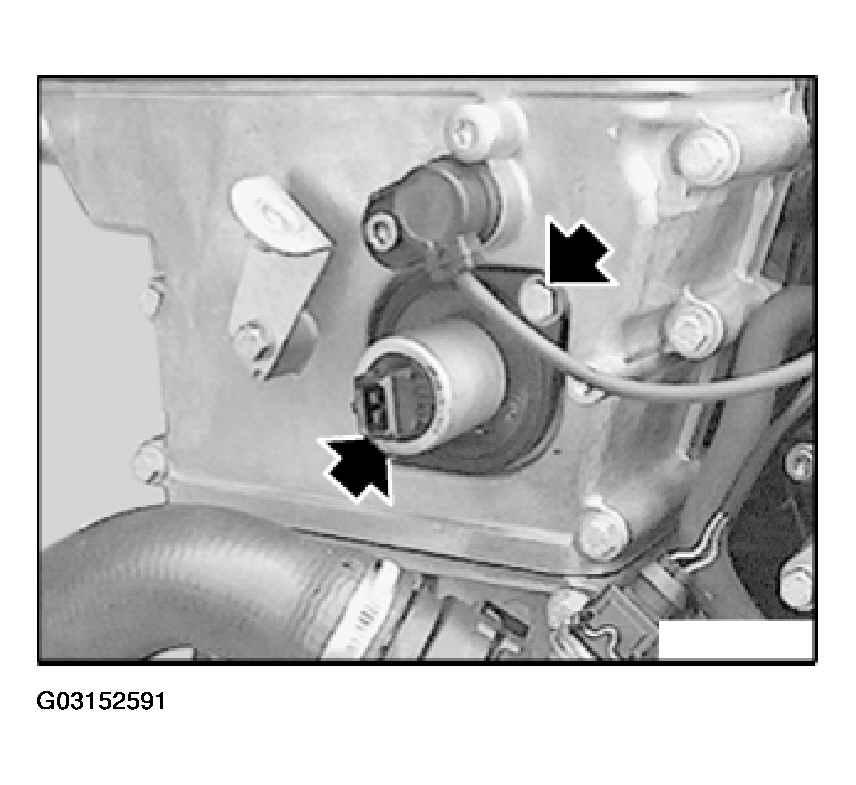

Release screws on sealing flange.
NOTE:
The sealing flange seals the timing case cover via the solenoid valve.
If necessary, clean solenoid valve with a cloth.

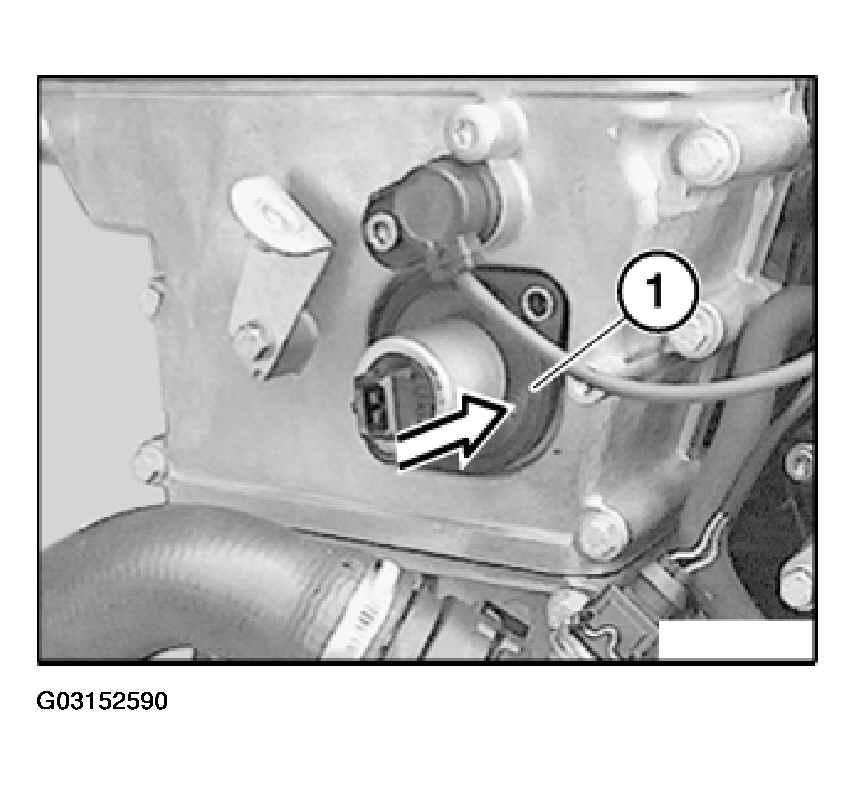

Remove sealing flange (1).
NOTE:
Once it has been removed, oil drips from the solenoid valve.
Have a cleaning cloth ready.
Make sure no oil drips onto the belt drive. Remove any remnants of oil immediately with cleaning cloth.
Have a cleaning cloth ready.
Make sure no oil drips onto the belt drive. Remove any remnants of oil immediately with cleaning cloth.

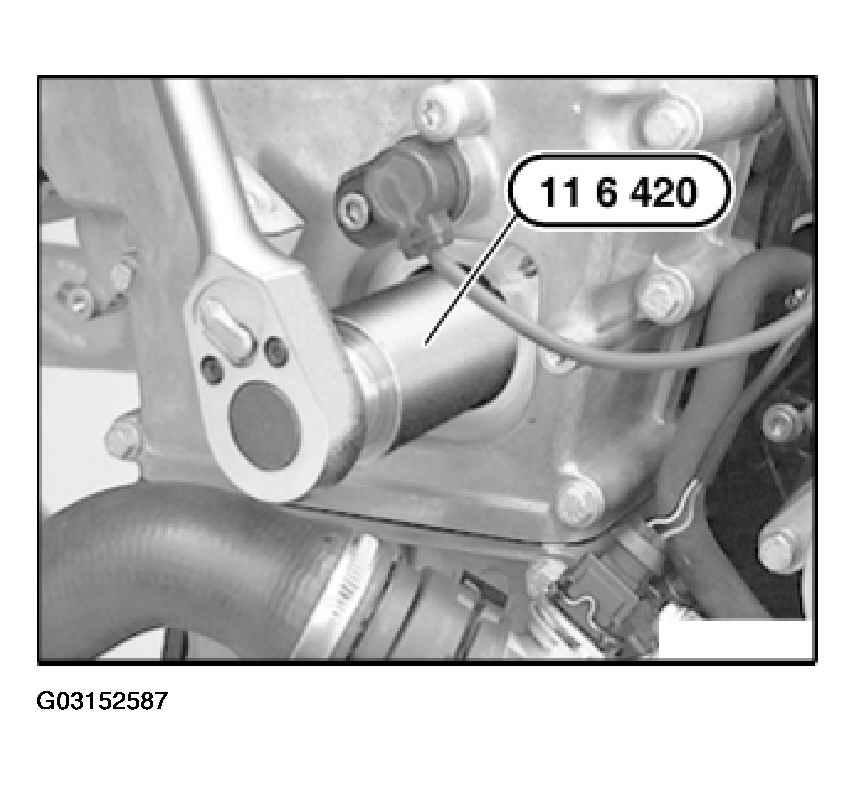

Release solenoid valve with special tool 11 6 420.
Installation
Install solenoid valve (1).

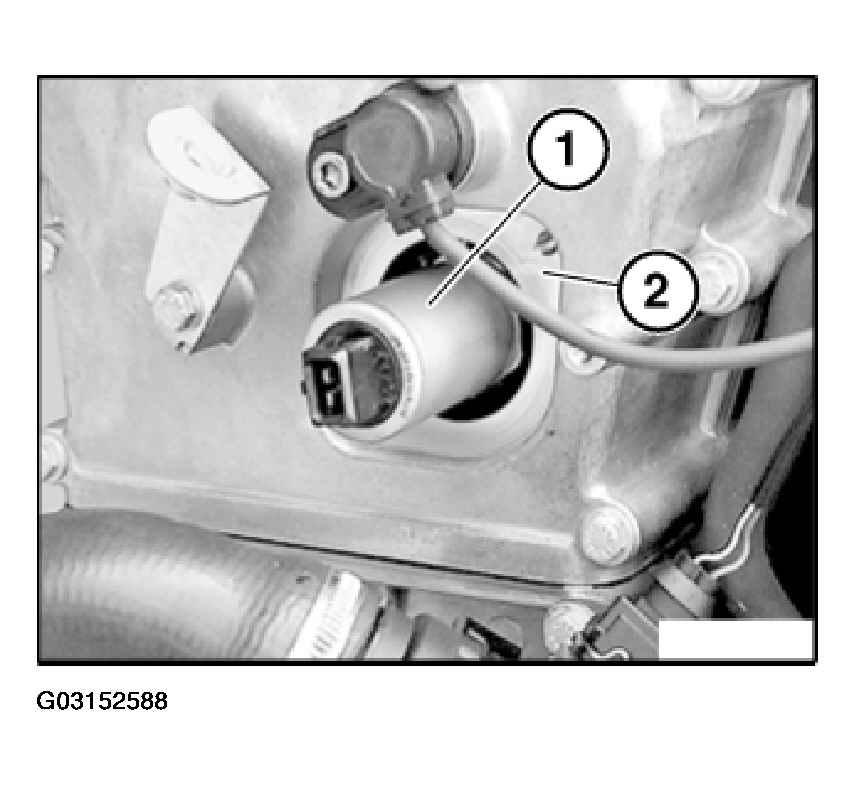

Clean solenoid valve (1) and sealing face (2).
Installation
Tighten down solenoid valve with special tool 11 6 420.
Tightening torque, refer to 11 36 12AZ in ENGINE - TIGHTENING TORQUES - 540i .
Installation
Check sealing flange (1), replace if necessary.
Apply a light coat of oil to inside of sealing flange (1) at sealing face to solenoid valve and carefully install.
Installation

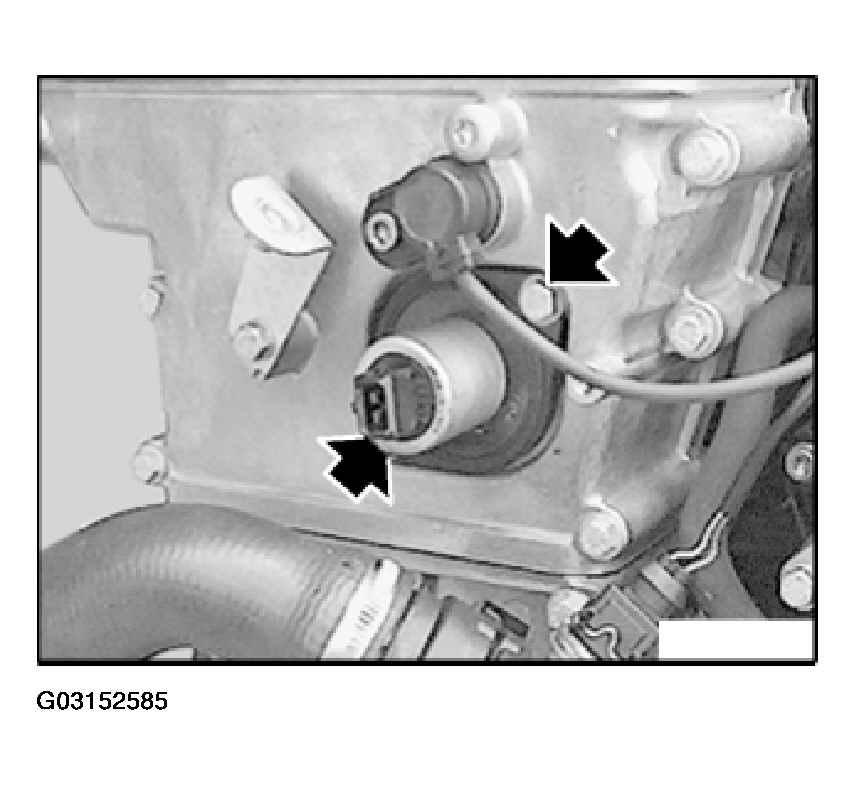

Insert screws on sealing flange and tighten down.
