Checking engine oil pressure with pressure gauge

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Install special tool 13 3 063 and special tool 13 3 061 (pressure gauge).

Start engine and check engine oil pressure.

Specified value.

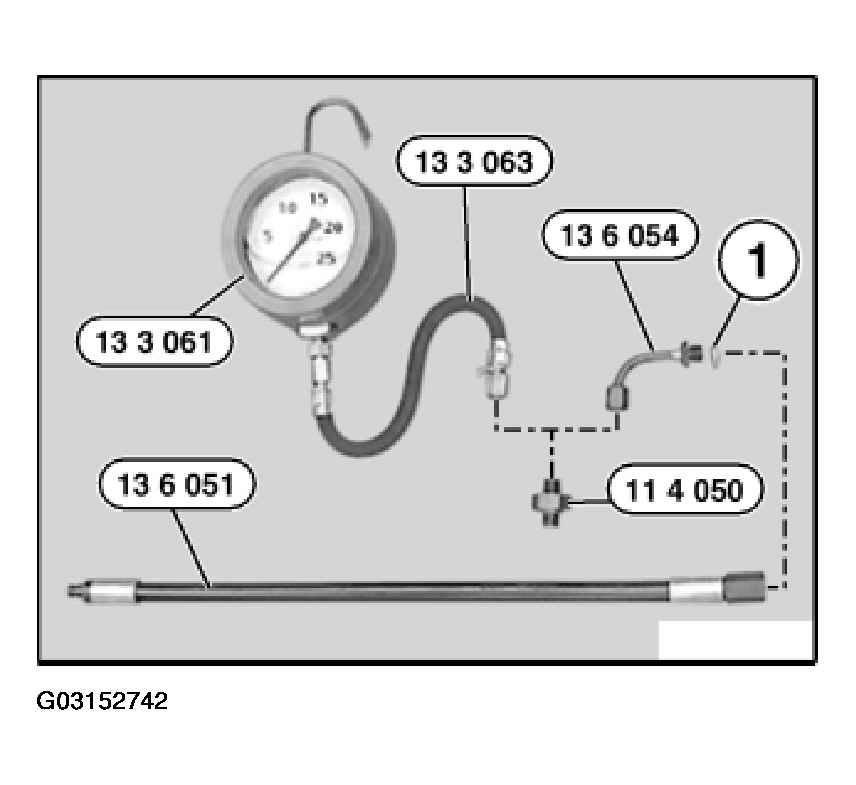

Fig 1: Checking Engine Oil Pressure
G03152742Courtesy of BMW OF NORTH AMERICA, INC.
