11 13 510 Removing and installing/replacing upper oil sump section (M60 / M62)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

(engine removed)

Secure engine to special tool 00 1 450.

Remove lower oil sump section.

Remove guide tube for oil dipstick.

Installation:

Replace sealing ring.

Insert sealing ring and washer in oil sump bore.

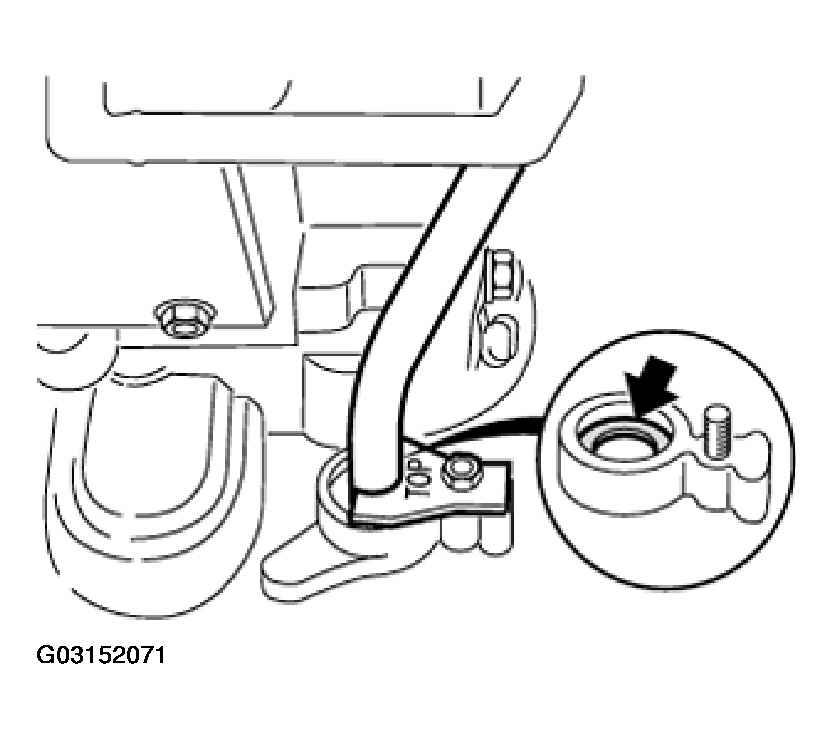

Fig 1: Identifying Sealing Ring

G03152071

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten return line from oil pan.

Installation:

Replace sealing ring.

Tightening torque, see 11 11 5AZ in ENGINE - TIGHTENING TORQUES - 540i .

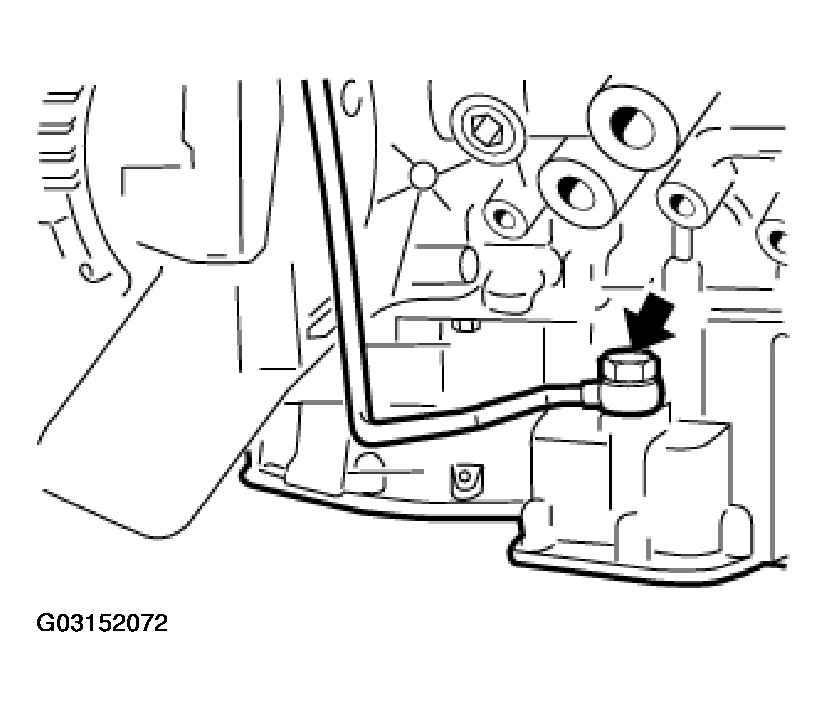

Fig 2: Unfastening Return Line From Oil Pan

G03152072

Courtesy of BMW OF NORTH AMERICA, INC.

Release oil sump screws on inside of oil sump.

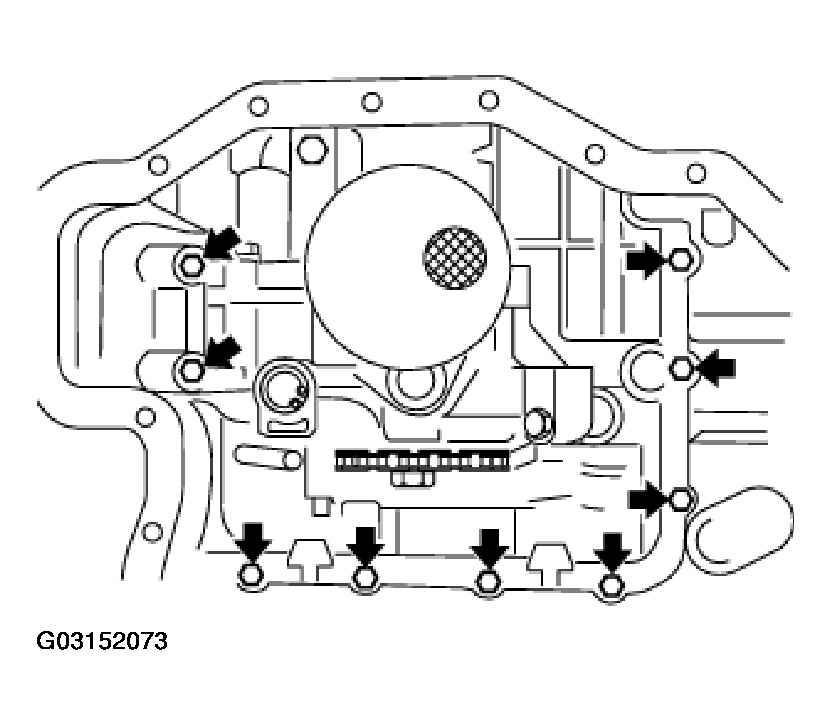

Fig 3: Releasing Oil Sump Screws

G03152073

Courtesy of BMW OF NORTH AMERICA, INC.

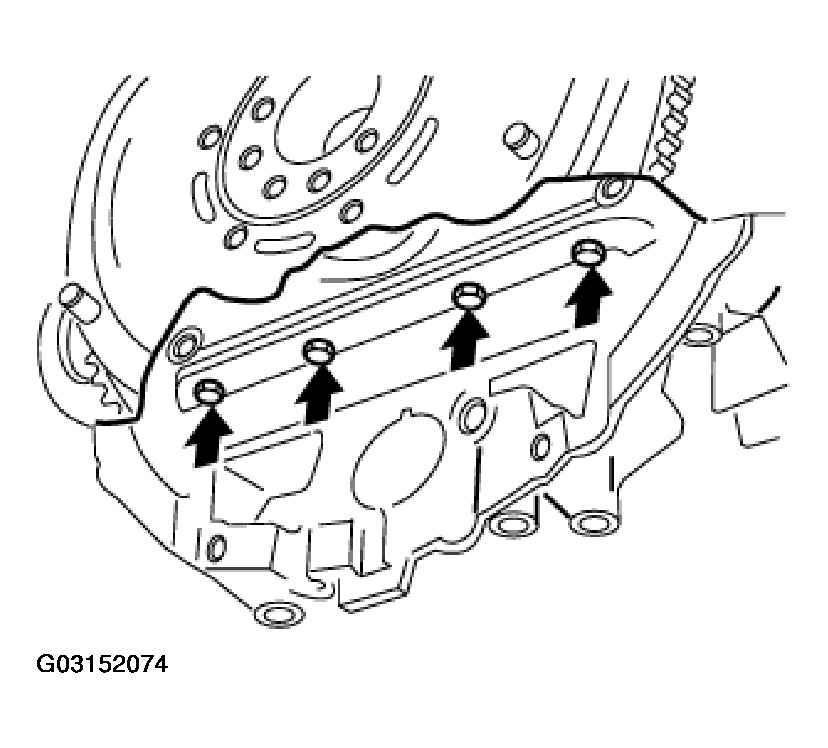

Release oil sump screws pointing to end cover and then remaining oil sump screws.

Fig 4: Releasing Oil Sump Screws Pointing To End Cover

G03152074

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clean sealing faces and free of seal debris. Apply Hylomar SQ 32M liquid sealing compound to edges of partition area.

Replace gasket. Install upper oil sump section and insert all oil sump screws.

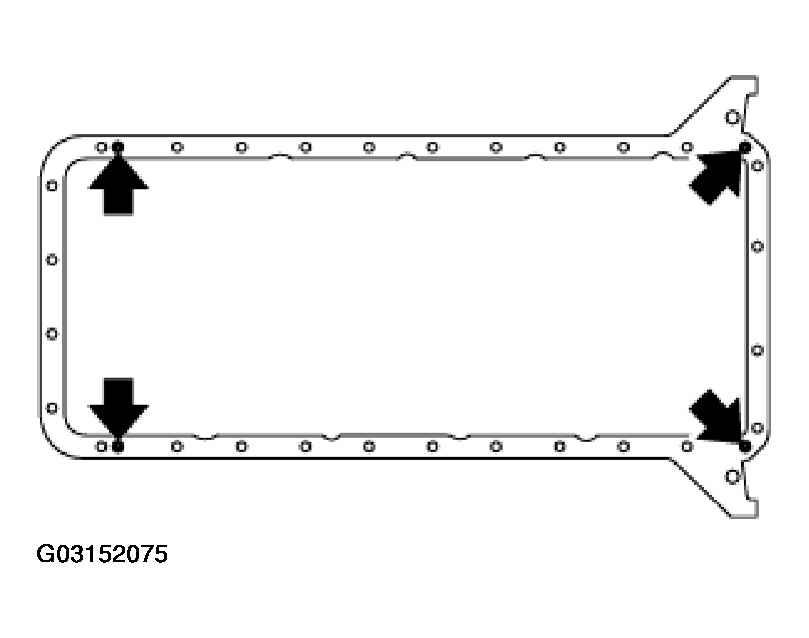

Fig 5: Applying Hylomar SQ 32M Liquid Sealing Compound To Edges Of Partition Area

G03152075

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

In order to exclude torsion stress when installing the transmission later, align the oil pan flush with the engine block on the transmission side.

Tighten all oil sump screws.

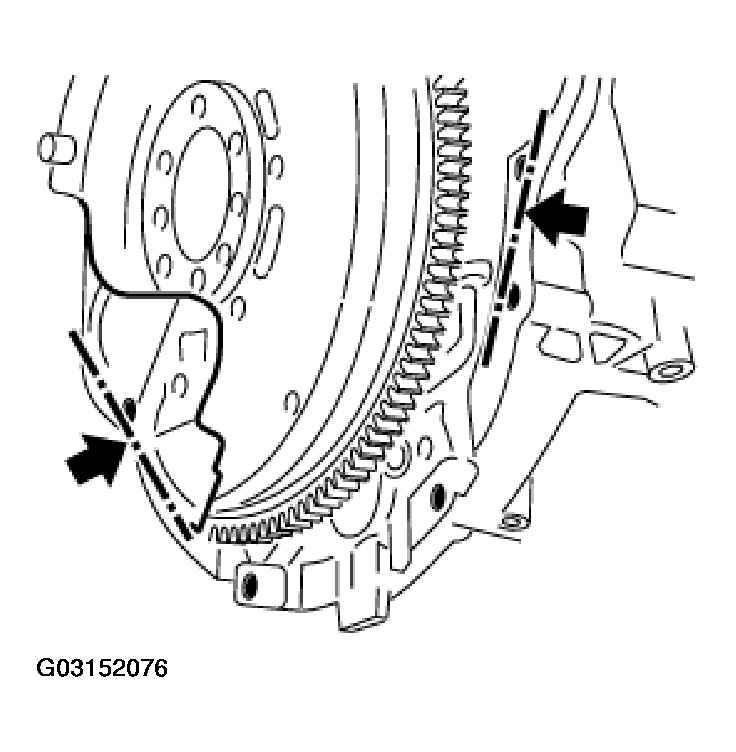

Fig 6: Aligning Oil Pan Flush With Engine Block On Transmission Side

G03152076

Courtesy of BMW OF NORTH AMERICA, INC.
