11 13 020 Removing and installing / replacing lower oil pan section (M60/M62)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Unscrew and remove splash guard.

Open cover on main flow oil filter, engine oil returns to oil sump. Open oil drain plug. Drain engine oil.

Unfasten plug connection on oil level switch.

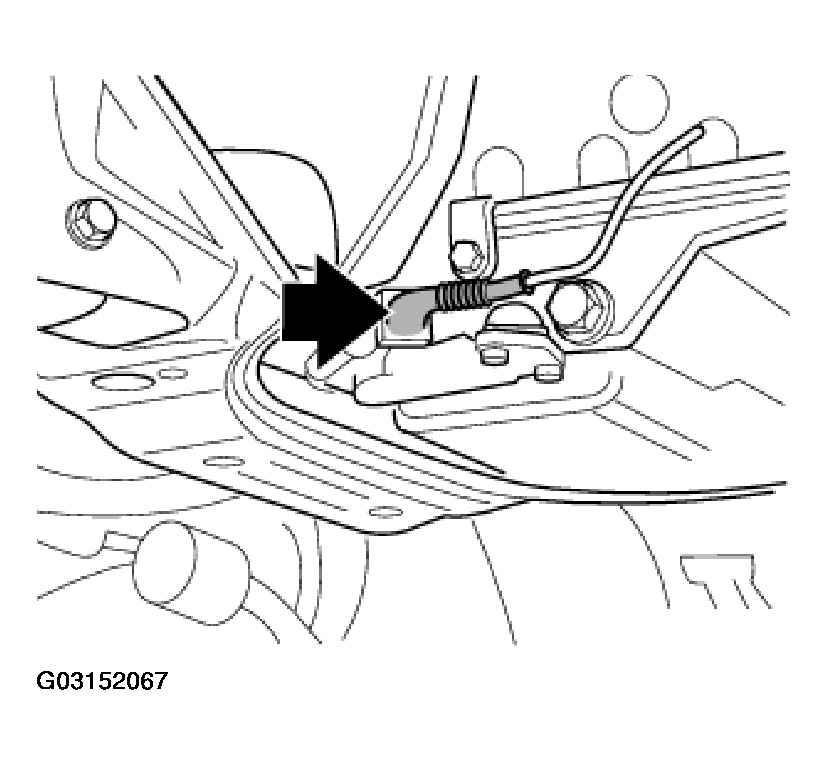

Fig 1: Unfastening Plug Connection On Oil Level Switch

G03152067

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten lower oil pan section.

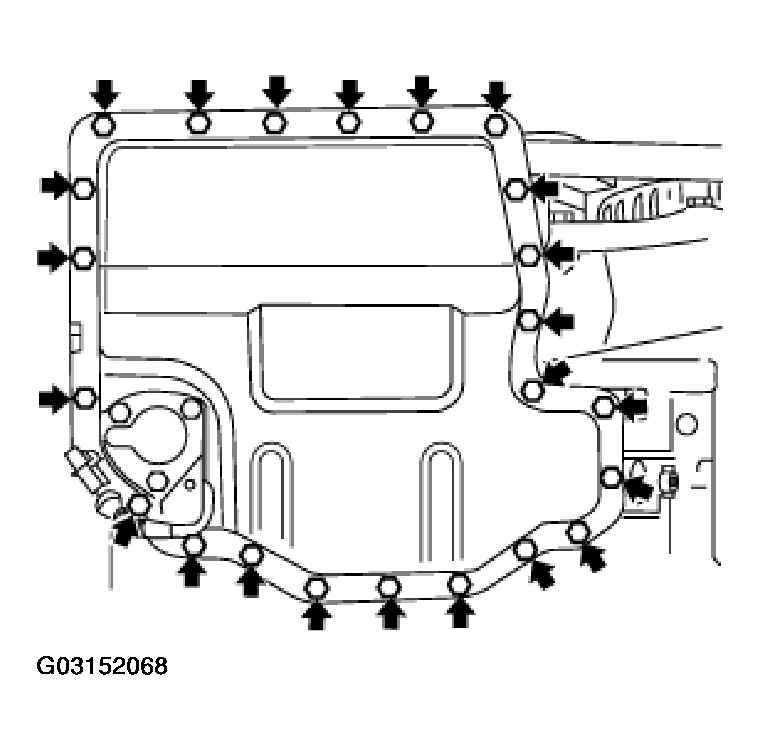

Fig 2: Unfastening Lower Oil Pan Section

G03152068

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

Clean sealing surfaces.

Install stud screws (1 and 2) at the locating points in the oil pan.

NOTE: The stud screws (1 and 2) secure the gasket and oil pan during installation and prevent damage to the sealing lip.

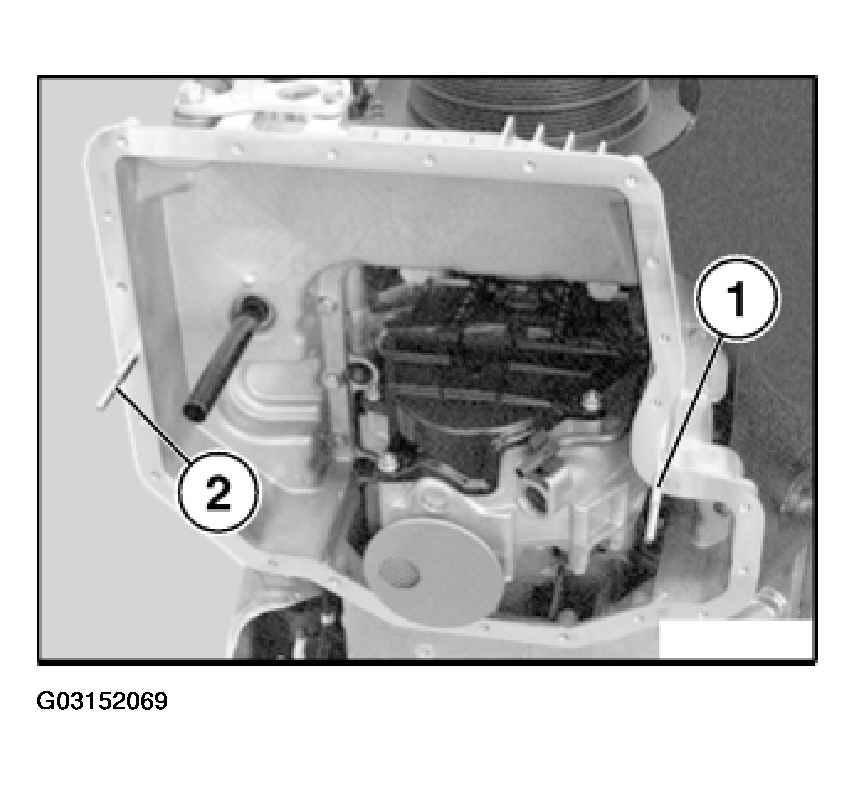

Fig 3: Installing Stud Screws (1 And 2)

G03152069

Courtesy of BMW OF NORTH AMERICA, INC.

Mount new gasket and lower oil pan section over the stud screws (1 and 2).

Insert and tighten down new screws (threads coated with plastic). Remove stud screws (1 and 2), insert remaining bolts and tighten.

Tightening torque, refer to 11 13 2AZ in ENGINE - TIGHTENING TORQUES - 540i .

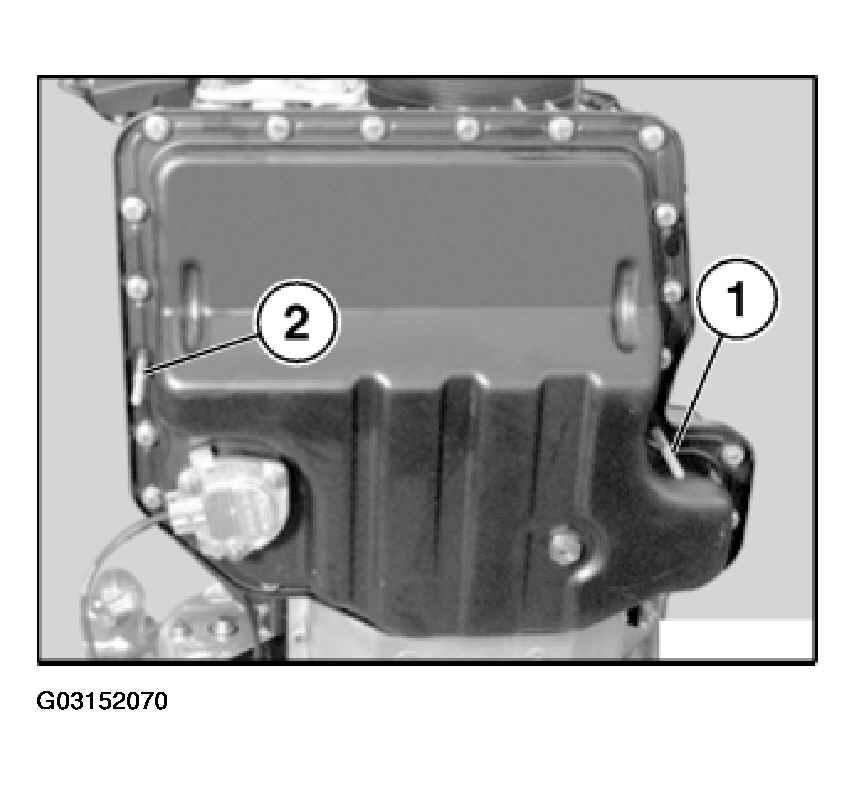

Fig 4: Lowering Oil Pan Section Over Stud Screws (1 And 2)

G03152070

Courtesy of BMW OF NORTH AMERICA, INC.
