Version up to 9/98

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Remove clip and slide engine vent tube forwards.

Installation

Check/replace sealing ring.

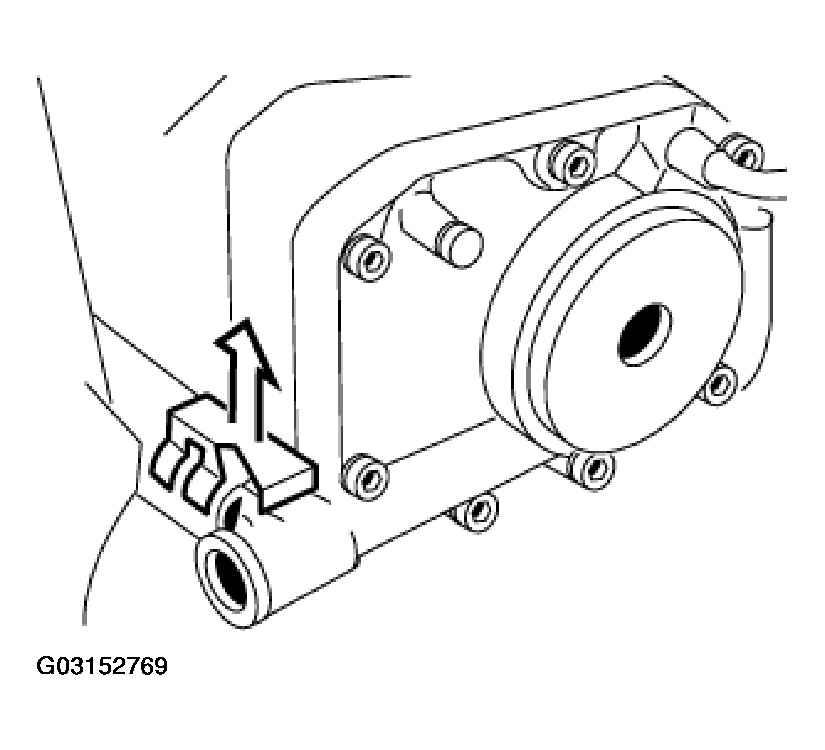

Fig 1: Removing Clip And Sliding Engine Vent Tube Forwards
G03152769Courtesy of BMW OF NORTH AMERICA, INC.
