11 22 510 Removing and installing/replacing flywheel (M62)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

(Transmission removed)

CAUTION: Whenever the flywheel is replaced, the impulse sensor must be reset,

refer to 12 14 520 REPLACING IMPULSE SENSOR (M62) .

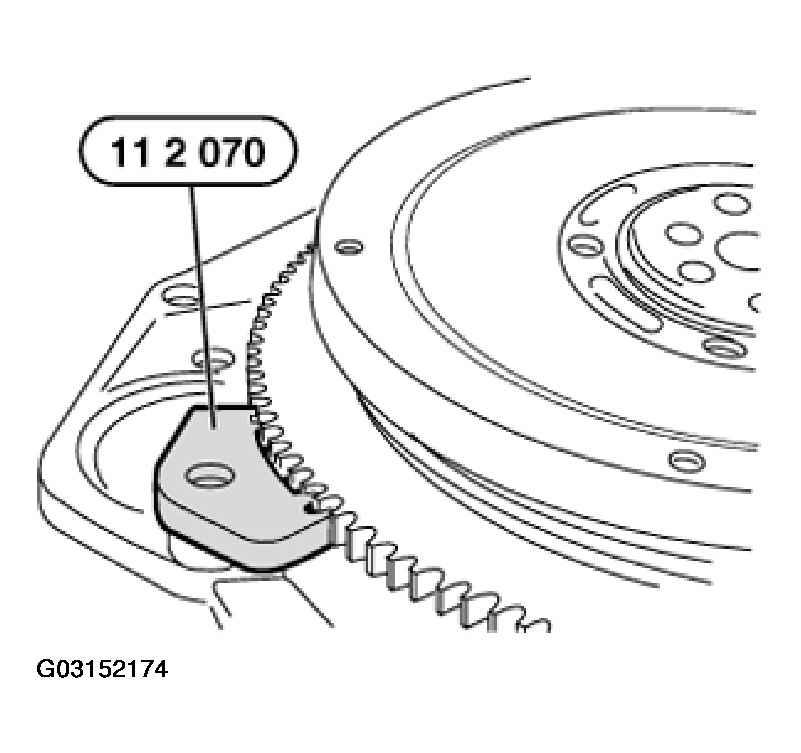

Block the flywheel using special tool 11 2 070.

Fig 1: Blocking Flywheel Using Special Tool 11 2 070

Courtesy of BMW OF NORTH AMERICA, INC.

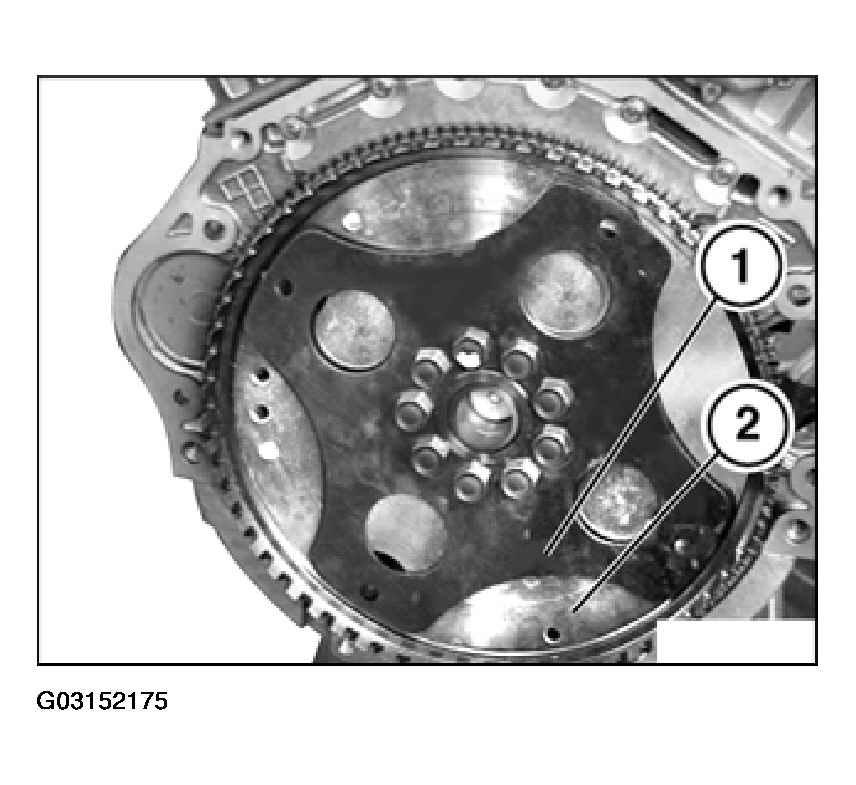

Unfasten flywheel screws.

Remove drive plate (1).

Remove flywheel (2).

Fig 2: Unfastening Flywheel Screws

Courtesy of BMW OF NORTH AMERICA, INC.

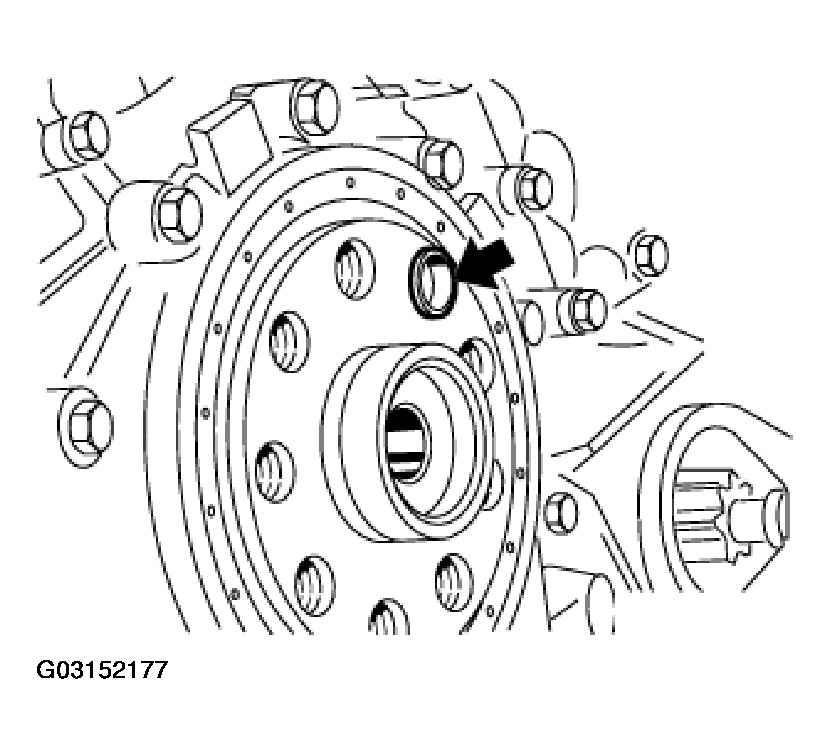

Clean threads on flywheel screws in crankshaft.

Fig 3: Cleaning Threads On Flywheel Screws In Crankshaft

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

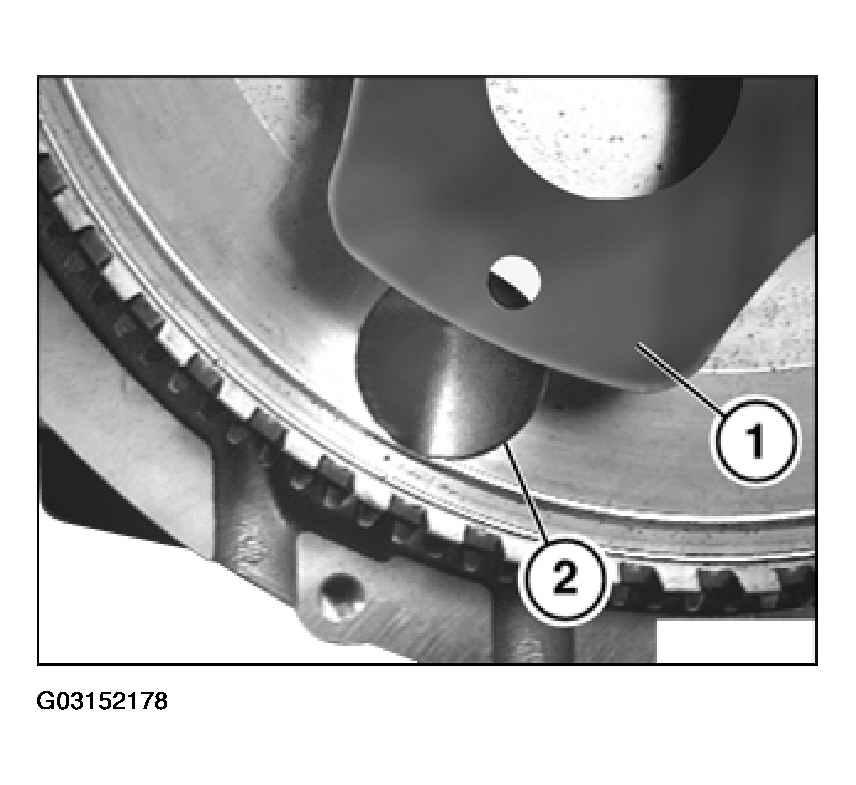

The flywheel is secured with a dowel sleeve.

Fig 4: Identifying Flywheel Secured With Dowel Sleeve

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

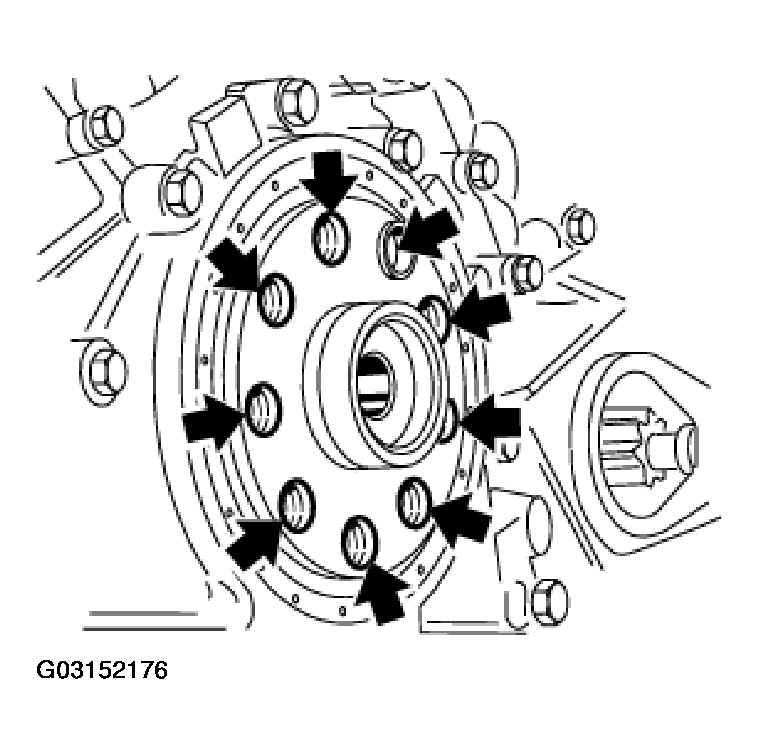

Fit flywheel (2) and mount drive plate (1) for torque converter correctly. Holes in drive plate (1) and flywheel (2) must be aligned over one another.

Fit new flywheel screws.

Tightening torque, refer to 11 22 1AZ in ENGINE - TIGHTENING TORQUES - 540i .

Fig 5: Fitting Flywheel And Mount Drive Plate For Torque Converter Correctly

Courtesy of BMW OF NORTH AMERICA, INC.
