11 62 143 Removing and installing or replacing both exhaust manifolds on right (M62 to 9/98)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

(Cylinder bank 1-4)

Unscrew and remove splash guard.

Remove exhaust system.See 18 00 020 REMOVING AND INSTALLING COMPLETE EXHAUST SYSTEM (M62)

Remove right heat baffle plate.

Unfasten screw connection on exhaust manifold.

NOTE: First remove rear exhaust manifold, then front one: pull downwards to remove.

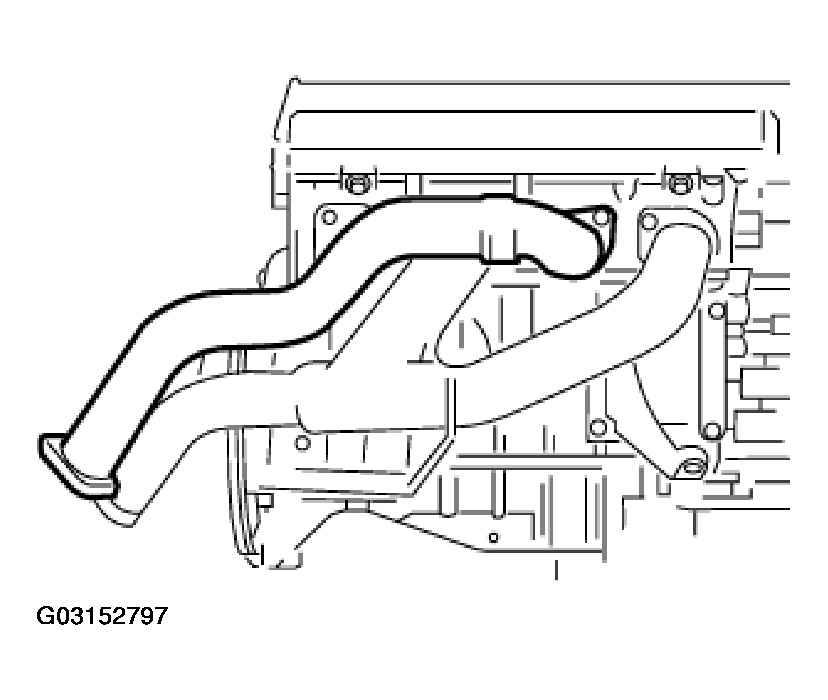

Fig 1: Unfastening Screw Connection On Exhaust Manifold

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

Replace seals.

Beads of seals face the exhaust manifold.

Coat thread with copper paste -CRC-.

Replace nuts.

Tightening torque, refer to 11 62 1AZ in ENGINE - TIGHTENING TORQUES - 540i .

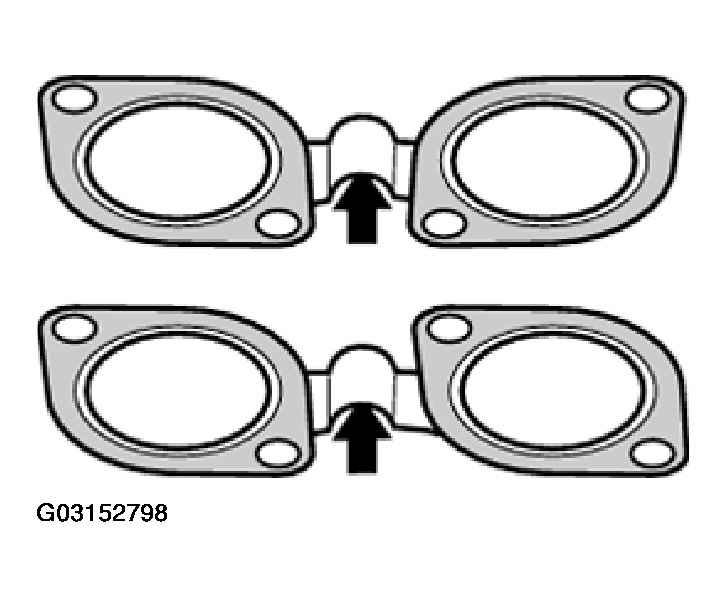

Fig 2: Identifying Beads Of Seals Face

Courtesy of BMW OF NORTH AMERICA, INC.
