00 00 249 BMW engine oil service (M60 / M62 / M73)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Change engine oil and oil filter.

NOTE: Do not damage main flow oil filter cover. Only open and tighten with socket wrench.
Unfasten main flow oil filter cover - engine oil now flows back into oil pan.

Tightening torque, refer to 11 42 2AZ in ENGINE - TIGHTENING TORQUES - 540i .

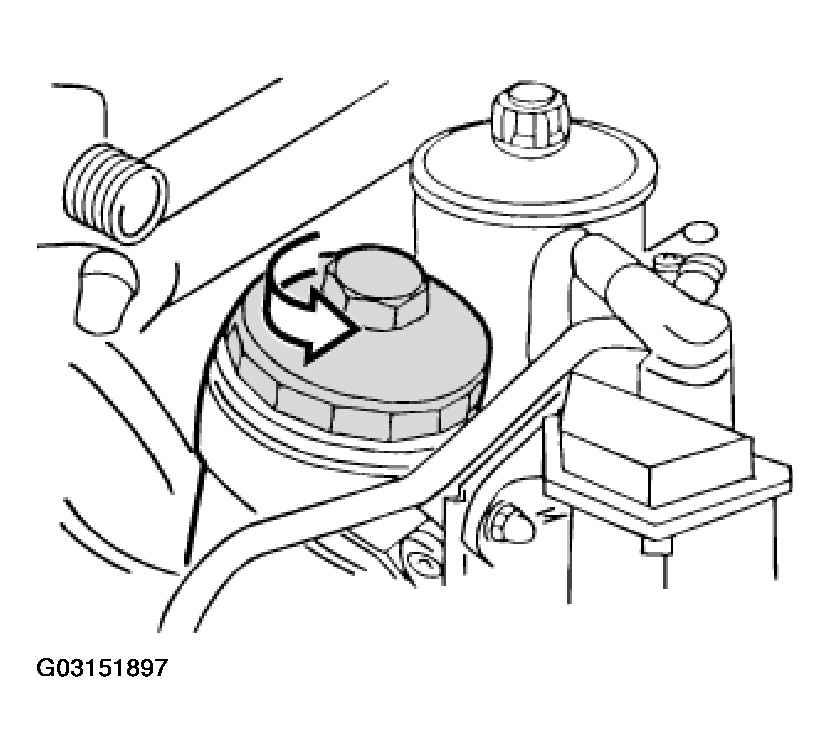

Fig 1: Unfastening Main Flow Oil Filter Cover

G03151897

Courtesy of BMW OF NORTH AMERICA, INC.

Remove oil filter from oil filter cover.

Note direction of installation of oil filter insert.

Oil filter insert must locate in oil filter cover.

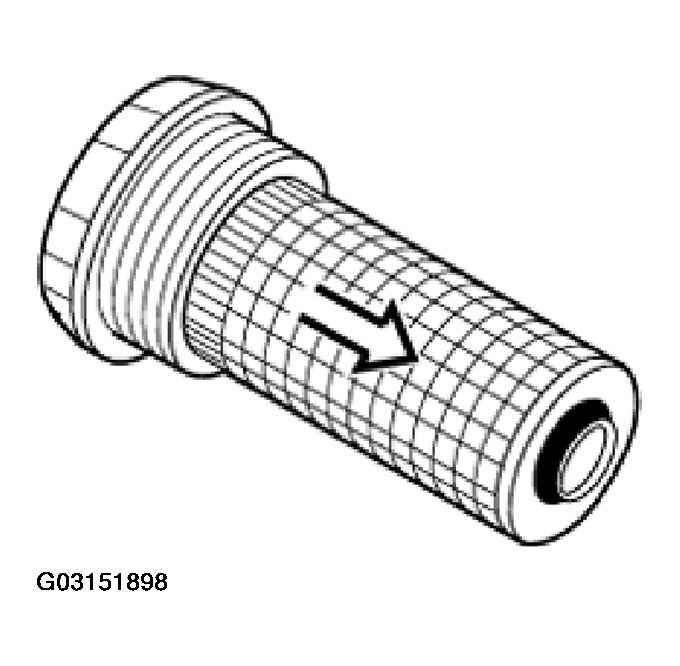

Fig 2: Removing Oil Filter From Oil Filter Cover

G03151898

Courtesy of BMW OF NORTH AMERICA, INC.

Replace sealing ring and coat with oil.

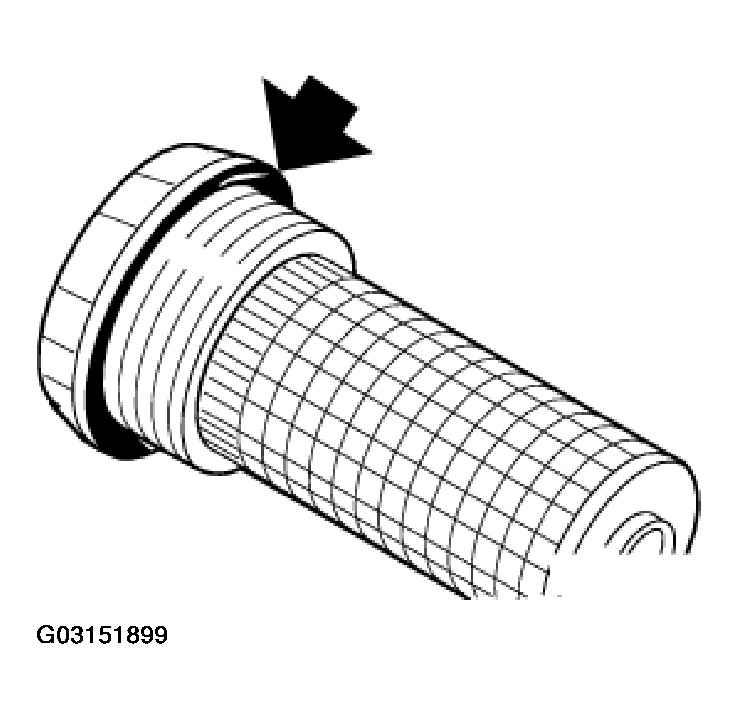

Fig 3: Replacing Sealing Ring And Coat With Oil

G03151899

Courtesy of BMW OF NORTH AMERICA, INC.

After draining oil from oil-filter housing, unscrew oil drain plug or draw out oil with a vacuum unit.

Replace sealing ring.

Tightening torque, refer to 11 11 5AZ in ENGINE - TIGHTENING TORQUES - 540i .

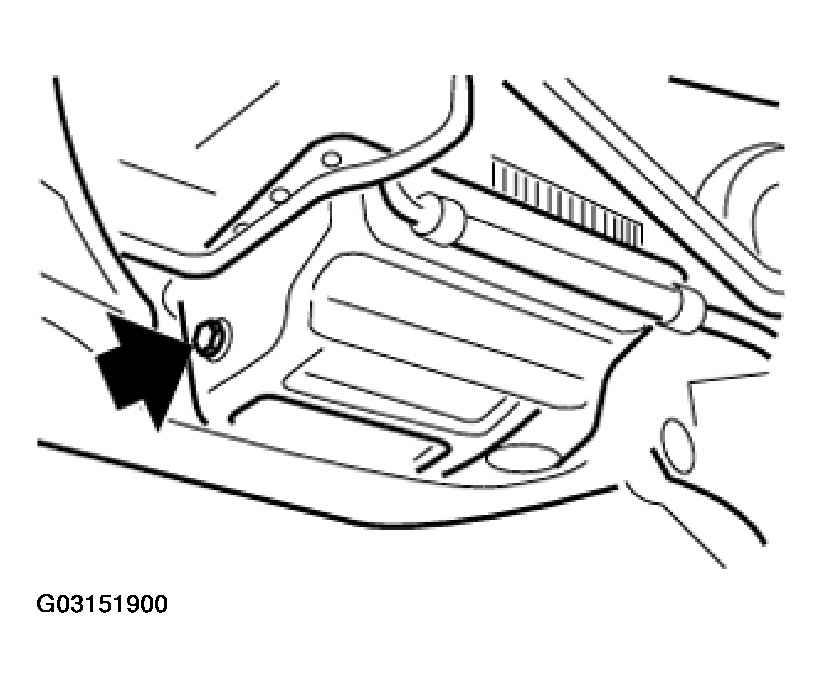

Fig 4: Replacing Sealing Ring

G03151900

Courtesy of BMW OF NORTH AMERICA, INC.

Pour in engine oil.

Switch on engine and run at idle until oil indicator lamp goes out.

Stop engine and check oil level.

NOTE: Position car on a flat, horizontal surface.
