11 12 729 Checking cylinder head for water leaks (M62)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

(Cylinder head dismantled)

Seal coolant apertures with special tool kit 11 1 470.

NOTE: Special tool 11 1 473 for cylinder bank 1-4
Special tool 11 1 474 for cylinder bank 5-8

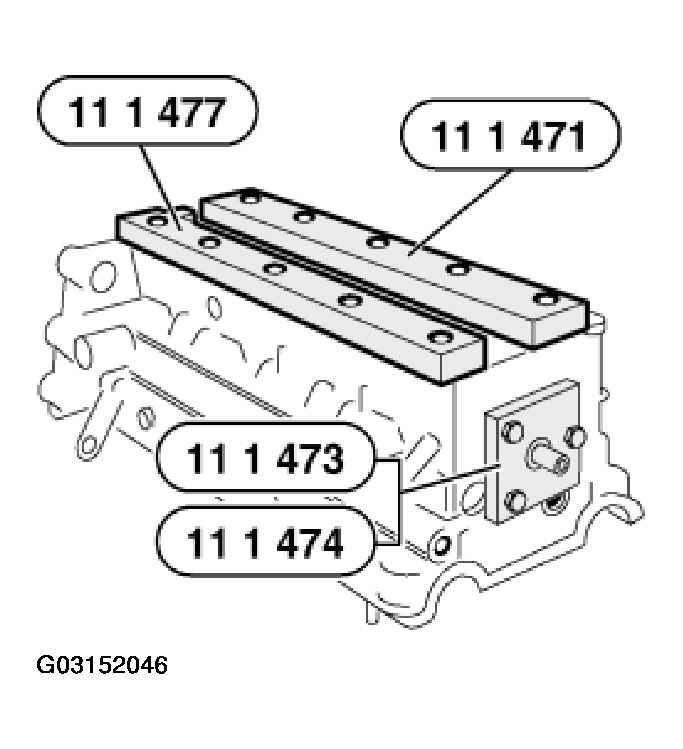

Fig 1: Identifying Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

Immerse cylinder head in a water bath. Inspection pressure 4.5 bar.

Check cylinder head for escaping air (cracks).

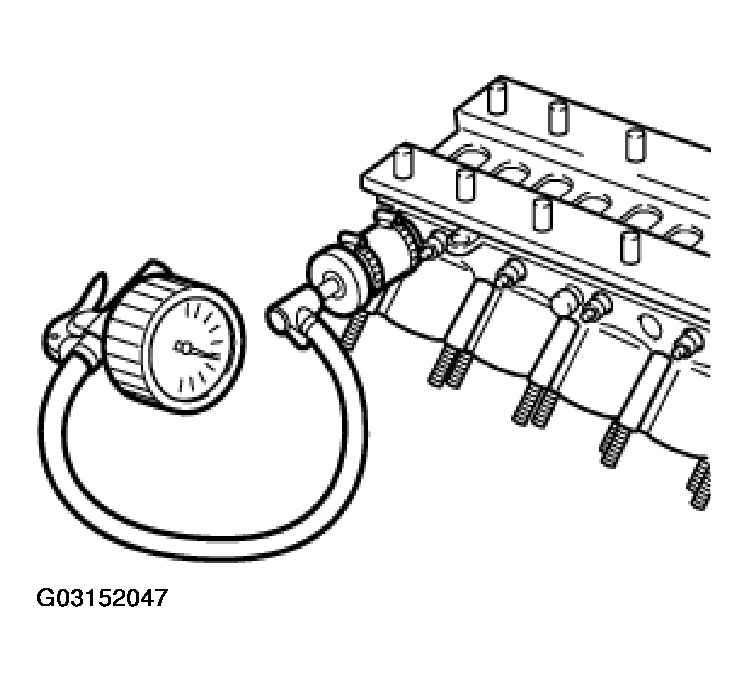

Fig 2: Checking Cylinder Head For Escaping Air

Courtesy of BMW OF NORTH AMERICA, INC.
