11 21 571 Replacing grooved ball bearing in crankshaft (M62 / S62)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

(Clutch removed)

Remove grooved ball bearing with special tool 11 2 340 in conjunction with special tool 11 2 016.

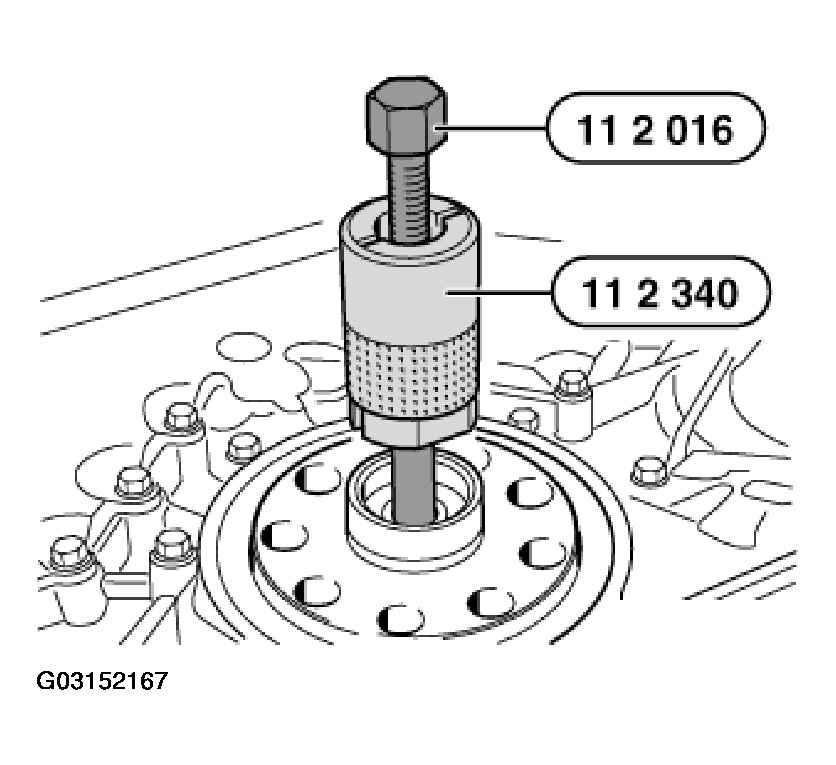

Fig 1: Removing Grooved Ball Bearing With Special Tool
G03152167Courtesy of BMW OF NORTH AMERICA, INC.

Install new thrust bearing and drive firmly home with special tool 11 2 350 in conjunction with special tool 00 5 500.

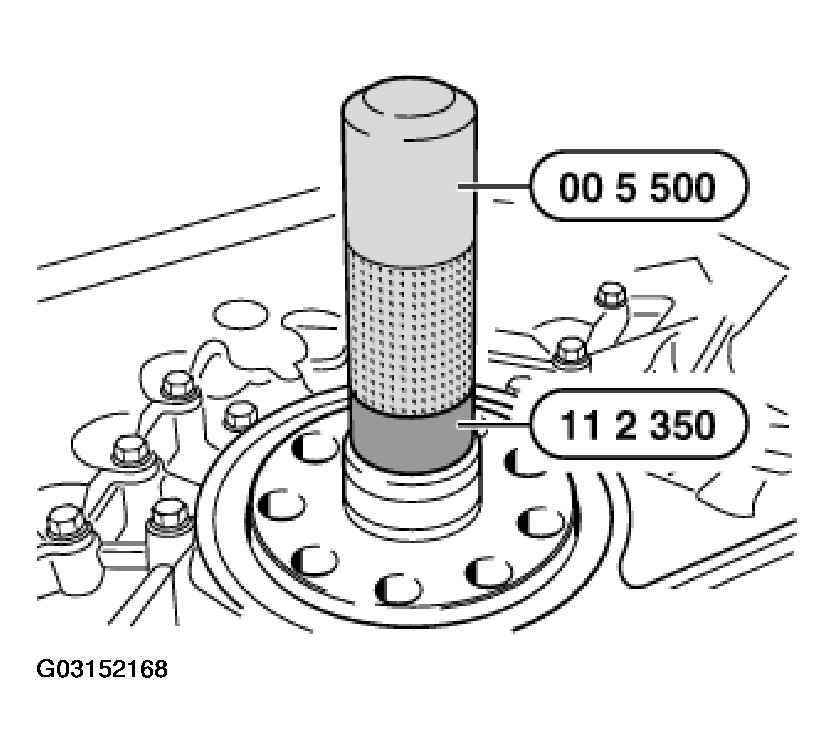

Fig 2: Installing New Thrust Bearing
G03152168Courtesy of BMW OF NORTH AMERICA, INC.
