11 31 011 Replacing left camshafts (M62 VANOS from 9/98): Removal

Removal of camshafts is described separately from installation.

Remove chain tensioning piston.

Remove timing case covers at top left and top right.

Remove left camshaft adjustment unit.

Remove distributor on left camshaft adjustment unit.

E38/E39

Pull special tool 11 2 300 back until flywheel is no longer secured in position.

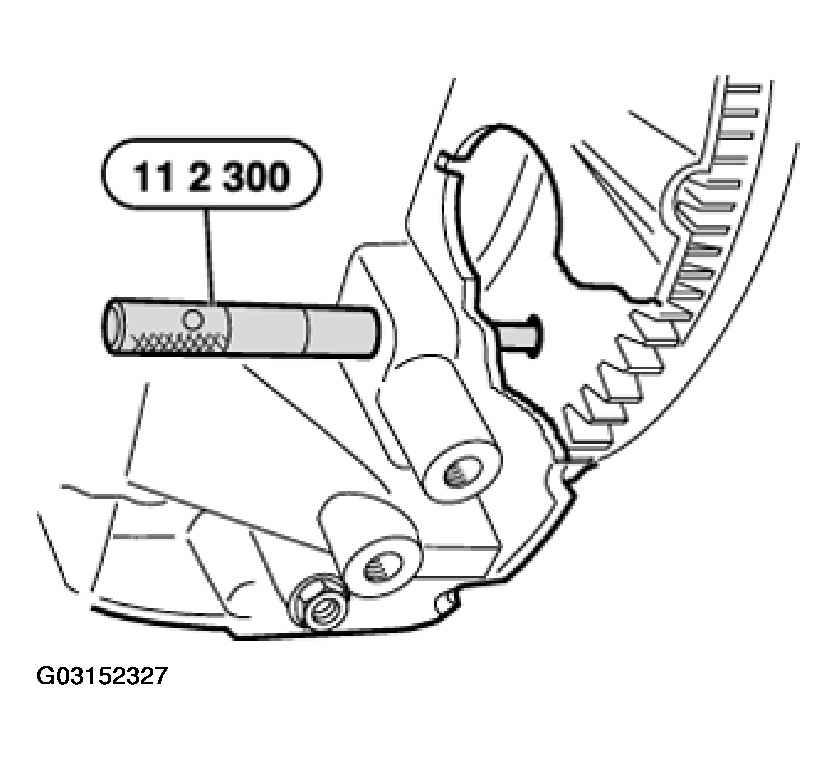

Fig 1: Removing Special Tool 11 2 300 (E38/E39)

Courtesy of BMW OF NORTH AMERICA, INC.

E53 (X5)

Pull special tool 11 5 180 back until flywheel is no longer secured in position.

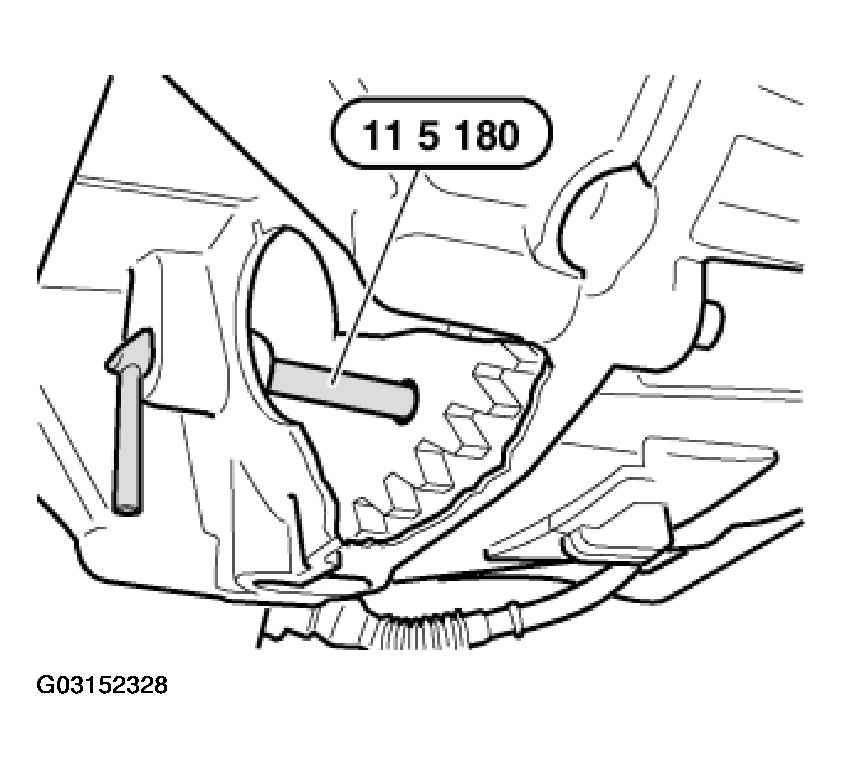

Fig 2: Removing Special Tool 11 2 300 E53 (X5)

Courtesy of BMW OF NORTH AMERICA, INC.

Lift timing chain and hold under tension.

Crank engine against direction of rotation at central bolt into 45° before TDC position.

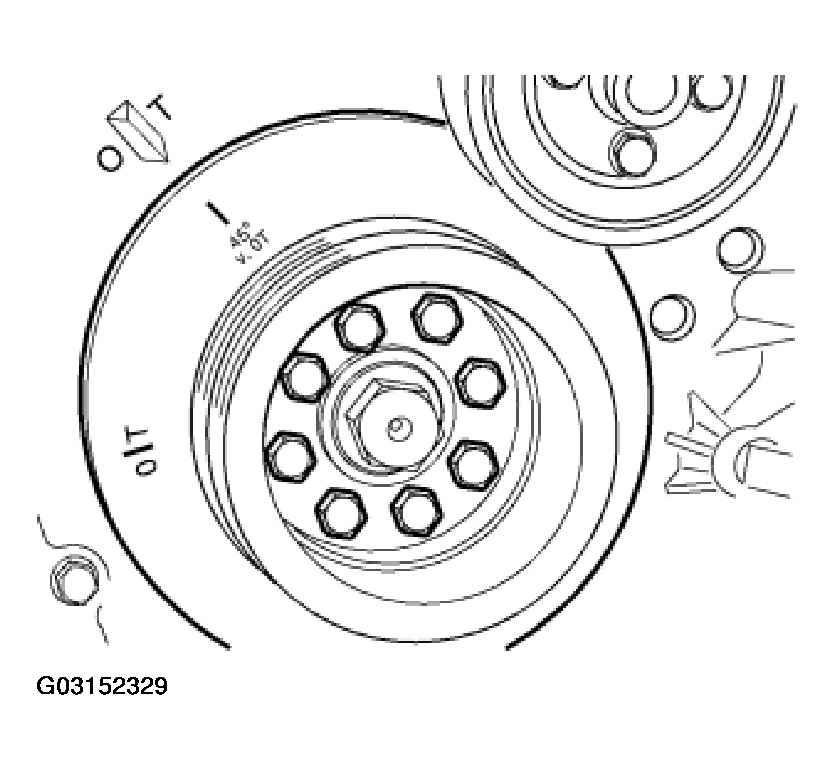

Fig 3: Cranking Engine Against Direction Of Rotation

Courtesy of BMW OF NORTH AMERICA, INC.

Remove special tools 11 2 444 / 11 2 443 / 11 2 442 / 11 2 446.

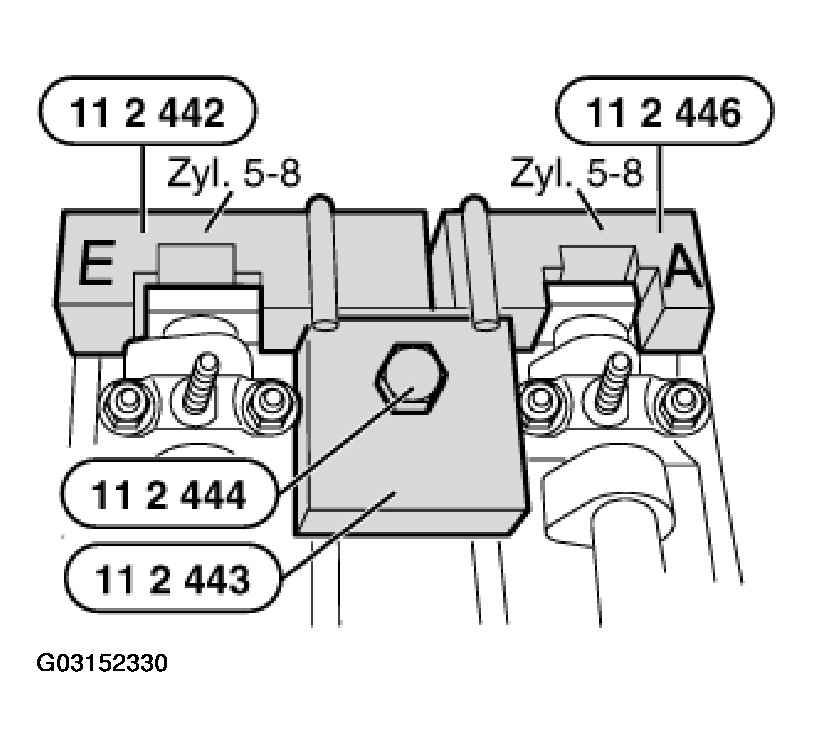

Fig 4: Removing Special Tools 11 2 444 / 11 2 443 / 11 2 442 / 11 2 446

Courtesy of BMW OF NORTH AMERICA, INC.

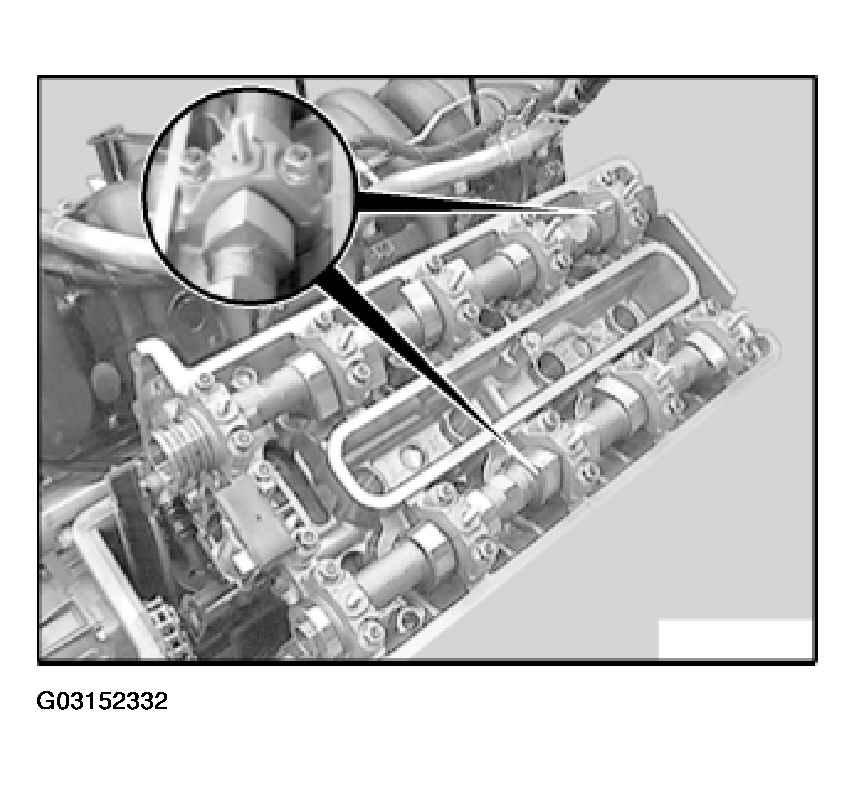

Fig 5: Identifying Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Rotate exhaust camshaft at hexagon head until exhaust cam on cylinder 6 is facing upwards.

Rotate inlet camshaft at hexagon head until inlet cam on cylinder 8 is facing upwards.

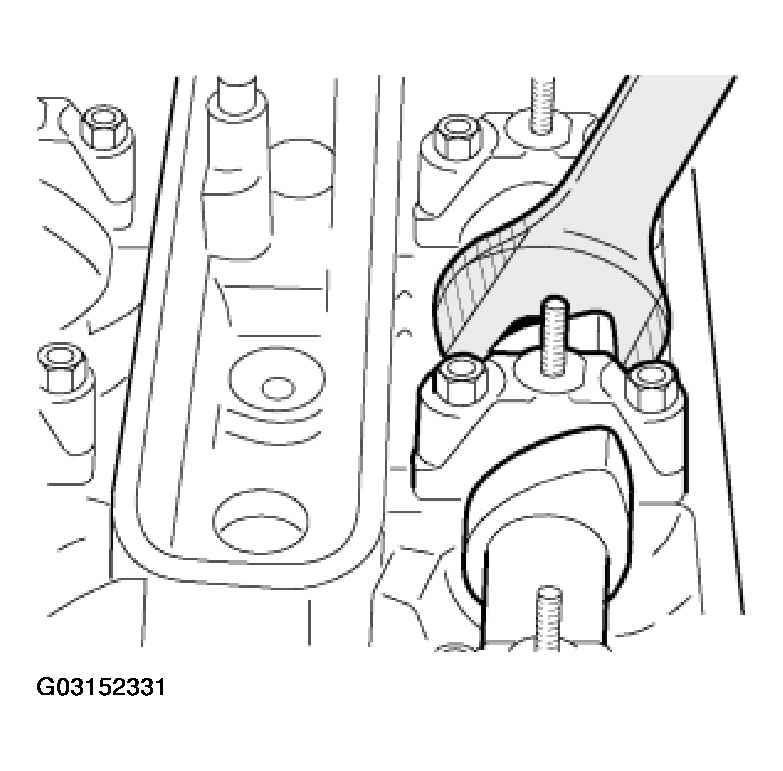

Fig 6: Identifying Exhaust Camshaft At Hexagon Head

Courtesy of BMW OF NORTH AMERICA, INC.

Release bearing caps of exhaust and inlet camshafts on cylinder bank 5 to 8 in 1/2 turn increments uniformly from outside to inside.

Remove bearing covers on cylinder bank 5 to 8 and place to one side in order.

Lift out camshafts.

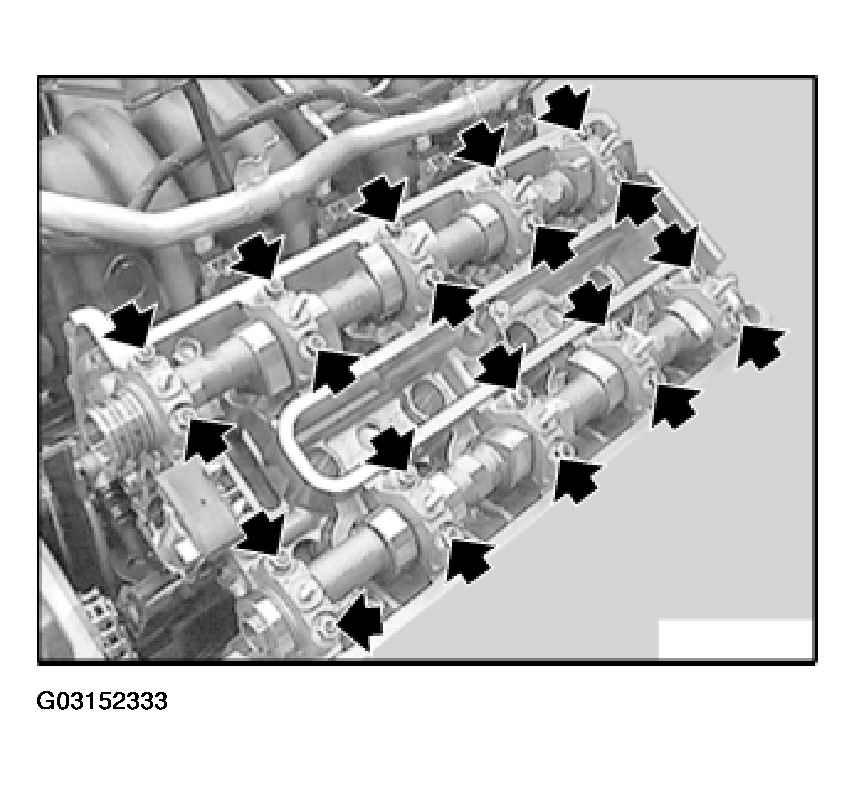

Fig 7: Releasing Bearing Caps Of Exhaust And Inlet Camshafts On Cylinder Bank 5 To 8

Courtesy of BMW OF NORTH AMERICA, INC.
