18 10... Removing and installing/replacing exhaust pipe extension (COOPER S)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Release screw (1) with key for socket head cap screw (3 mm).

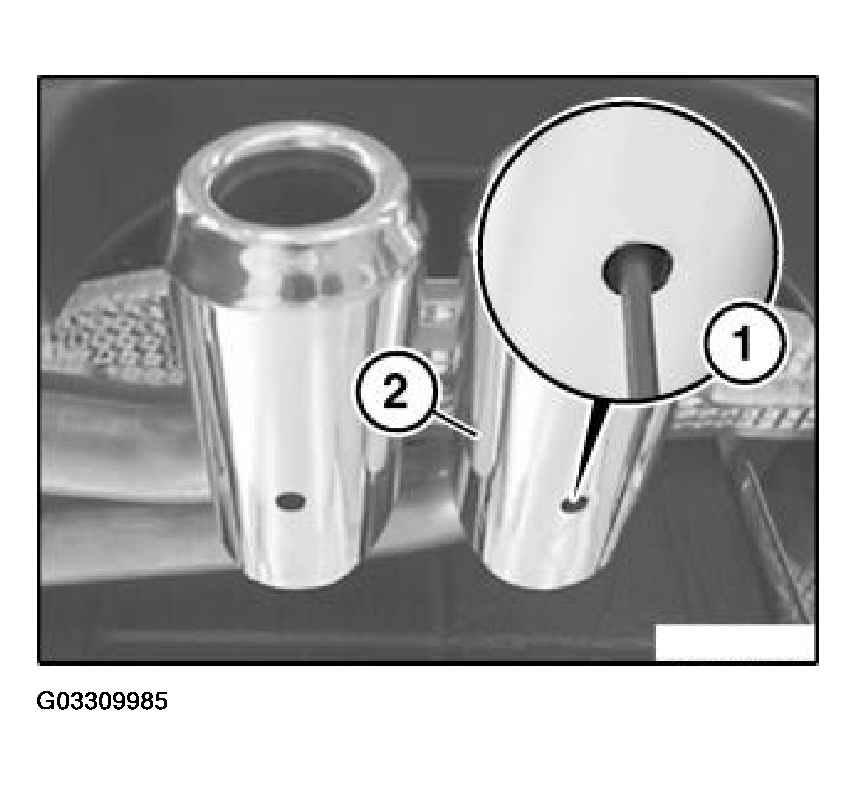

Fig 1: Releasing Socket Head Cap Screw
G03309985Courtesy of BMW OF NORTH AMERICA, INC.

Detach exhaust pipe extension (2).

Tightening torque 18 00 8AZ. Refer to EXHAUST SYSTEM - TIGHTENING TORQUES .
