13 63 590 Replacing fuel pump relay
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Read out fault memory of DME control unit
- Check stored fault messages
- Switch off ignition
Installation location: Footwell on left.
Remove fuse box cover.

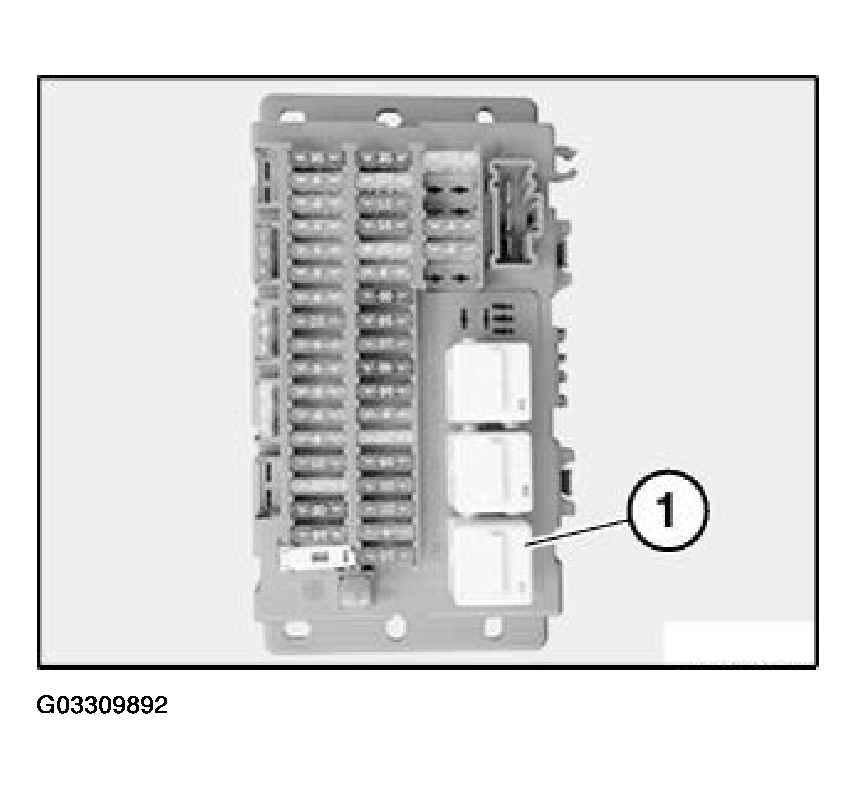

Pull fuel pump relay (1) from plug -in location in fuse box.
NOTE:
Now clear the fault memory.
