13 90 500 Replacing tank venting valve

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Read out fault memory of DME control unit.
Check stored fault messages.
Switch off ignition

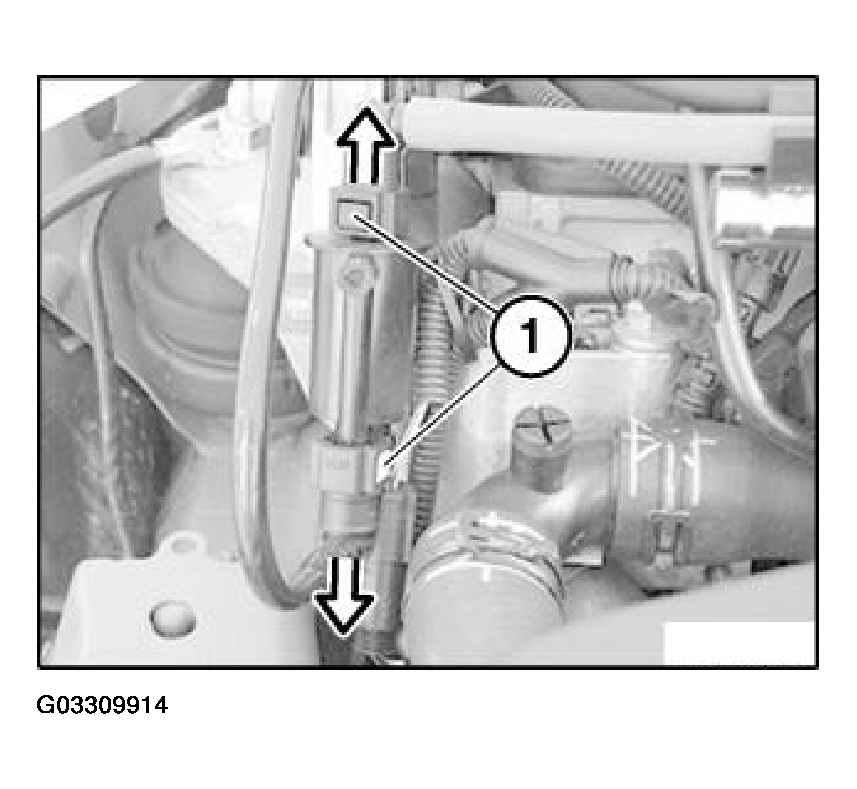

Unlock and disconnect both lines (1).

Fig 1: Disconnecting Both Lines

Courtesy of BMW OF NORTH AMERICA, INC.

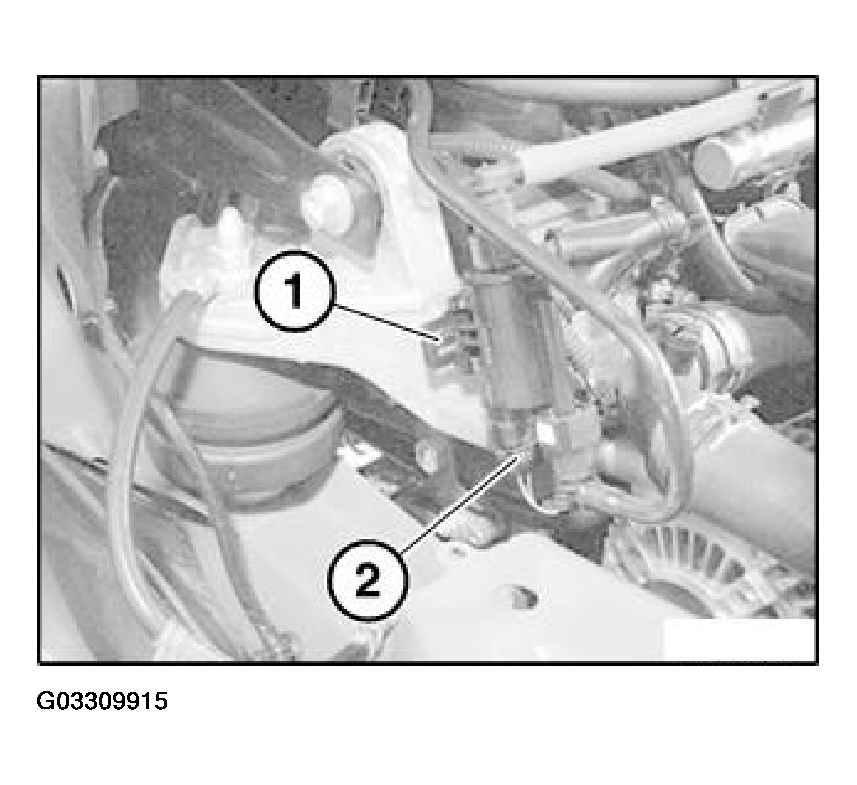

Bend locking tongue (1) straight and slide venting valve from holder.

Fig 2: Sliding Venting Valve From Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock connector (2) and remove.

NOTE: Now clear the fault memory.
