13 72 001 Replacing air cleaner element (COOPER S)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Remove battery connection point (1) and lay to one side.

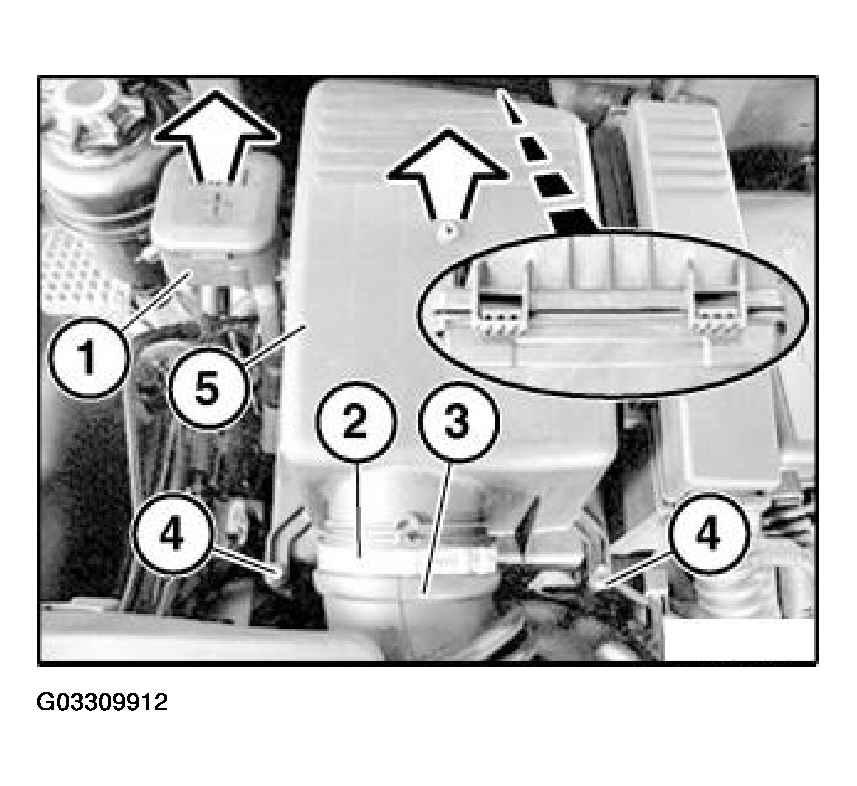

Fig 1: Removing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Release clamp (2) and remove intake pipe (3).

Release screws (4).

Remove cover (5).

Remove air cleaner element from housing.

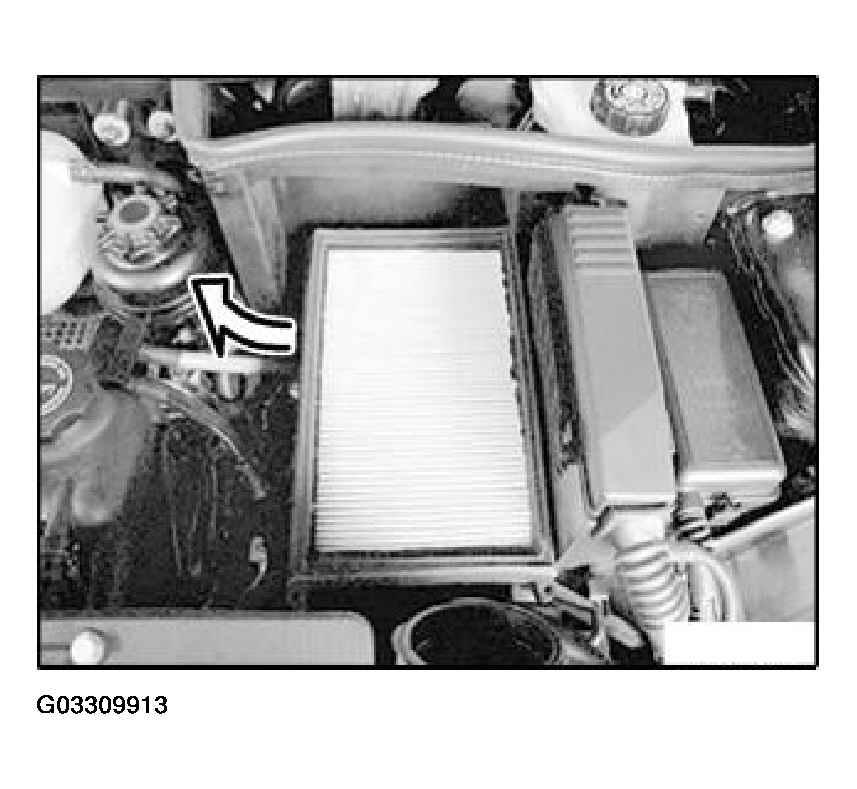

Fig 2: Removing Air Cleaner Element

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clean intake filter housing.
