12 14 600 Replacing knock sensor

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Switch off ignition
Read out fault memory of DME control unit
Check stored fault messages

NOTE: Remove exhaust turbocharger. Refer to 11 65 035 REMOVING AND INSTALLING/REPLACING SUPERCHARGER .

Unlock and disconnect knock sensor plug connection.

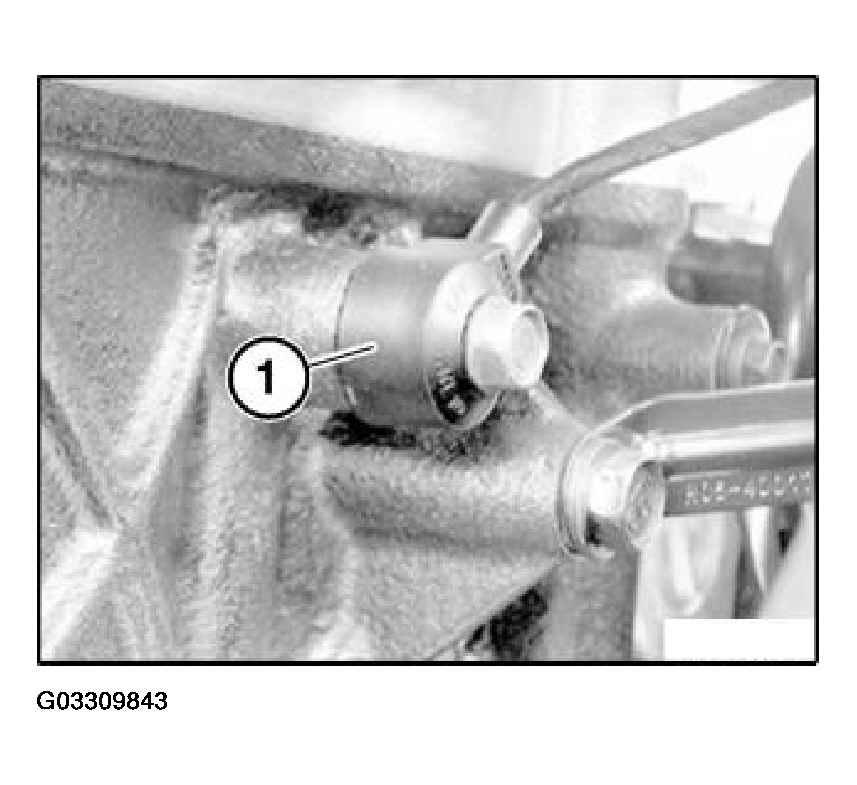

Fig 1: Removing Knock Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Release knock sensor screw, remove knock sensor (1).

Installation:

Clean contact surface of knock sensors.

Tightening torque 12 14 1AZ. Refer to ENGINE ELECTRICAL SYSTEM - TIGHTENING TORQUES .

Observe position of knock sensor in relation to engine block.

At angle of 20° to the perpendicular.

NOTE: Now clear the fault memory.
