11 23 010 Removing and installing or replacing vibration damper (COOPER S)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

11 8 241
11 8 242
11 8 270
11 8 441
11 8 442
11 8 443
11 8 450
11 8 460

Necessary preliminary tasks:

Remove wheel. Refer to 36 10 300 REMOVING OR INSTALLING FRONT OR REAR WHEEL .
Remove wheel arch liner. Refer to 51 71 040 REMOVING AND INSTALLING/REPLACING FRONT LEFT OR RIGHT WHEEL ARCH LINER .
Remove drive belt for auxiliary assemblies. Refer to 11 28 050 Removing A/C compressor drive belt (COOPER S) .

Installation:

Procedure up to 4/04.

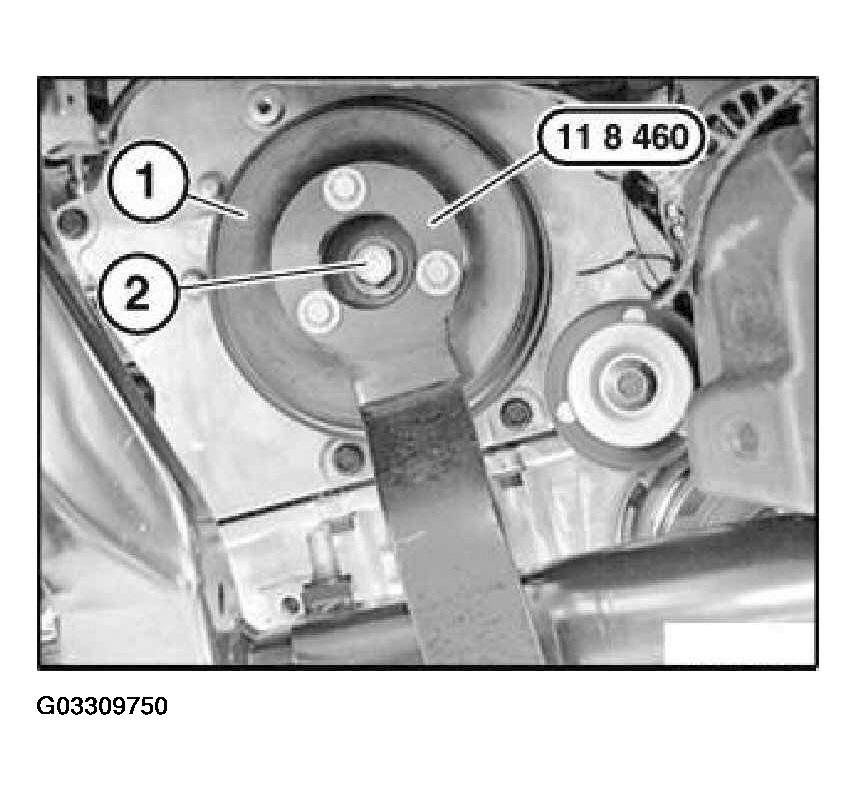

Fit special tool 11 8 460 on vibration damper (1).

Fig 1: Releasing Central Bolt

G03309750

Courtesy of BMW OF NORTH AMERICA, INC.

Release central bolt (2).

Tightening torque 11 23 1AZ. Refer to ENGINE - TIGHTENING TORQUES .

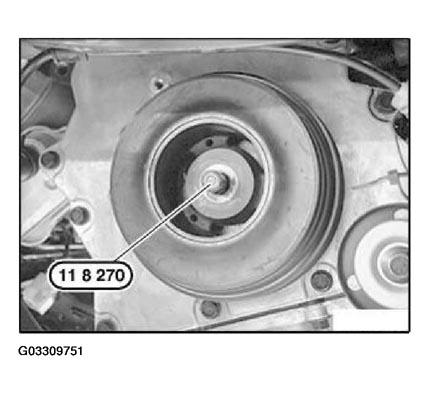

Screw special tool 11 8 270 into crankshaft.

Fig 2: Screwing Special Tool Into Crankshaft

G03309751

Courtesy of BMW OF NORTH AMERICA, INC.

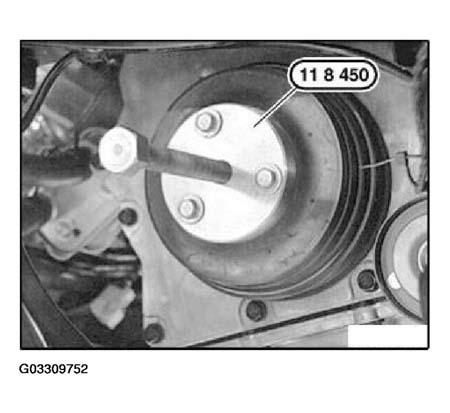

Pull off vibration damper with special tool 11 8 450.

Fig 3: Pulling Off Vibration Damper With Special Tool

G03309752

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Remove special tool 11 8 270.

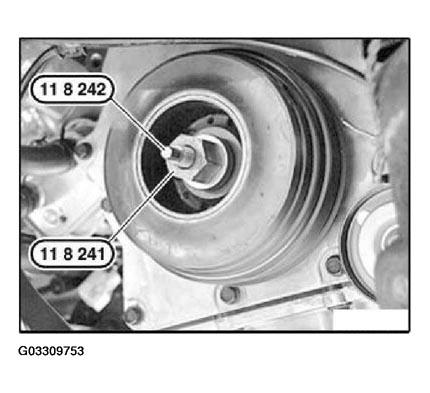

Press vibration damper onto crankshaft with special tools 11 8 242 and 11 8 241.

Fig 4: Pressing Vibration Damper Onto Crankshaft With Special Tools

G03309753

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Procedure from 4/04.

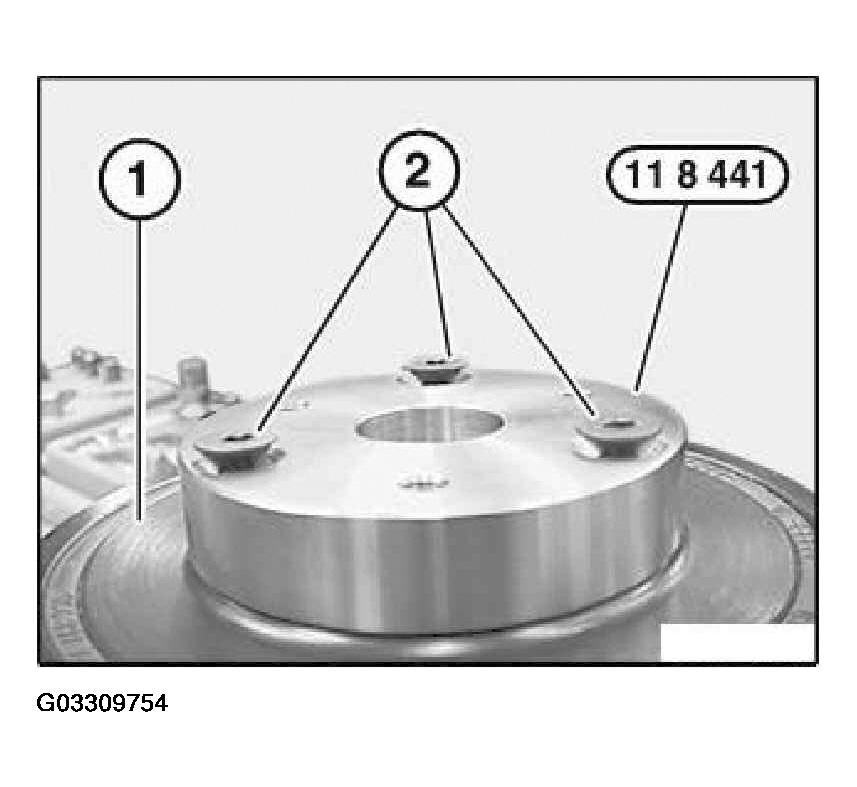

Preinstall special tool 11 8 441 with countersunk screws (2) on vibration damper (1).

Fig 5: Preinstalling Special Tool

G03309754

Courtesy of BMW OF NORTH AMERICA, INC.

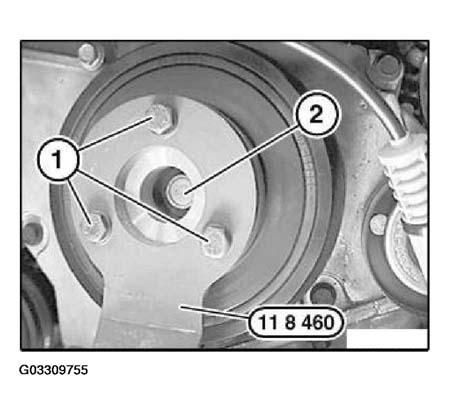

Fit special tool 11 8 460 on special tool 11 8 441.

Release central bolt (2).

Tightening torque: 11 23 1AZ. Refer to ENGINE - TIGHTENING TORQUES .

Fig 6: Releasing Central Bolt

G03309755

Courtesy of BMW OF NORTH AMERICA, INC.

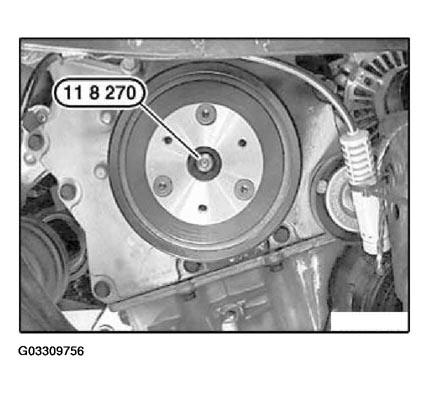

Screw in special tool 11 8 270.

Fig 7: Screwing In Special Tool

G03309756

Courtesy of BMW OF NORTH AMERICA, INC.

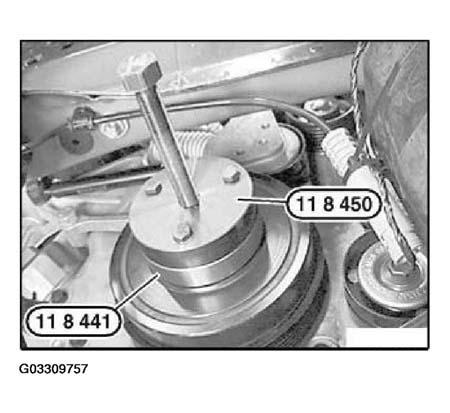

Fit special tool 11 8 450.

Fig 8: Pulling Off Vibration Damper With Special Tool

G03309757

Courtesy of BMW OF NORTH AMERICA, INC.

Pull off vibration damper with special tool 11 8 450.

NOTE: Modify special tool 11 8 441 if necessary to new vibration damper.

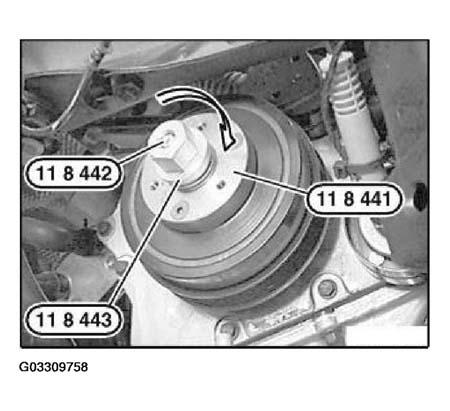

Press on vibration damper with special tools 11 8 442 and 11 8 443.

Fig 9: Pressing On Vibration Damper With Special Tools

G03309758

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
