11 13 000 Removing and installing, sealing or replacing oil sump

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

11 8 401
11 8 402

Switch off ignition.

Disconnect battery. Refer to 61 21 010 REMOVING AND INSTALLING BATTERY (COOPER S) .

Remove alternator drive belt.

Unscrew and remove splash guard.

CAUTION: When working on oil, coolant or fuel circuit: Make sure no oil, coolant or fuel drips onto the alternator. Cover alternator with suitable material. Otherwise there may be alternator malfunctions.

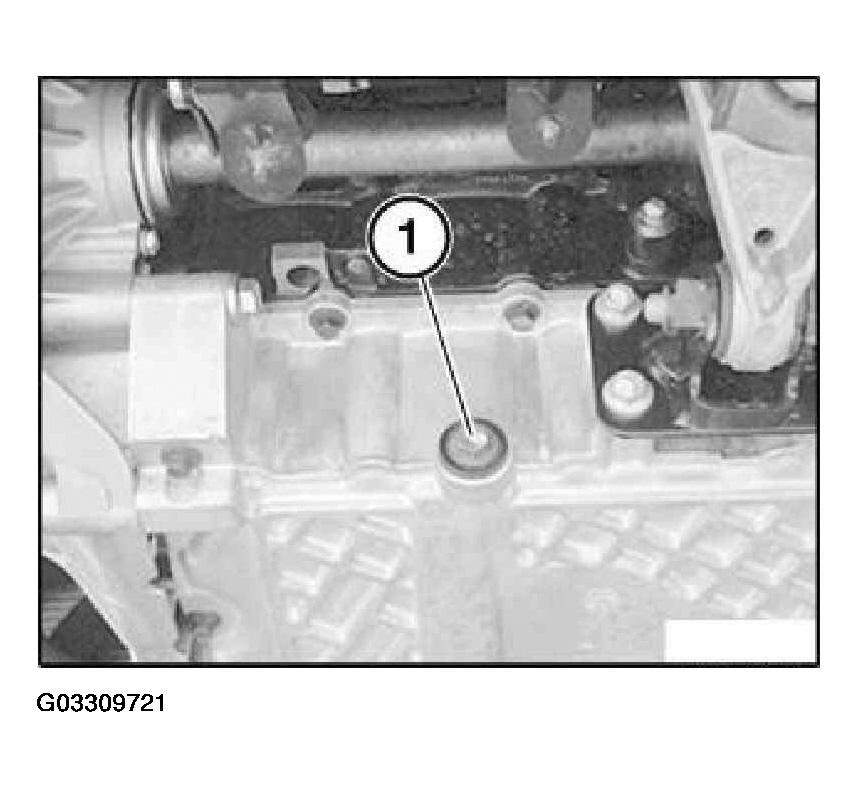

Unscrew oil drain plug (1).

Fig 1: Unscrewing Oil Drain Plug

G03309721

Courtesy of BMW OF NORTH AMERICA, INC.

Drain engine oil.

Tightening torque, 11 13 1AZ.

Top up engine oil.

Start engine and run until oil indicator lamp goes out.

Switch off engine and wait approx. 5 minutes.

Check engine oil level.

Top up if necessary.

Remove impact tube. Refer to 31 11 020 Removing and installing/replacing bumper bracket .

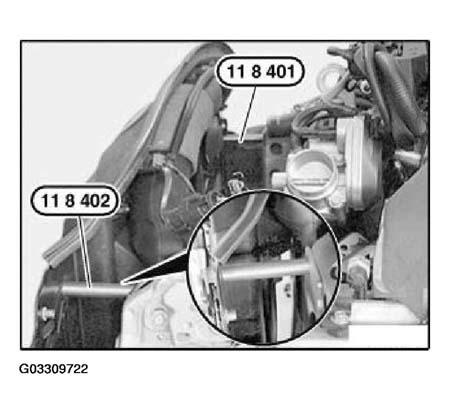

Lower front end module and fit special tools 11 8 401 and 11 8 402.

Fig 2: Fitting Special Tools

G03309722

Courtesy of BMW OF NORTH AMERICA, INC.

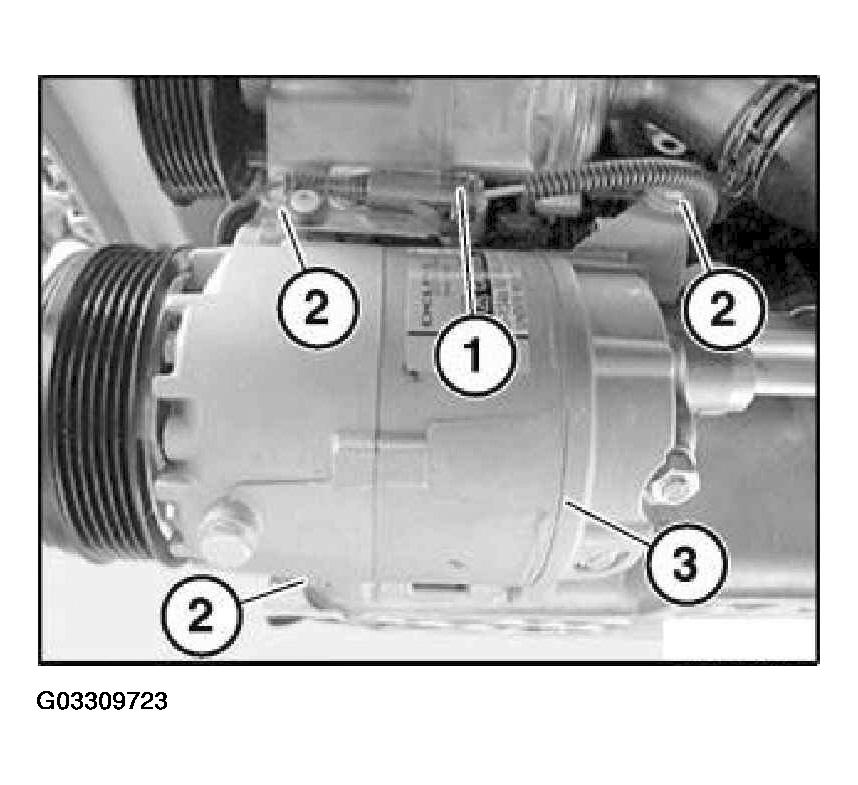

Detach plug connector from A/C compressor (1).

Fig 3: Detaching A/C Compressor

G03309723

Courtesy of BMW OF NORTH AMERICA, INC.

Remove retaining screws (2) of A/C compressor and lower compressor (3).

Secure compressor to front end module.

Unclip high -pressure line of A/C system.

Tightening torque 64 52 1AZ. Refer to HEATING AND AIR CONDITIONING - TIGHTENING TORQUES .

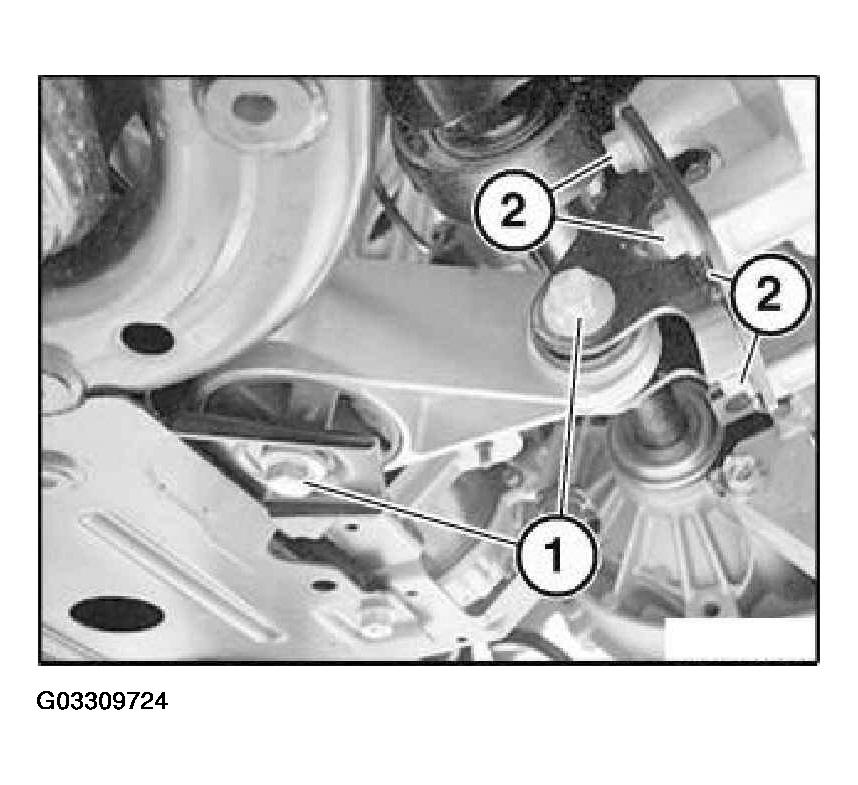

Remove screws (1) of lower stabilizer bar and remove stabilizer bar.

Fig 4: Removing Stabilizer Bar

G03309724

Courtesy of BMW OF NORTH AMERICA, INC.

Remove retaining screws (2) and remove bracket from oil sump.

Tightening torque 11 12 16AZ. Refer to ENGINE - TIGHTENING TORQUES .

Tightening torque 11 12 19AZ. Refer to ENGINE - TIGHTENING TORQUES .

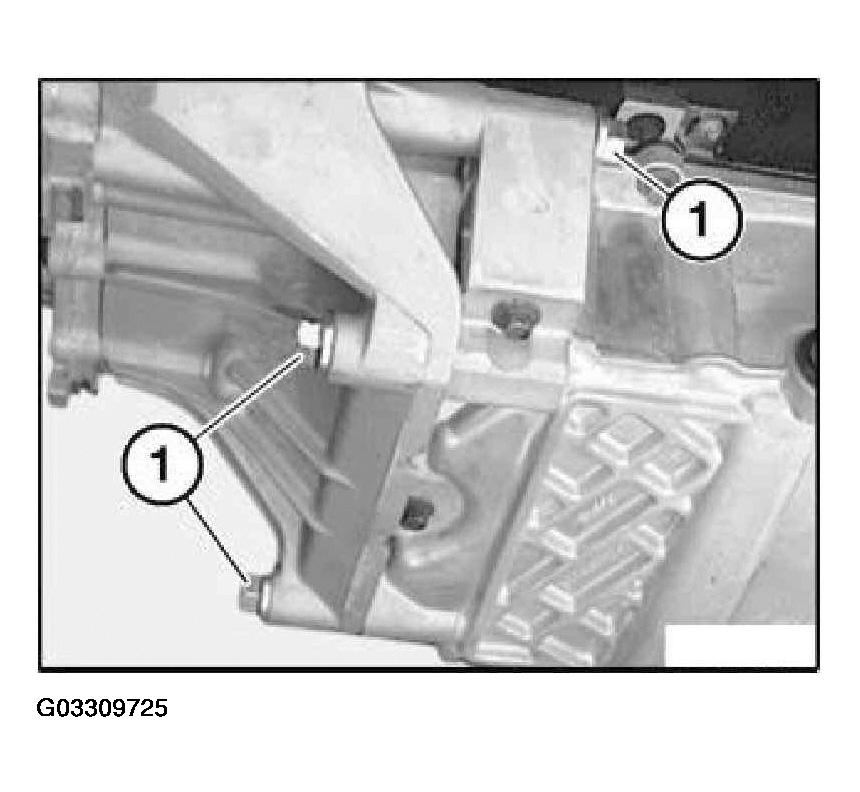

Remove retaining screws (1) for transmission.

Fig 5: Removing Retaining Screws For Transmission

G03309725

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Two shorter screws are inserted into oil sump.

Tightening torque 21 11 1AZ. Refer to TORQUE SPECIFICATIONS .

Installation:

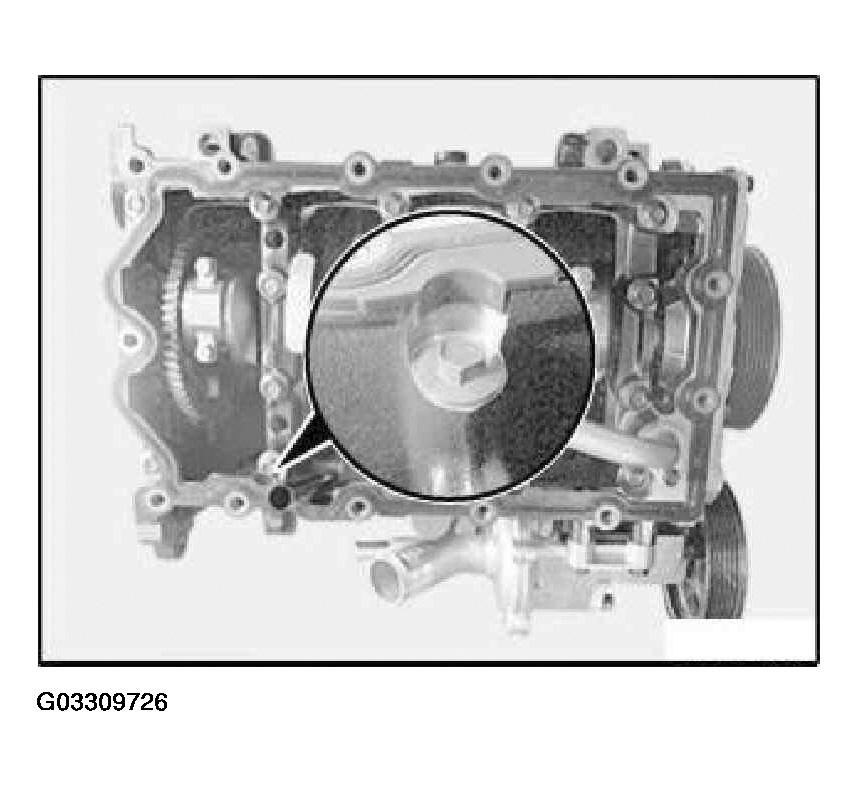

Clean mating surfaces of oil sump and cylinder block and check for damage.

Fig 6: Cleaning Mating Surfaces

G03309726

Courtesy of BMW OF NORTH AMERICA, INC.

Replace gasket.

Remove oil sump screws in specified sequence (13 -1) and remove oil sump.

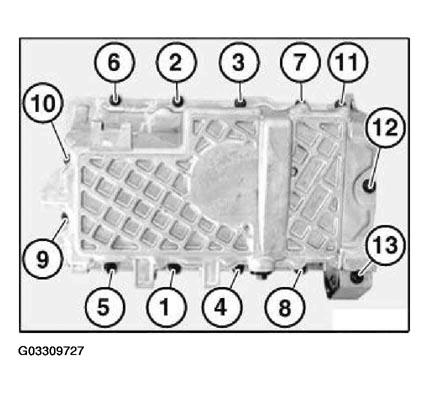

Fig 7: Identifying Removal & Tightening Sequence Of Oil Sump Screws

G03309727

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down oil sump screws in specified sequence (1 -13).

Tightening torque 11 13 2AZ. Refer to ENGINE - TIGHTENING TORQUES .

NOTE: Position gasket in accordance with alignment lugs.
