11 40 000 Checking engine oil pressure
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 11 8 360
- 13 3 061
- 13 3 063
- 13 6 051
- 13 6 054
NOTE:
To check engine oil pressure and oil pressure switch, install and connect special tools.
Unscrew oil filter cap; engine oil flows out of oil filter housing into oil sump.
If oil pressure is zero at idle, do not rev engine to 3000 RPM.
Installation:
- Replace sealing ring.
- Tightening torque 11 42 1AZ. Refer to ENGINE - TIGHTENING TORQUES .
Remove oil pressure switch.
Installation:
- Tightening torque, 12 61 1AZ. Refer to ENGINE ELECTRICAL SYSTEM - TIGHTENING TORQUES .

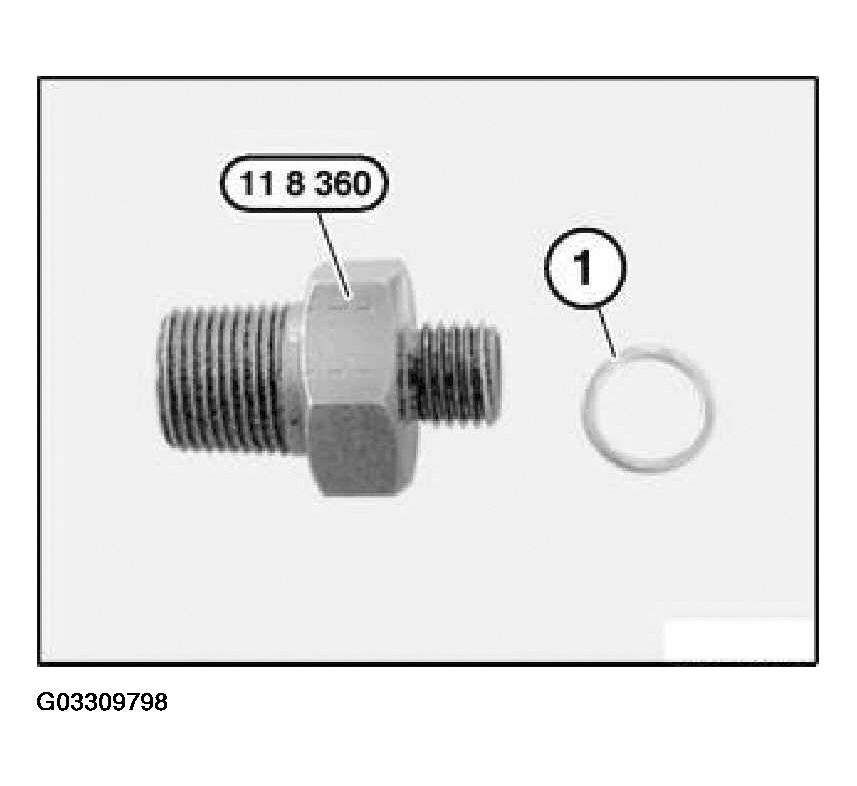

Install special tool 11 8 360 with sealing ring (1) in place of oil pressure switch.
Checking engine oil pressure with DIS Tester

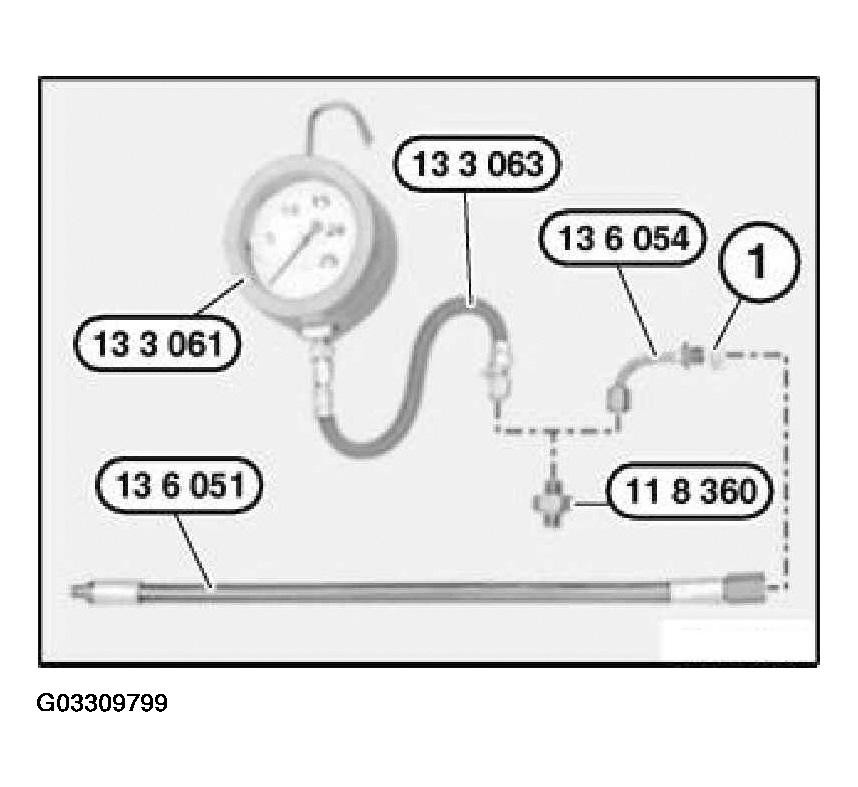

Attach special tool 13 6 054 with sealing ring (1) and special tool 13 6 051 and connect to DIS Tester.
Checking engine oil pressure with pressure measuring instrument
Fit special tools 13 3 063 and 13 3 061 (pressure measuring instrument).
Start engine and check engine oil pressure.
Refer to ENGINE - TECHNICAL DATA .
