11 43 000 Removing and installing/replacing guide tube for oil dipstick (COOPER S)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Remove supercharger. Refer to 11 65 035 Removing and installing/replacing supercharger .

Pull guide tube (1) from cylinder block.

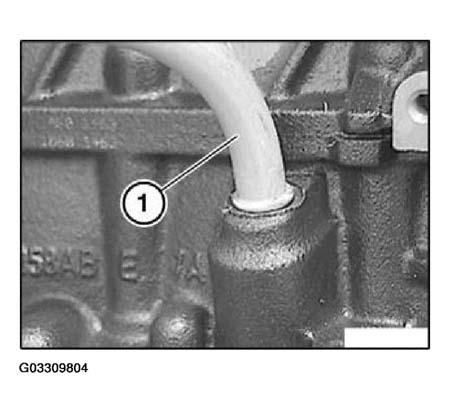

Fig 1: Pulling Guide Tube From Cylinder Block

Courtesy of BMW OF NORTH AMERICA, INC.

Replace seal (1) on guide tube.

Fig 2: Replacing Seal On Guide Tube

Courtesy of BMW OF NORTH AMERICA, INC.

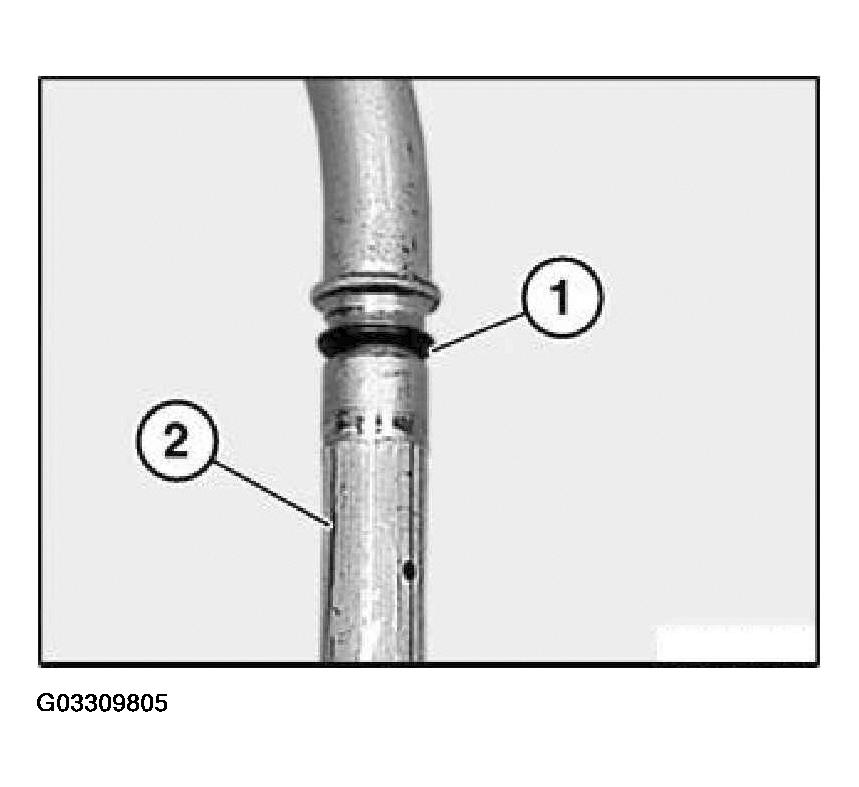

Coat new sealing ring (1) with Syntheso Glep 1.

Insert guide tube (2) into cylinder block.

NOTE: Make sure that guide tube and seal are correctly located.
