11 44 000 Removing and installing/replacing oil - water heat exchanger (COOPER S)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Danger of scalding!
Only perform this work after engine has cooled down.
Release pressure cap on coolant expansion tank.
Remove right hand front road wheel. Refer to 36 10 300 REMOVING OR INSTALLING FRONT OR REAR WHEEL .
Drain coolant. Refer to 17 00 005 DRAINING AND ADDING COOLANT (COOPER S) .

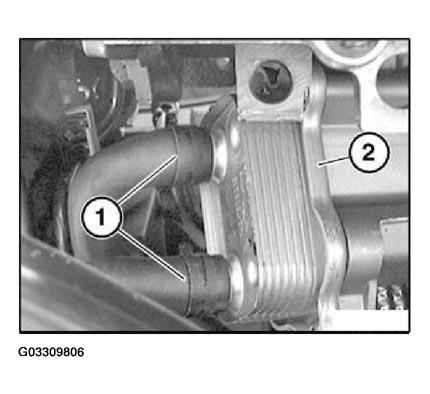

Disconnect pipes (1) from heat exchanger (2) and catch and dispose of coolant.

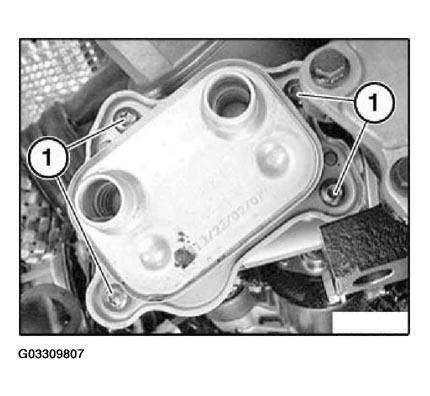

Remove heat exchanger retaining bolts (1) and remove heat exchanger.
Tightening torque 11 44 1AZ. Refer to ENGINE - TIGHTENING TORQUES .

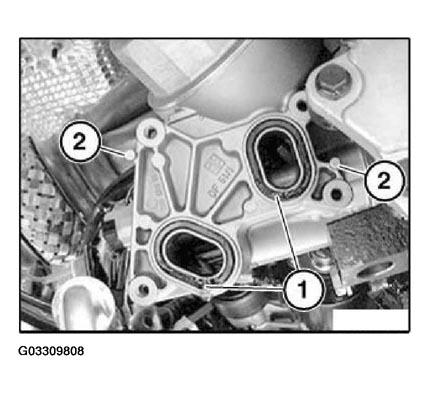

Remove sealing rings (1).
Clean all sealing surfaces.
Install new sealing rings and refit heat exchanger.
NOTE:
Heat exchanger location lugs (2).
Check engine oil level.
Bleed and top-up cooling system. Refer to 17 00 005 DRAINING AND ADDING COOLANT .
