11 22 500 Removing and installing or replacing flywheel (COOPER S)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

11 8 460

Remove clutch. Refer to CLUTCH .

Fit special tool 11 8 460 to retain crankshaft pulley.

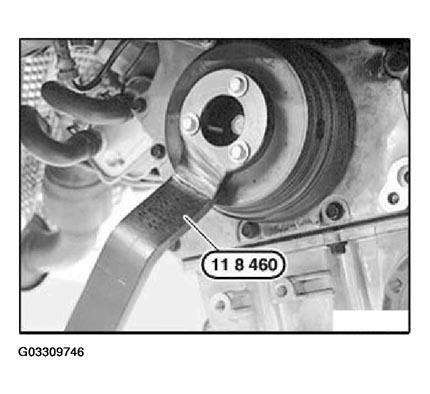

Fig 1: Fitting Special Tool

G03309746

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken bolts in sequence (8 -1) and remove flywheel.

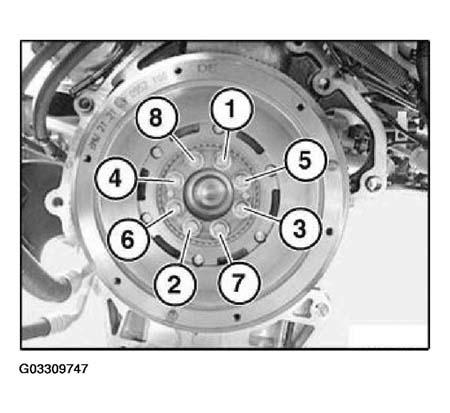

Fig 2: Identifying Flywheel Bolts Removal Sequence

G03309747

Courtesy of BMW OF NORTH AMERICA, INC.

Align flywheel location mark (1) with crankshaft location mark (2).

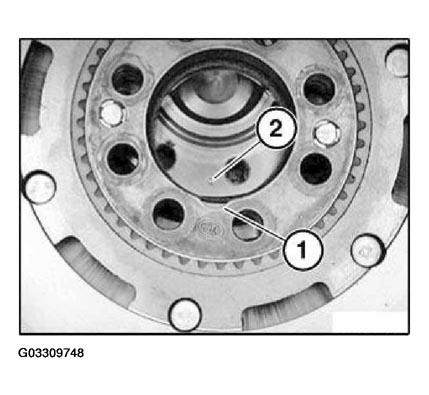

Fig 3: Aligning Flywheel Location Mark With Crankshaft

G03309748

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Flywheel bolts must be replaced.

Tighten bolts in sequence (1-8).

Fig 4: Identifying Flywheel Bolt Tightening Sequence

G03309749

Courtesy of BMW OF NORTH AMERICA, INC.

Tightening torque 11 22 2AZ. Refer to ENGINE - TIGHTENING TORQUES .
