Securing engine in installation position with special tool (W10/W11)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 0 200
00 0 201
00 0 202
00 0 205
00 0 207
00 0 209
11 8 260
51 2 160

Necessary preliminary tasks:

Disconnect battery (W11), refer to 61 21 010 REMOVING AND INSTALLING BATTERY (COOPER S)

Install special tool 51 2 160.

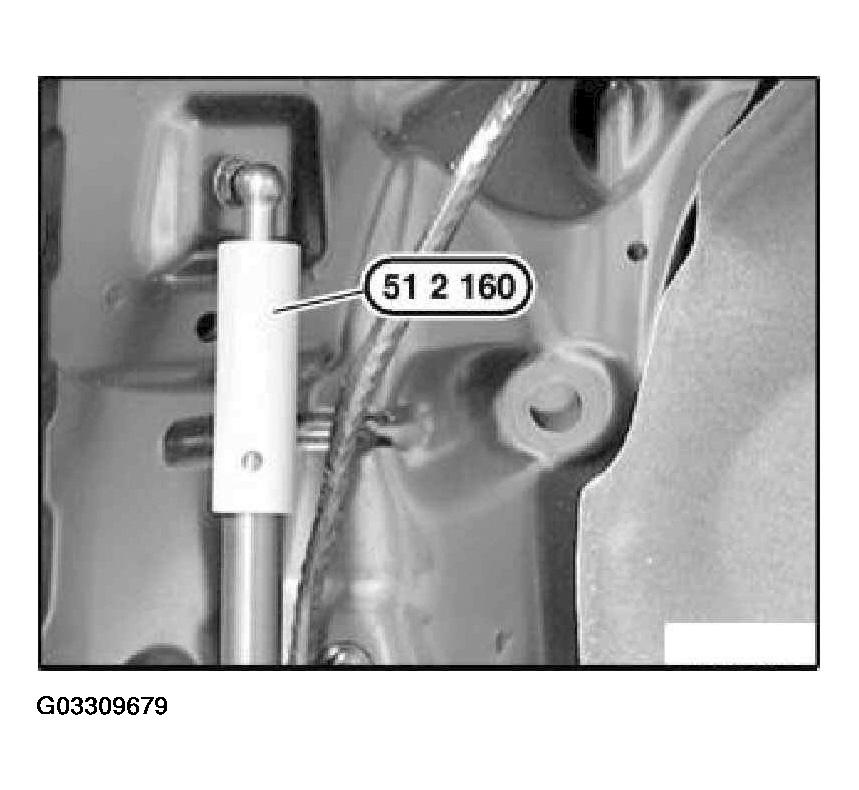

Fig 1: Installing Special Tool

G03309679

Courtesy of BMW OF NORTH AMERICA, INC.

Reduce excess pressure in cooling system.

Release screw (1).

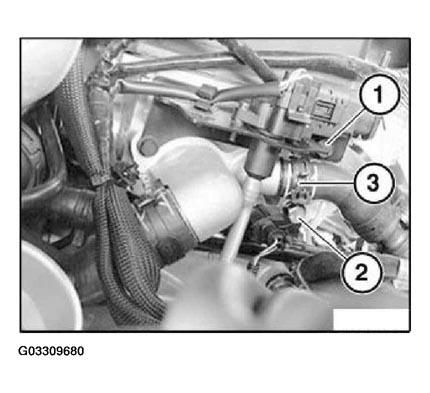

Fig 2: Releasing Coolant Line Clamp

G03309680

Courtesy of BMW OF NORTH AMERICA, INC.

Lay bracket for oxygen sensor to one side.

Release screw (2).

Release coolant line clamp (3).

Screw special tool 11 8 260 onto cylinder head.

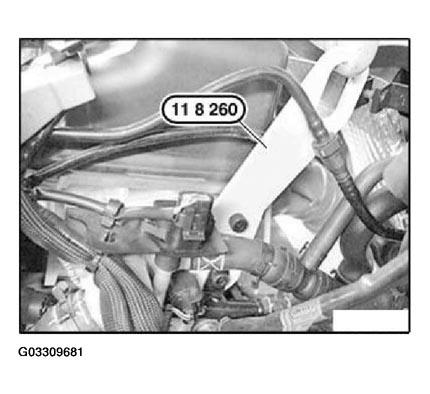

Fig 3: Screwing Special Tool Onto Cylinder Head

G03309681

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The water pipe is also secured to special tool 11 8 260 at the same time. See Fig 3 .

Assemble special tool 00 0 200 with special tools 00 0 201 / 00 0 202 / 00 0 205 / 00 0 207 / 00 0 209 and fit.

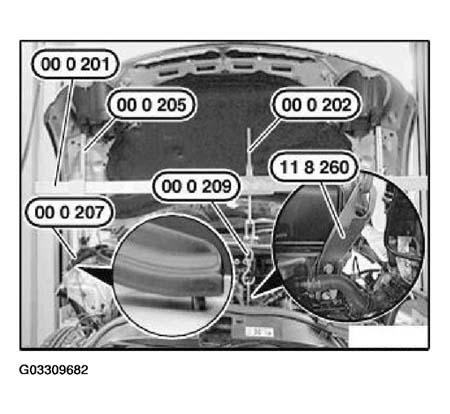

Fig 4: Installing Special Tools

G03309682

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Remove plug before fitting special tool.
Risk of damage on both side walls.

Assemble engine.
